Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 2 PNC and OE references.

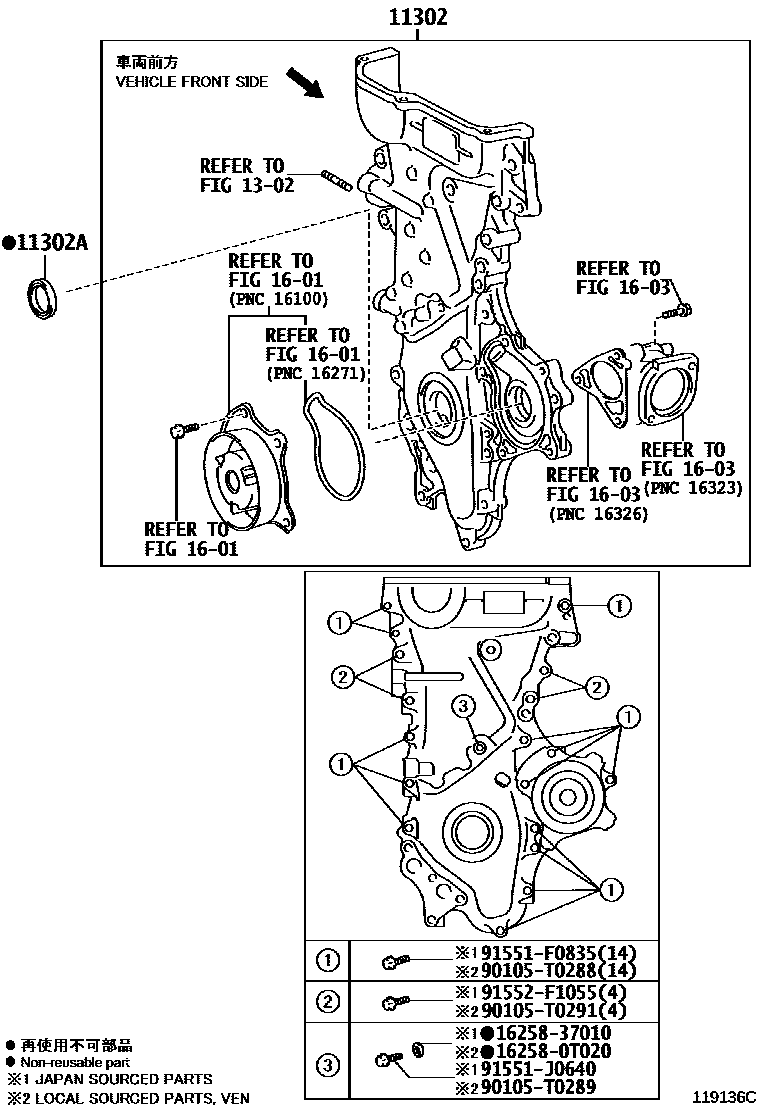

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 119136C
Timing Gear Cover & Rear End Plate — 119136C (201403 – 999999)

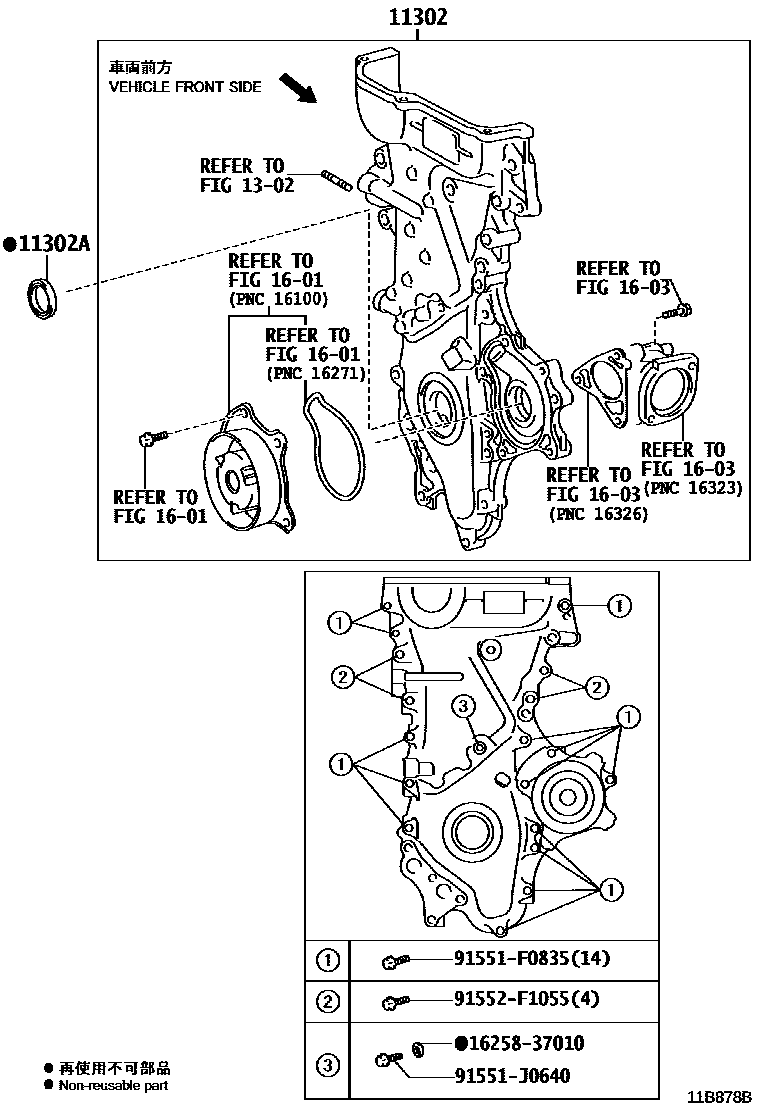

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11B878B
Timing Gear Cover & Rear End Plate — 11B878B (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-37011 · 11310-37032
11302AOil seal (for timing chain or timing belt cover)90311-38089 · 90311-38096 · 90311-T0048
