Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

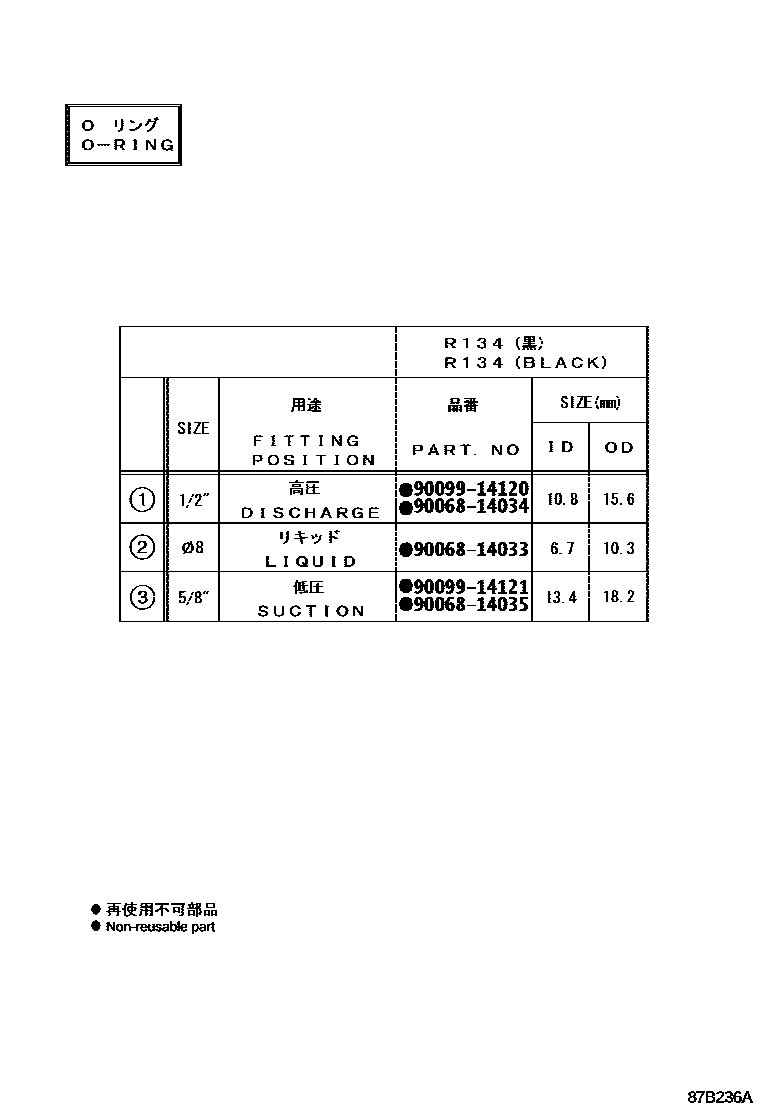

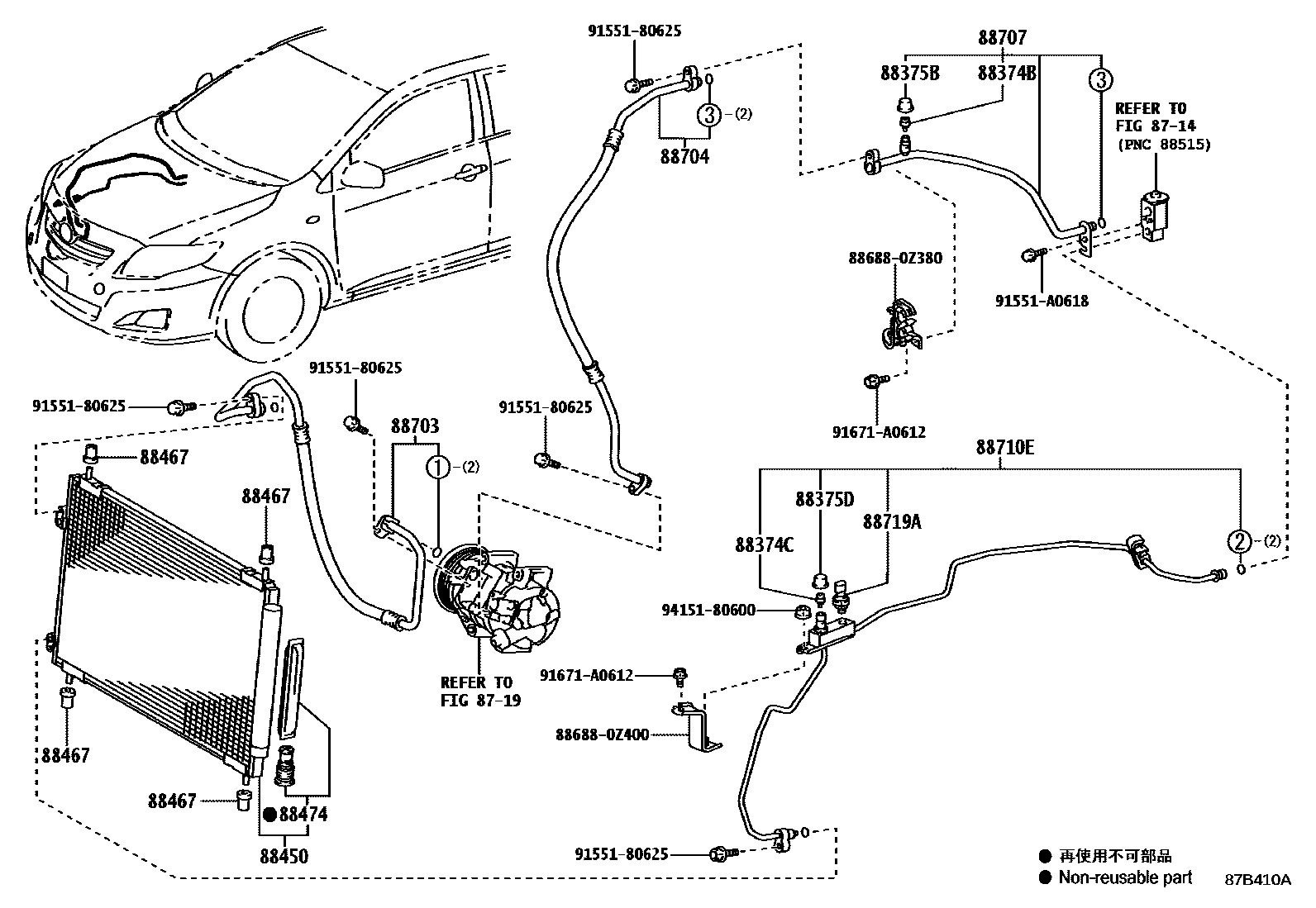

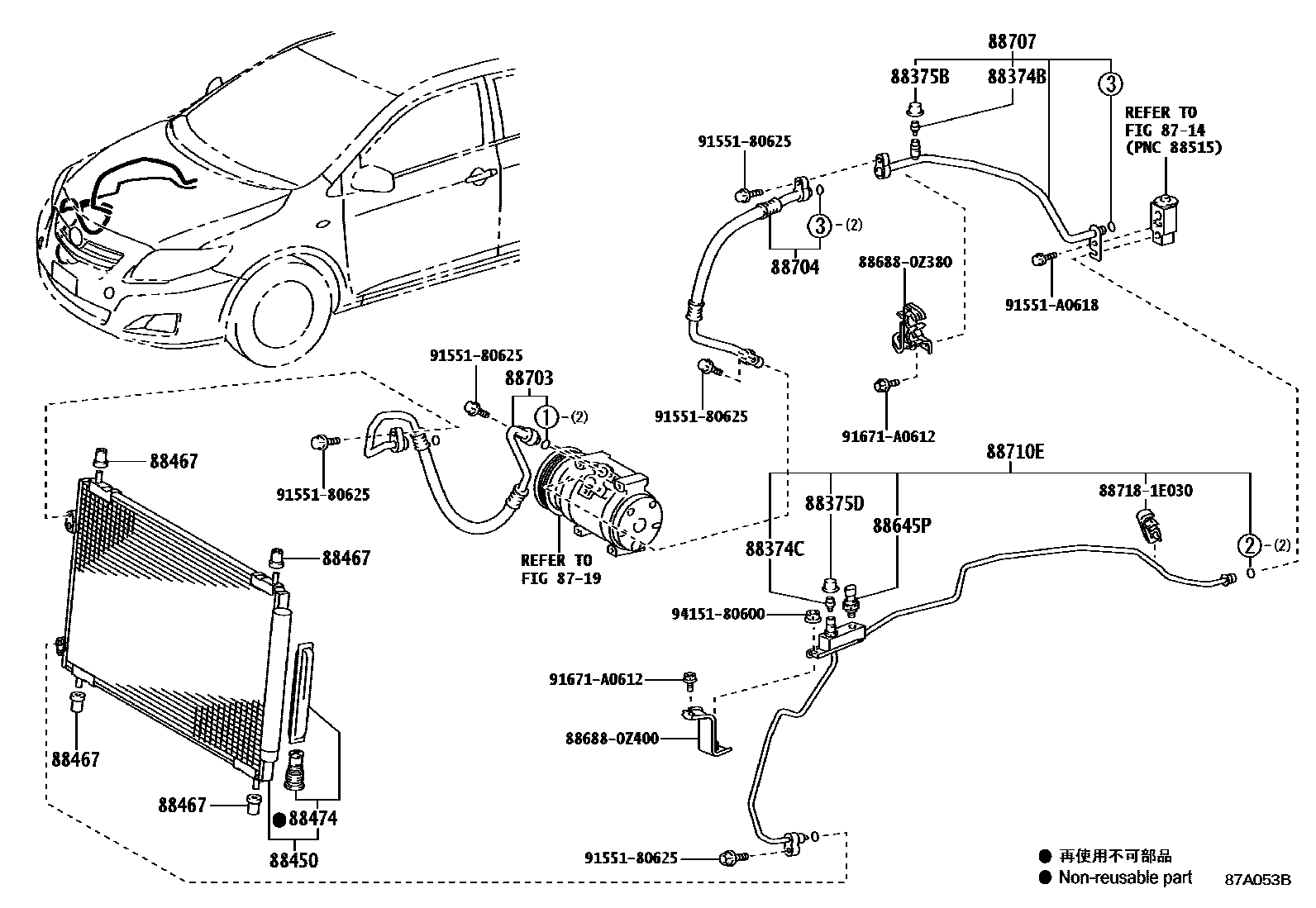

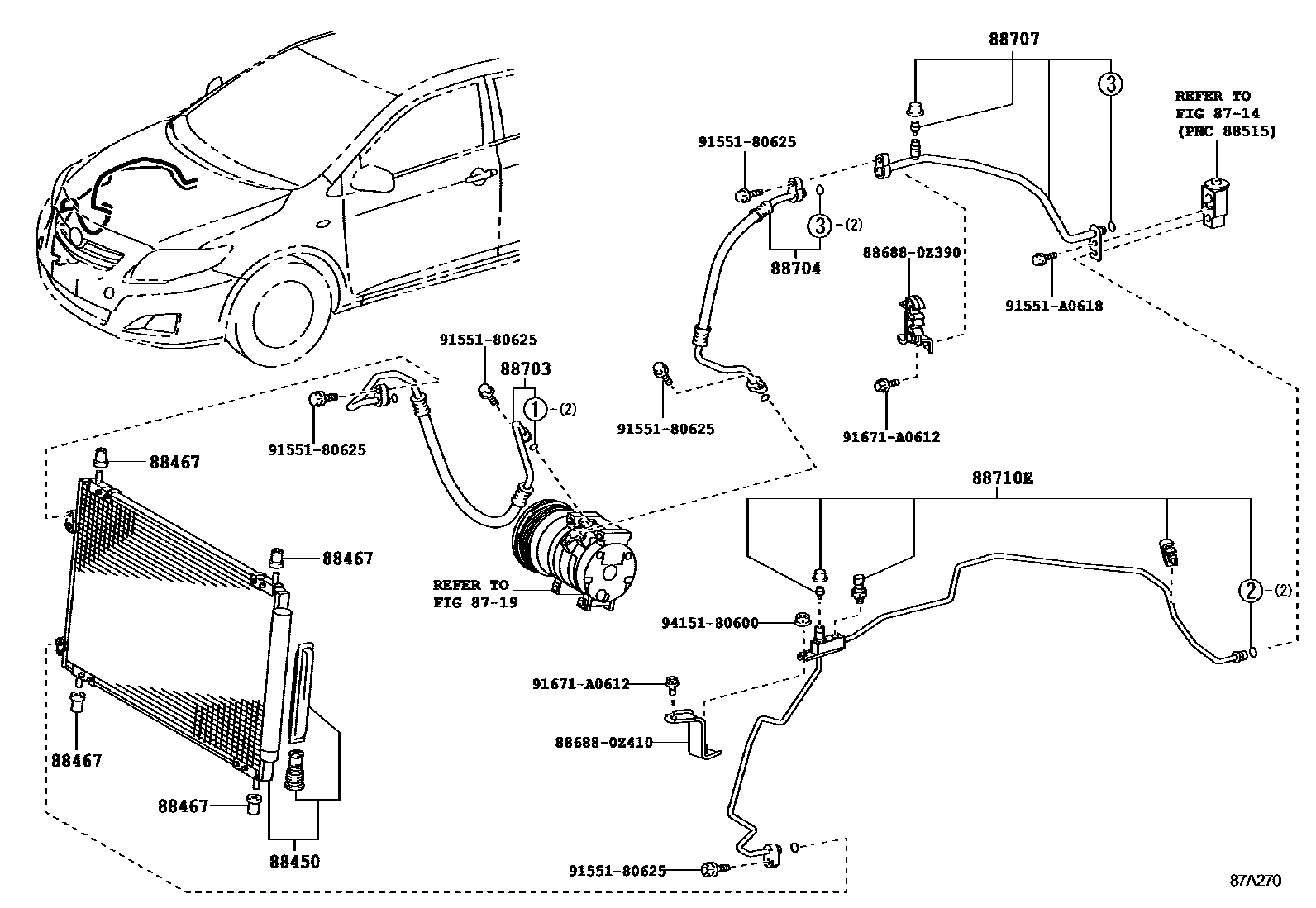

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02010 |
| 88374C | Service valve No. 2 | 88374-02010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02390 · 88450-02400 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 |
| 88645P | No. 3 pressure switch | 88645-60030 |
| 88703 | Discharge hose sub-assembly | 88703-02550 · 88703-02560 · 88703-02680 · 88703-02760 |
| 88704 | Oil suction hose sub-assembly | 88704-02800 · 88704-02810 · 88704-0Z050 · 88704-0Z120 |
| 88707 | Suction pipe sub-assembly | 88707-02130 · 88707-02140 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0Z120 · 88710-0Z130 · 88710-0Z250 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
