Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.

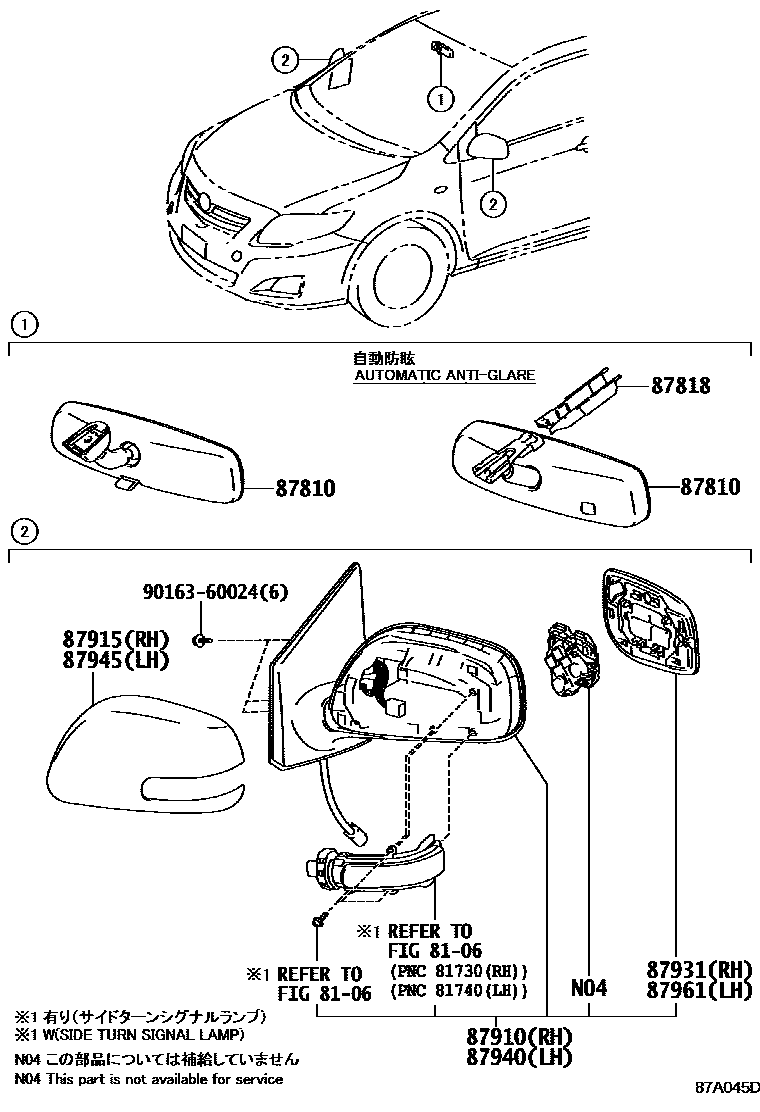

Toyota COROLLA 后视镜 EPC diagram — 87A045D
后视镜 — 87A045D (200803 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02110 · 87810-02111 · 87810-02120 · 87810-02160
87818Interior rearview mirror cover87818-0W060 · 87818-33010
87910Right exterior rearview mirror assembly87910-02A80 · 87910-02A90 · 87910-02B10
87915Right exterior rearview mirror cover87915-02915 · 87915-02916
87931Right exterior rearview mirror87931-02A80 · 87931-02B10
87940Left exterior rearview mirror assembly87940-02A60 · 87940-02A70 · 87940-02B00
87945Left exterior rearview mirror cap87945-02915 · 87945-02916
87961Left exterior rearview mirror87961-02A60 · 87961-02B00
