Toyota COROLLA 车载电话和呼救装置 — Figure 8615

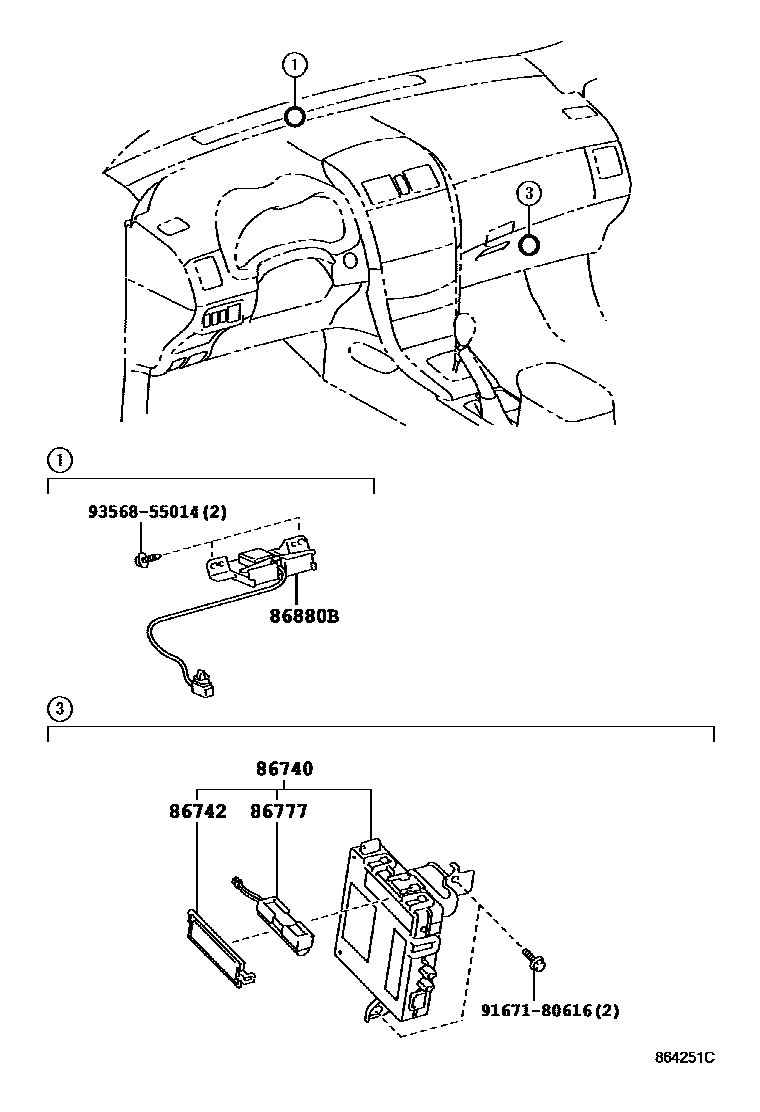

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86740 | Telephone transceiver assembly | 86740-02010 · 86740-02040 |
| 86742 | transceiver cover | 86742-02020 · 86742-0D010 |
| 86777 | Distress signal battery | 86777-02010 |
| 86880B | Instrument panel integrated antenna assembly | 86880-02010 |
