Toyota COROLLA antenna — Figure 8604

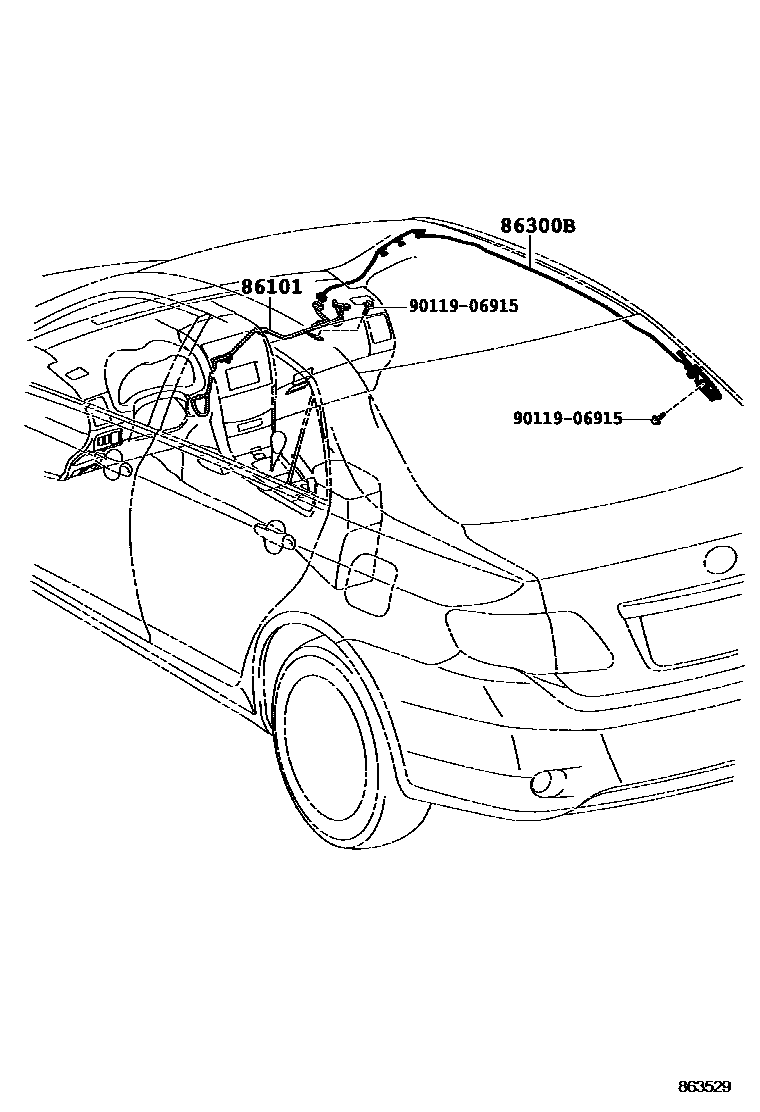

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12540 · 86101-12610 · 86101-12890 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02260 · 86300-02280 |
