Toyota COROLLA 前大灯清洗器 — Figure 8505

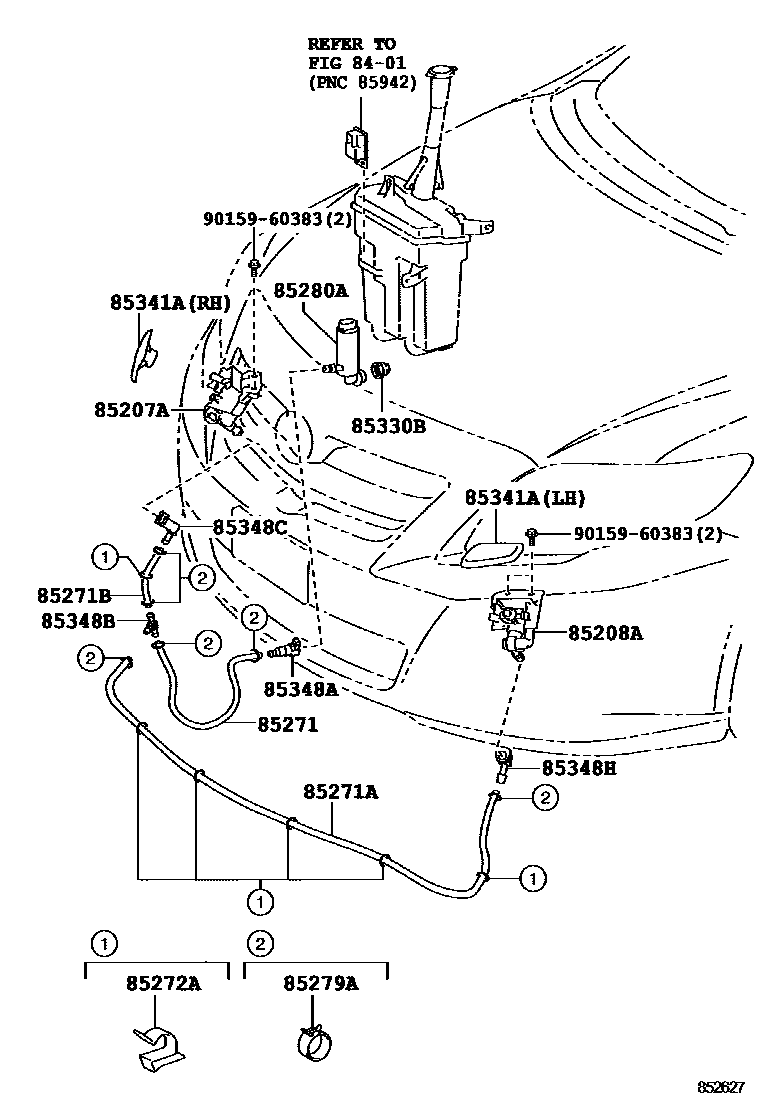

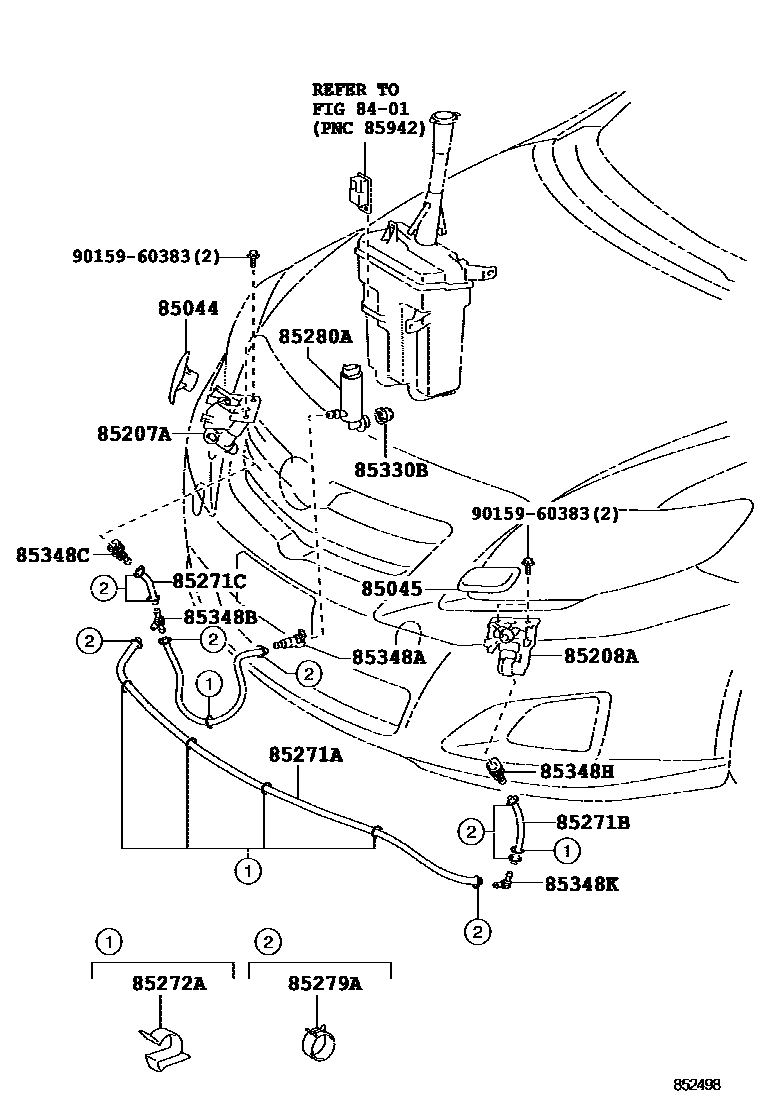

Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-02060 · 85207-02061 · 85207-02110 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-02060 · 85208-02061 · 85208-02110 |
| 85271 | No. 1 headlight washer hose | 85277-05040 |
| 85271A | No. 2 headlight washer hose | 85275-02130 · 85276-02050 |
| 85271B | No. 3 headlight washer hose | 85275-0W010 · 85276-02130 |
| 85271C | No. 4 headlight washer hose | 85277-05040 |
| 85272A | Headlight washer No. 1 clip | 85272-05021 |
| 85279A | Headlight washer hose connector | 85279-05040 |
| 85280A | Headlight washer motor and pump assembly | 85280-05031 |
| 85330B | Headlight washer washer fluid tank bushing | 90069-20005 |
| 85348A | Headlight washer hose connector No. 1 | 85285-05040 |
| 85348B | No. 2 headlight washer hose connector | 85288-05080 |
| 85348C | No. 3 headlight washer hose connector | 85286-02060 · 85287-02070 |
| 85348H | No. 4 headlight washer hose connector | 85286-02060 · 85287-02070 |
| 85348K | No. 1 headlight washer elbow joint | 85278-02050 |
