Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

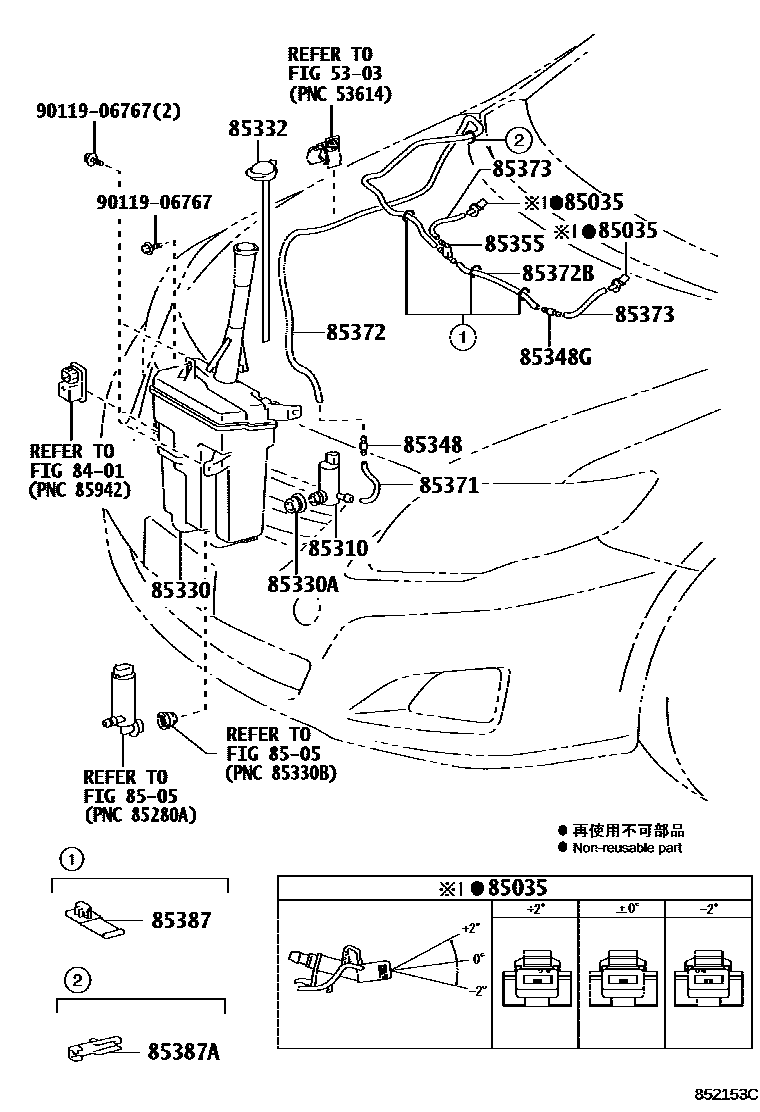

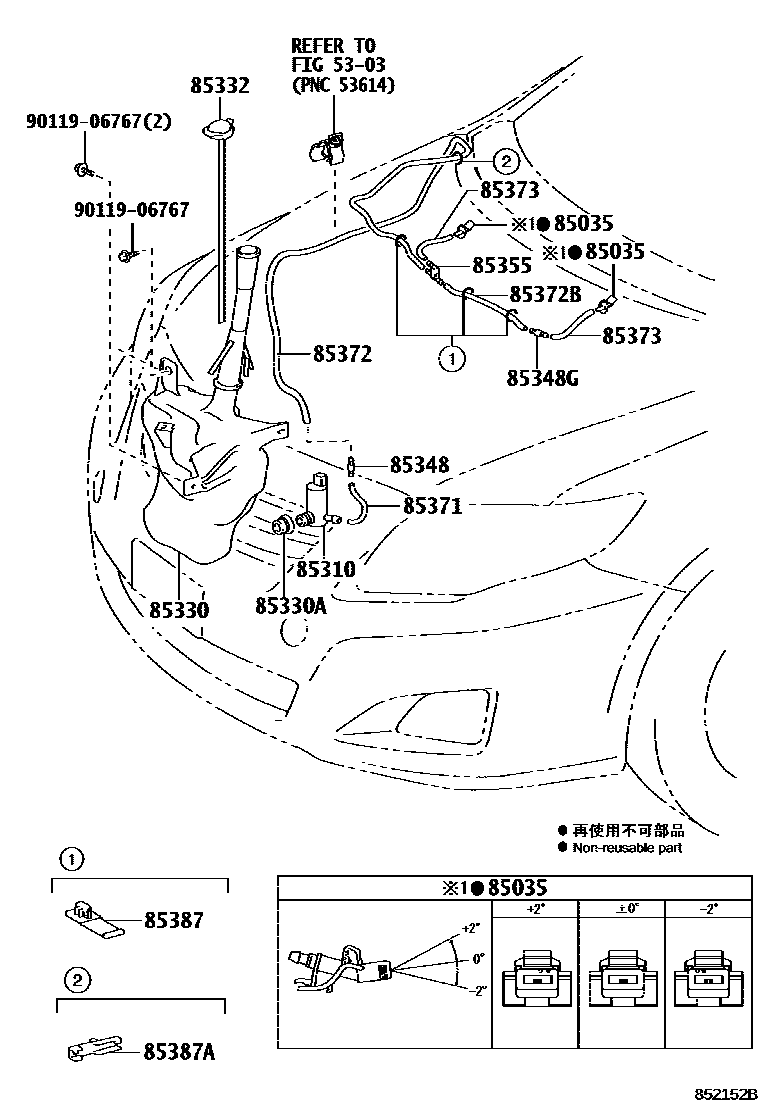

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12300 · 85381-12310 · 85381-12320 |
| 85310 | Windshield washer motor and pump assembly | 85330-02030 · 85330-02060 |
| 85330 | Windshield washer fluid tank assembly | 85315-02370 · 85355-02100 |
| 85330A | Windshield washer fluid tank bushing | 85336-02370 · 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-02370 · 85356-02100 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 |
| 85348G | Windshield washer hose connector No. 2 | 85375-05050 |
| 85355 | Windshield washer hose valve | 85376-02350 |
| 85371 | Windshield washer hose (from motor to connector) | 85374-0W010 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-0W010 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46048 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-3A540 |
| 85387A | Cleaner clip No. 2 | 85387-02350 |
