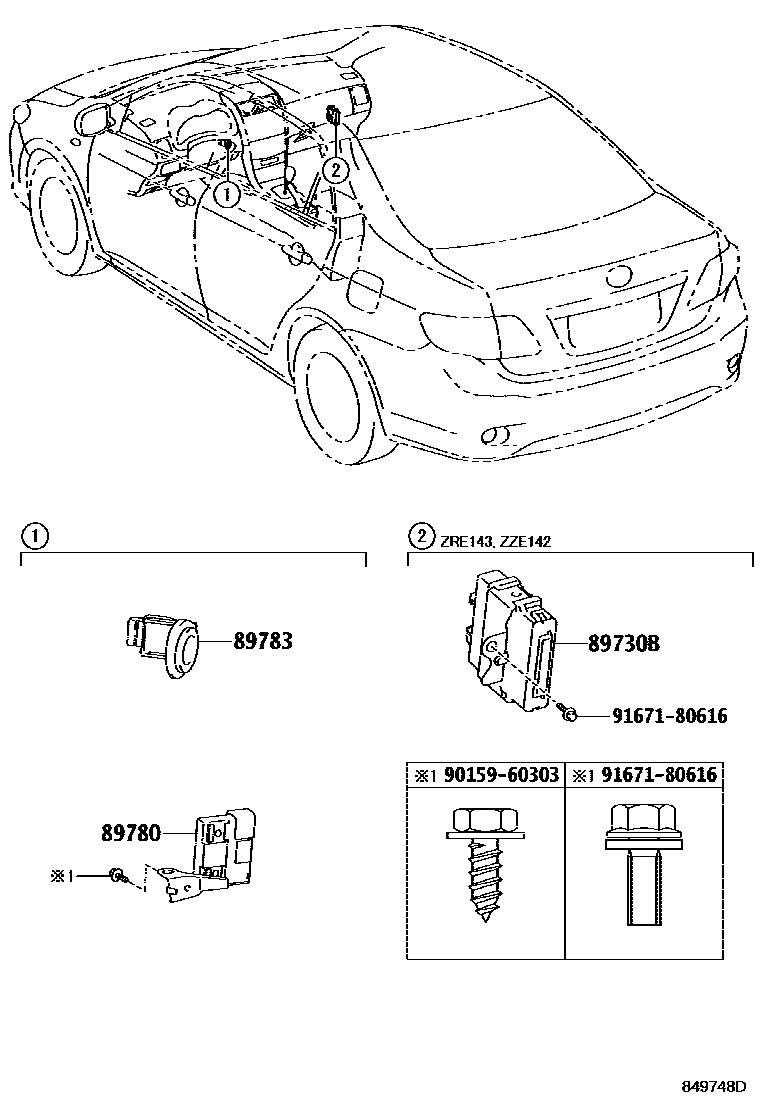

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89730B | Anti-theft warning ECU assembly | 89730-02130 |
| 89780 | Transceiver key ECU assembly | 89780-02120 · 89780-12330 |
| 89783 | transceiver key amplifier | 89783-02090 · 89783-12111 · 89783-12112 · 89783-12113 |
