Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 3 PNC and OE references.

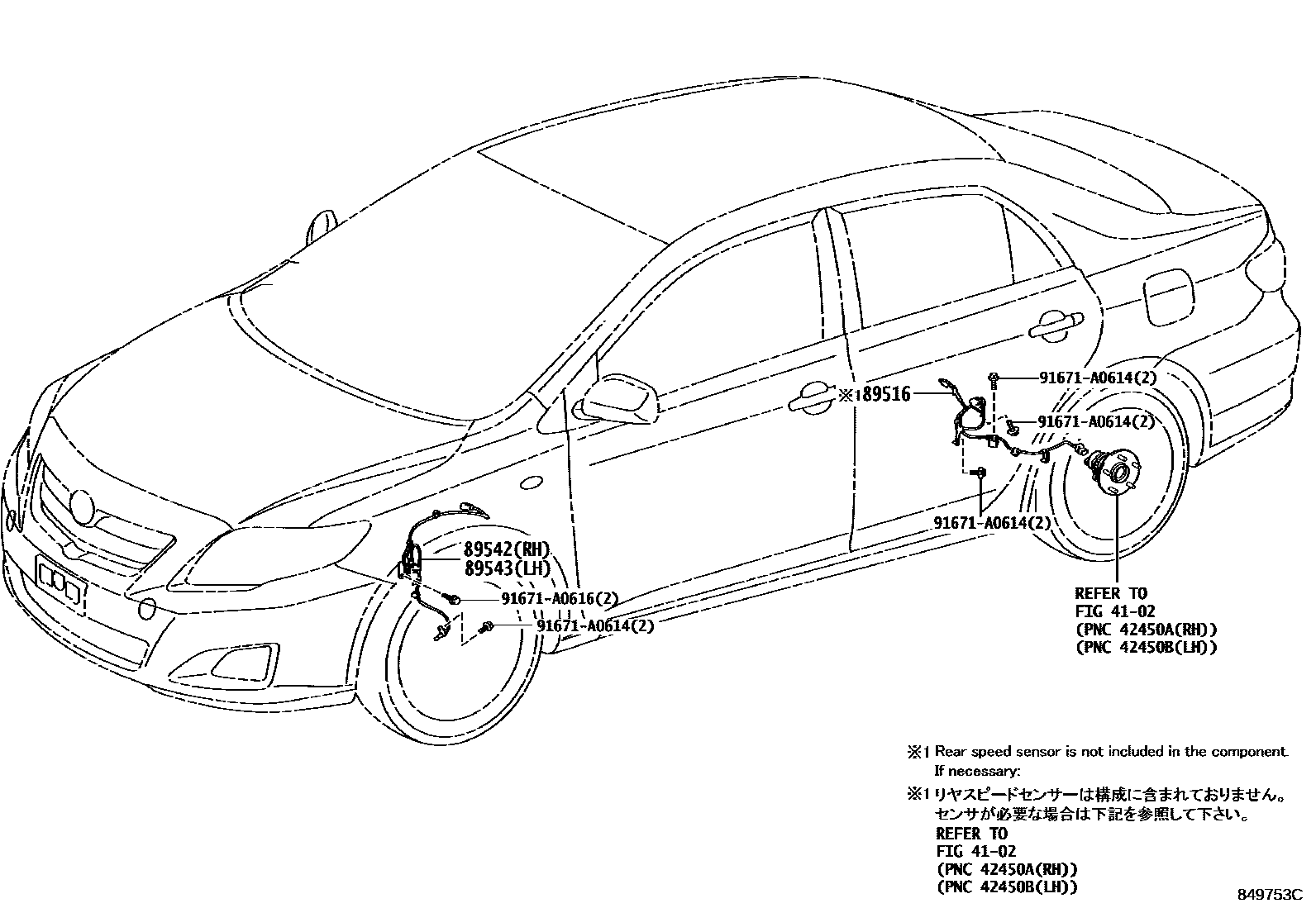

Toyota COROLLA ABS 和 VSC EPC diagram — 849753C
ABS 和 VSC — 849753C (200803 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516Anti-skid control sensor wiring harness89516-02210 · 89516-02220
89542Right front wheel speed sensor89542-02110
89543Left front wheel speed sensor89543-02110
