Toyota COROLLA 后组合灯 — Figure 8111

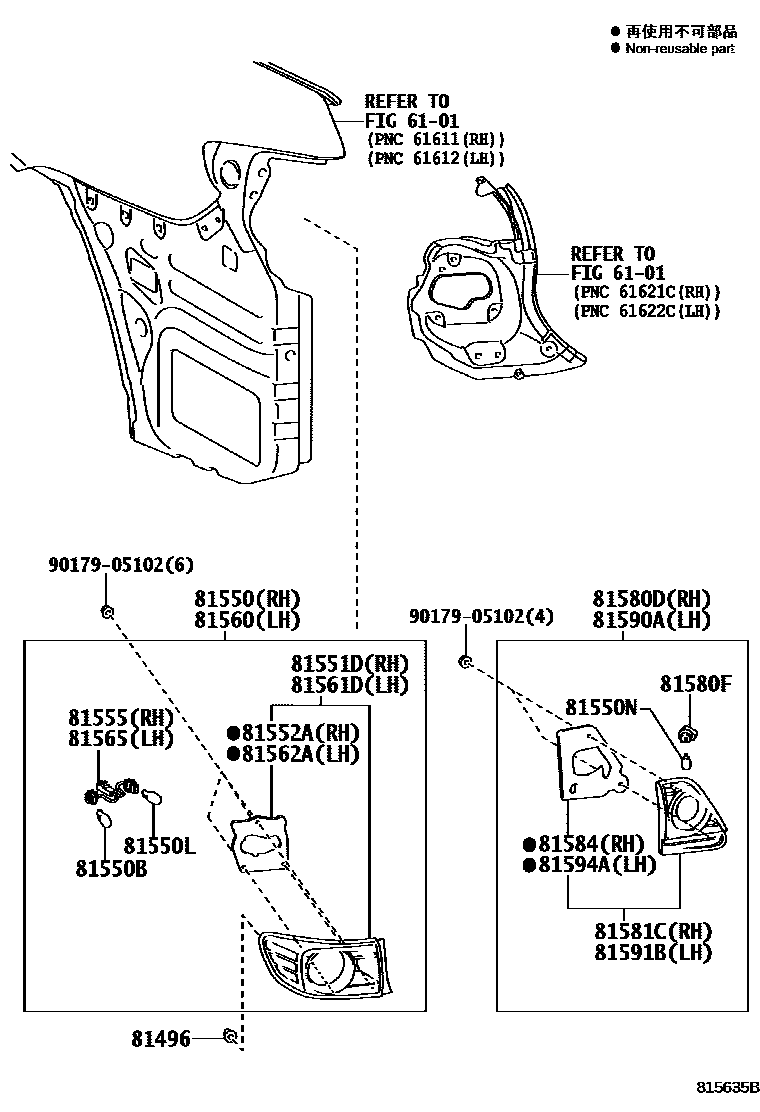

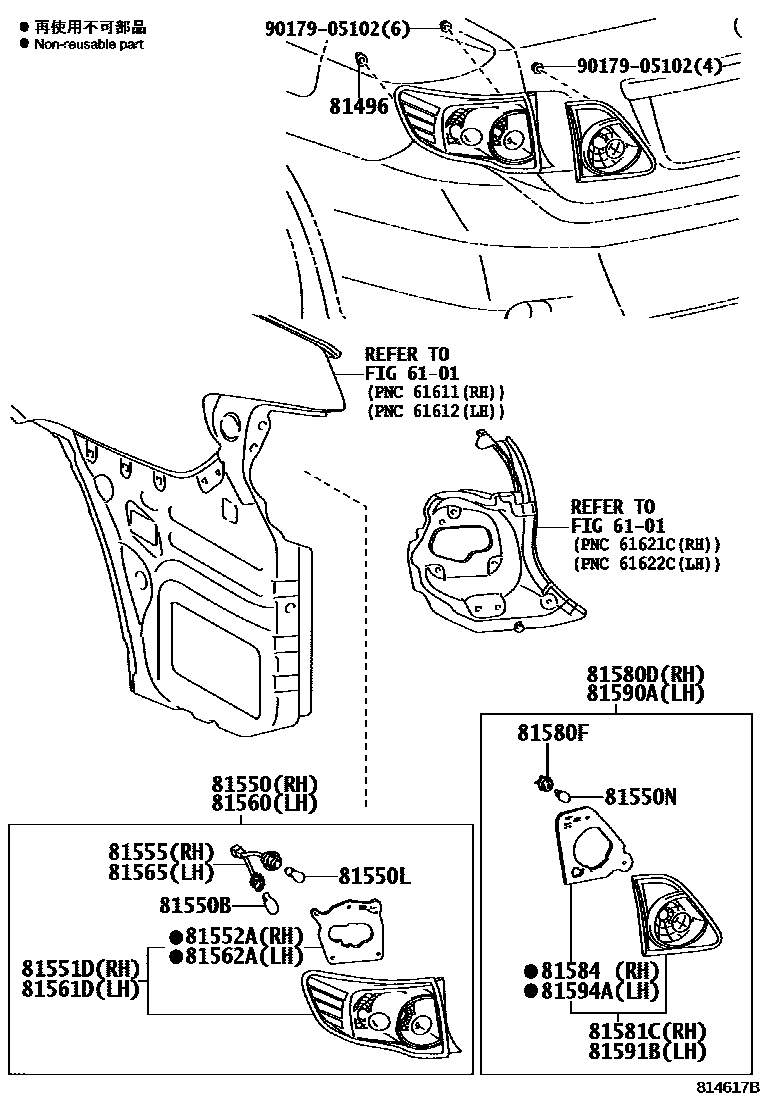

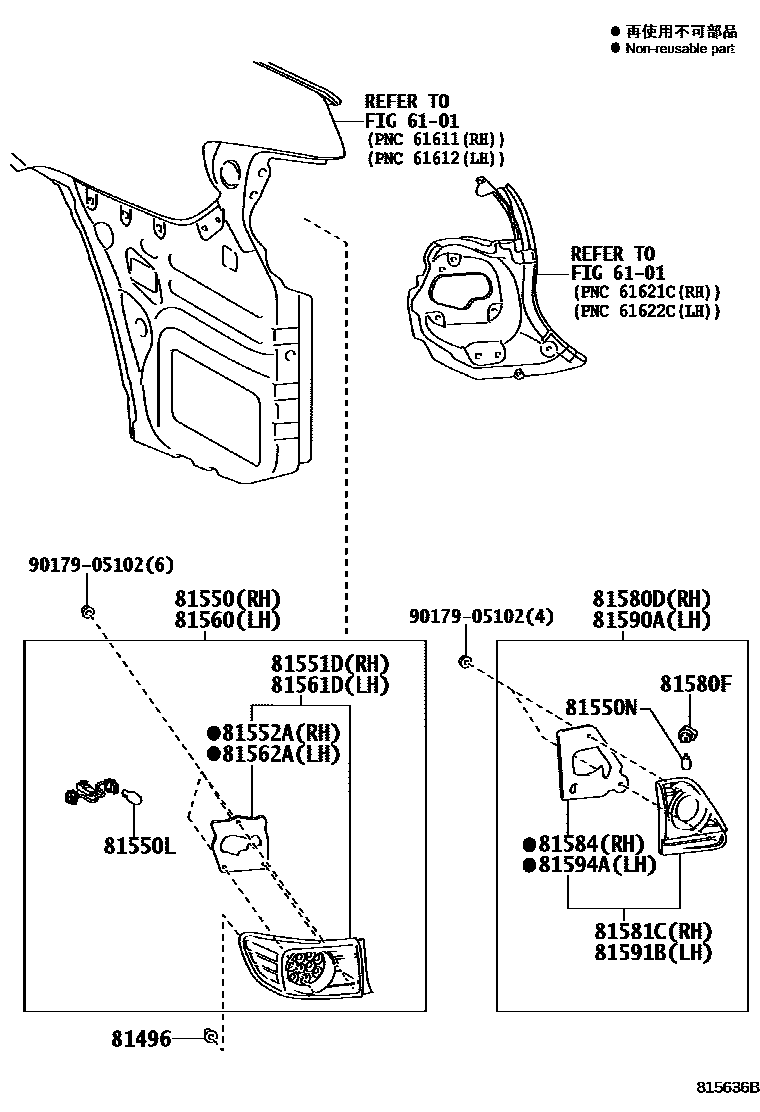

Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81550 | Right rear combination light assembly | 81550-02350 · 81550-02630 · 81550-02660 |
| 81550B | Bulb (for rear combination lights) | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 · 99132-11210 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02350 · 81551-02630 · 81551-02660 |
| 81552A | Right rear combination light gasket | 81552-02350 · 81552-02630 · 81552-02660 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02350 · 81555-02660 |
| 81560 | Left rear combination light assembly | 81560-02350 · 81560-02630 · 81560-02660 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02350 · 81561-02630 · 81561-02660 |
| 81562A | Left rear combination light gasket | 81552-02350 · 81552-02630 · 81552-02660 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02350 · 81555-02660 |
| 81580D | Right rear light assembly | 81580-02230 · 81580-02380 |
| 81580F | Rear light lamp holder plug | 90075-99005 |
| 81581C | Right rear light lampshade and lamp body | 81581-02230 · 81581-02380 |
| 81584 | Right rear light seal | 81552-02230 · 81584-02380 |
| 81590A | Left rear light assembly | 81590-02220 · 81590-02380 |
| 81591B | Left rear light shade and body | 81591-02220 · 81591-02380 |
| 81594A | Left rear light gasket | 81562-02220 · 81594-02380 |
