Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 3 PNC and OE references.

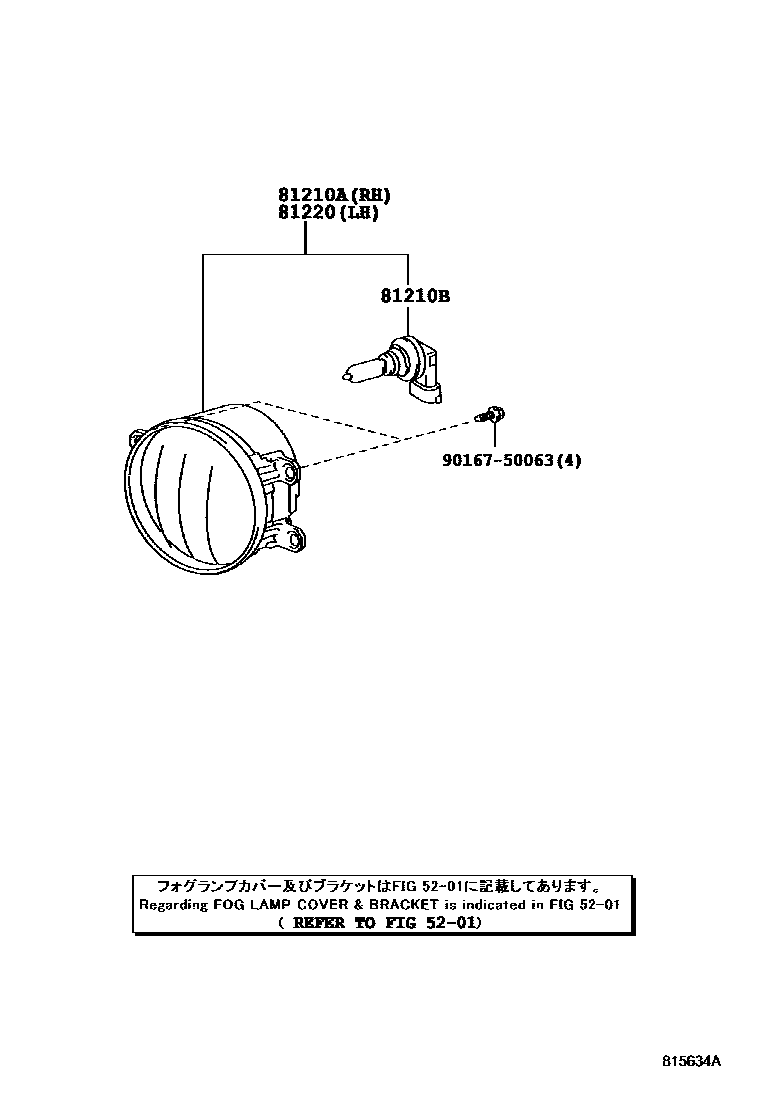

Toyota COROLLA Fog Lamp EPC diagram — 815634A
Fog Lamp — 815634A (200803 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-02120 · 81210-02121
81210Bfog light bulb90981-13075 · 90981-13081
81220Left fog light assembly81220-02120 · 81220-02121
