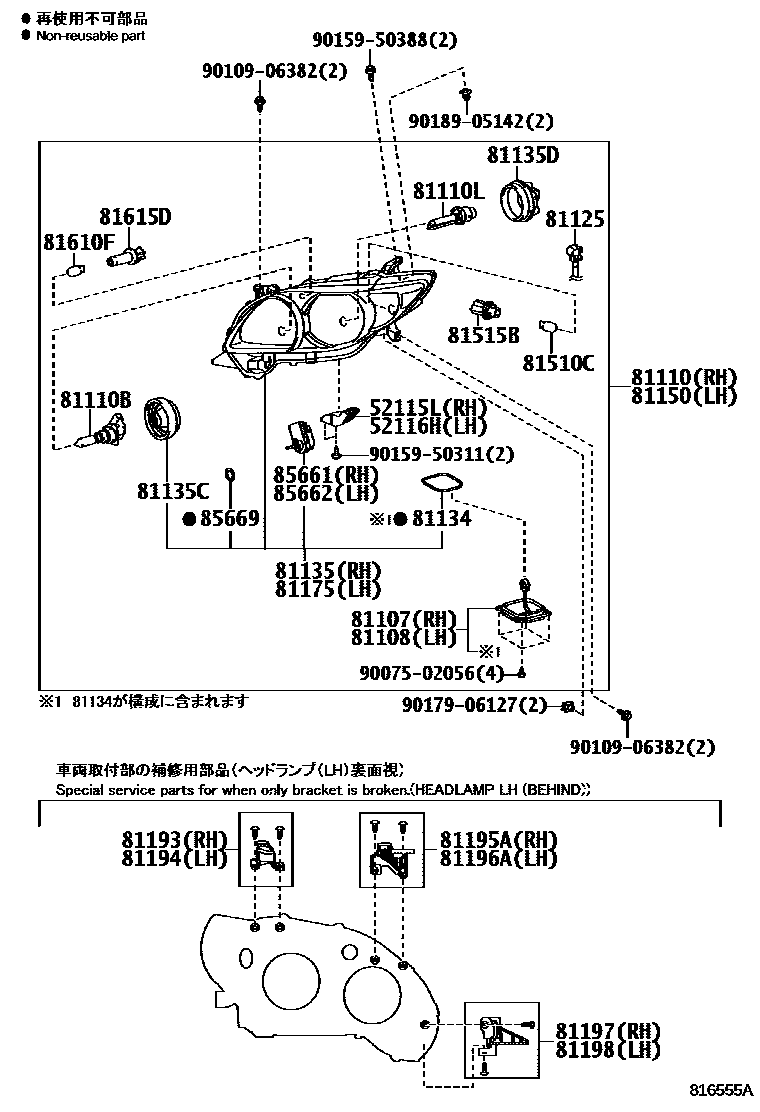

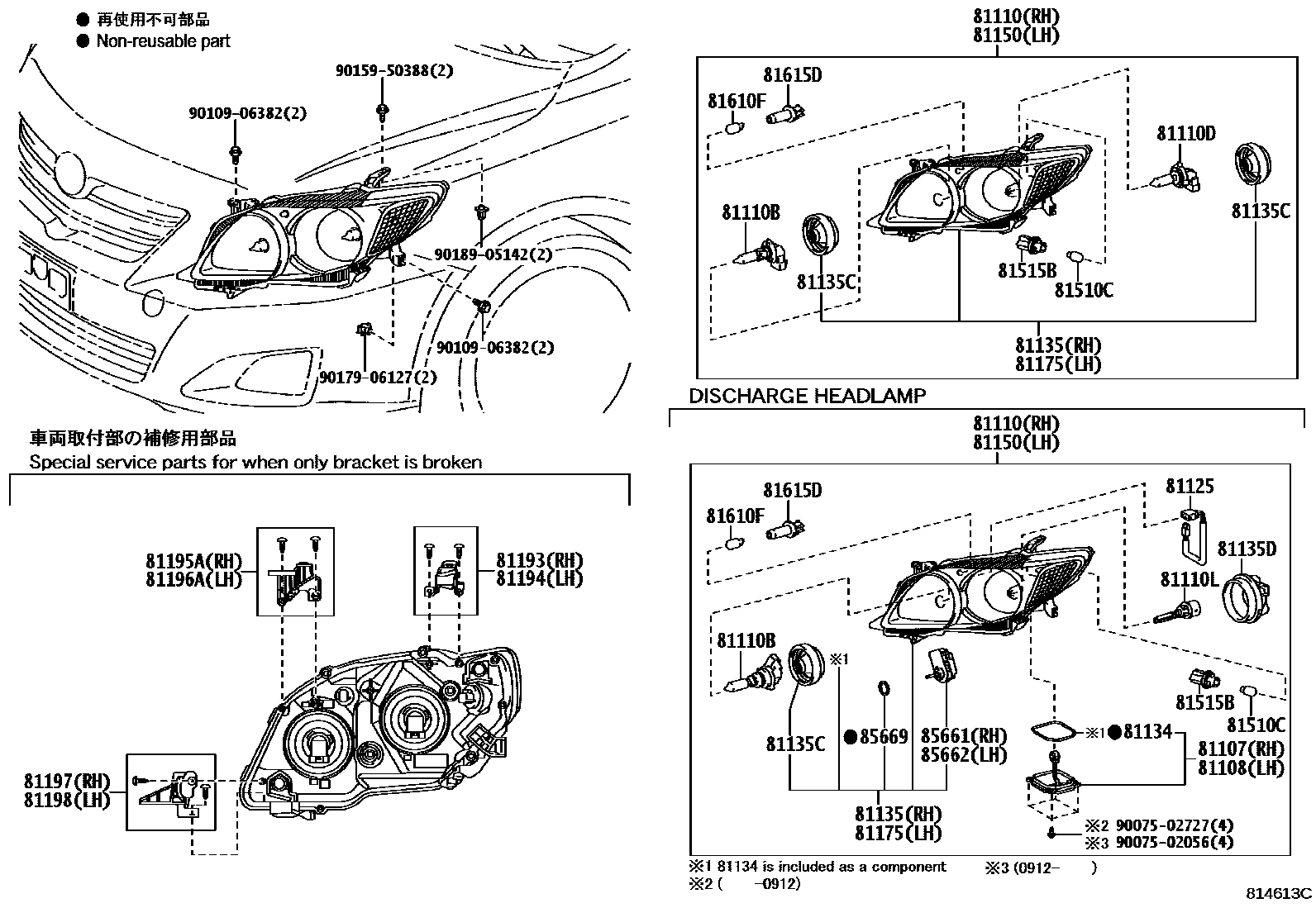

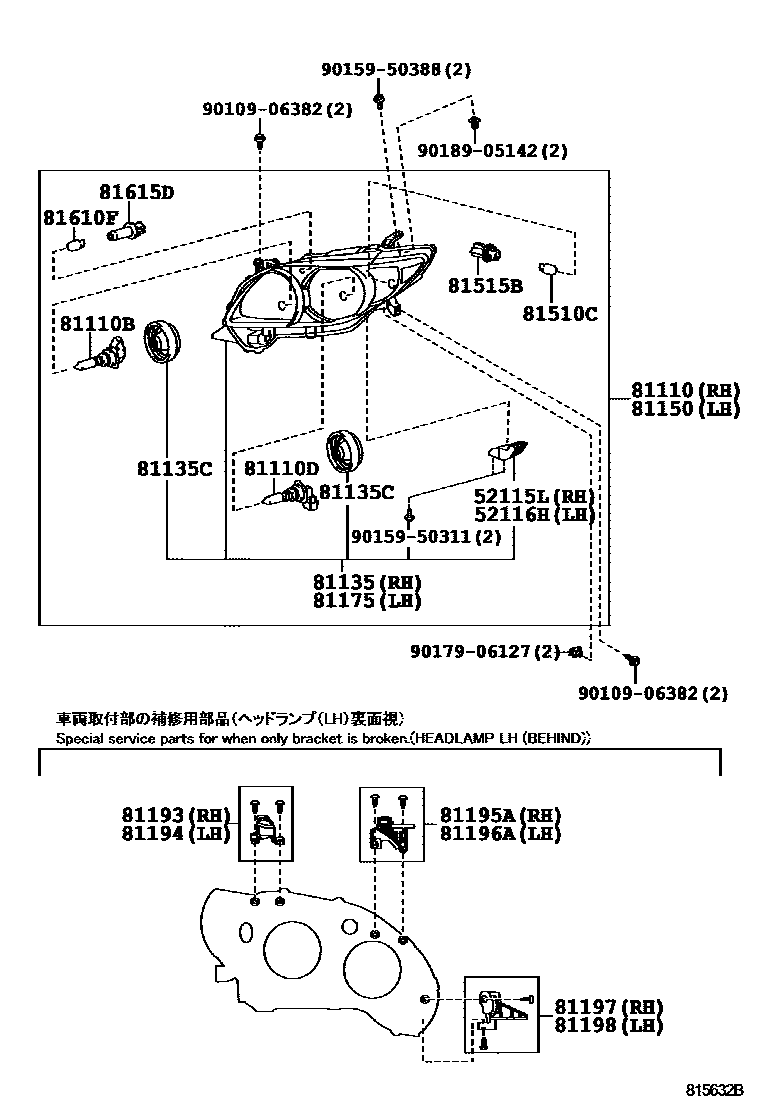

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52115L | Front bumper right side bracket | 52115-02320 · 52115-12490 |
| 52116H | Front bumper left bracket | 52116-02320 · 52116-12450 |
| 81107 | Right headlight control ECU sub-assembly | 81107-12A80 · 81107-12A81 |
| 81108 | Left headlight control ECU sub-assembly | 81107-12A80 · 81107-12A81 |
| 81110 | Right headlight assembly | 81110-02740 · 81110-02800 · 81110-02870 · 81110-12C40 · 81110-12F60 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 |
| 81110L | Discharge headlight bulb | 90981-20015 · 90981-20029 |
| 81125 | headlight wire | 81125-12A90 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly assembly | 81130-02740 · 81130-02800 · 81130-02870 · 81145-12C40 · 81145-12F60 |
| 81135C | No. 1 headlight rear cover | 90075-65006 · 90075-65021 |
| 81135D | No. 2 headlight rear cover | 90075-66003 |
| 81150 | Left headlight assembly | 81150-02740 · 81150-02800 · 81150-02870 · 81150-12C40 · 81150-12F60 |
| 81175 | Left headlight assembly assembly | 81170-02740 · 81170-02800 · 81170-02870 · 81185-12C40 · 81185-12F60 |
| 81193 | Right headlight upper protective ring | 81193-12050 · 81193-12120 |
| 81194 | Left headlight upper protective ring | 81194-12050 · 81194-12110 |
| 81195A | Right headlight lower protection ring | 81195-12060 · 81195-12170 |
| 81196A | Left headlight lower protection ring | 81196-12060 · 81196-12170 |
| 81197 | Right headlight lower bracket | 81197-12060 · 81197-12110 |
| 81198 | Left headlight lower bracket | 81198-12060 · 81198-12120 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
