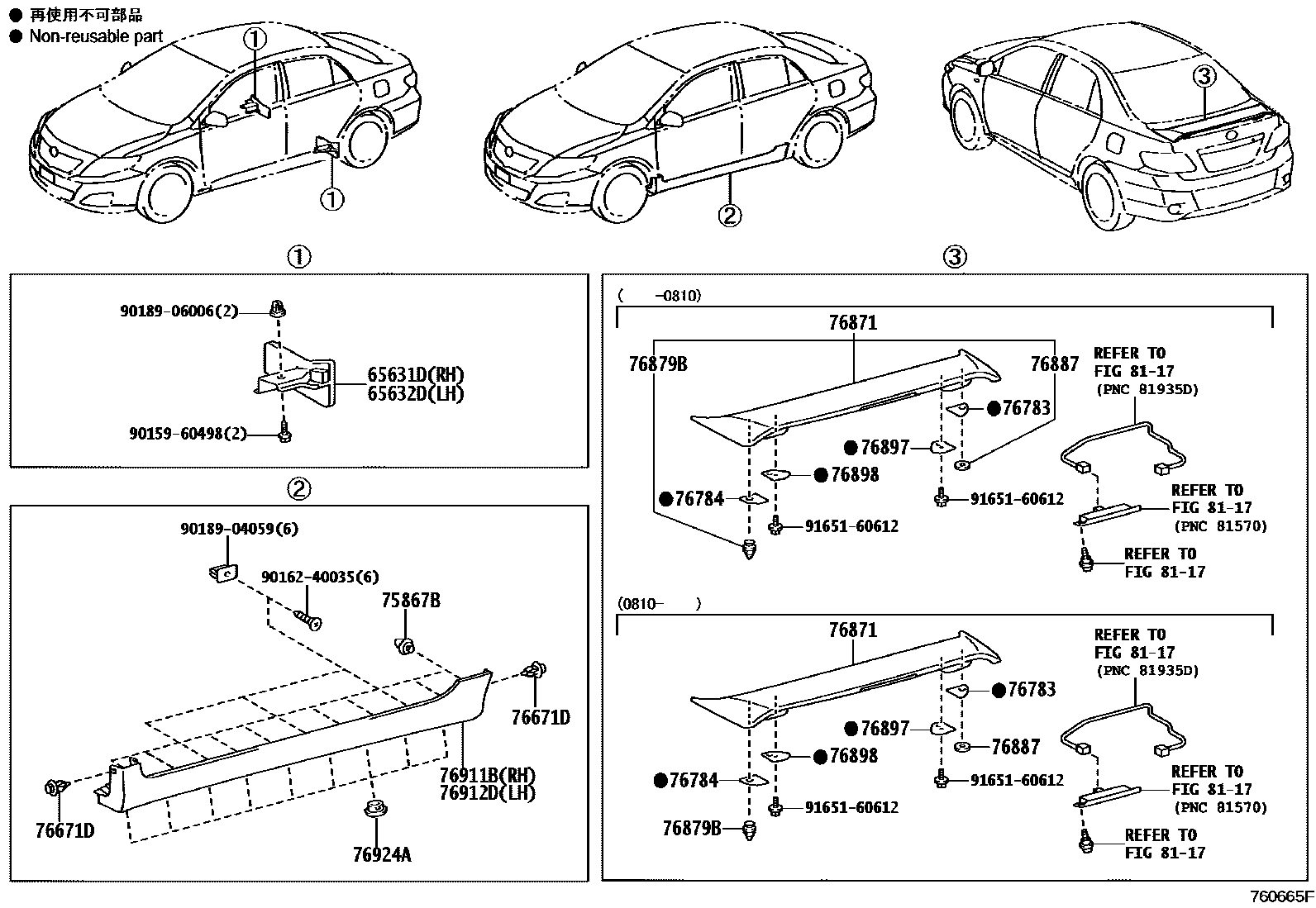

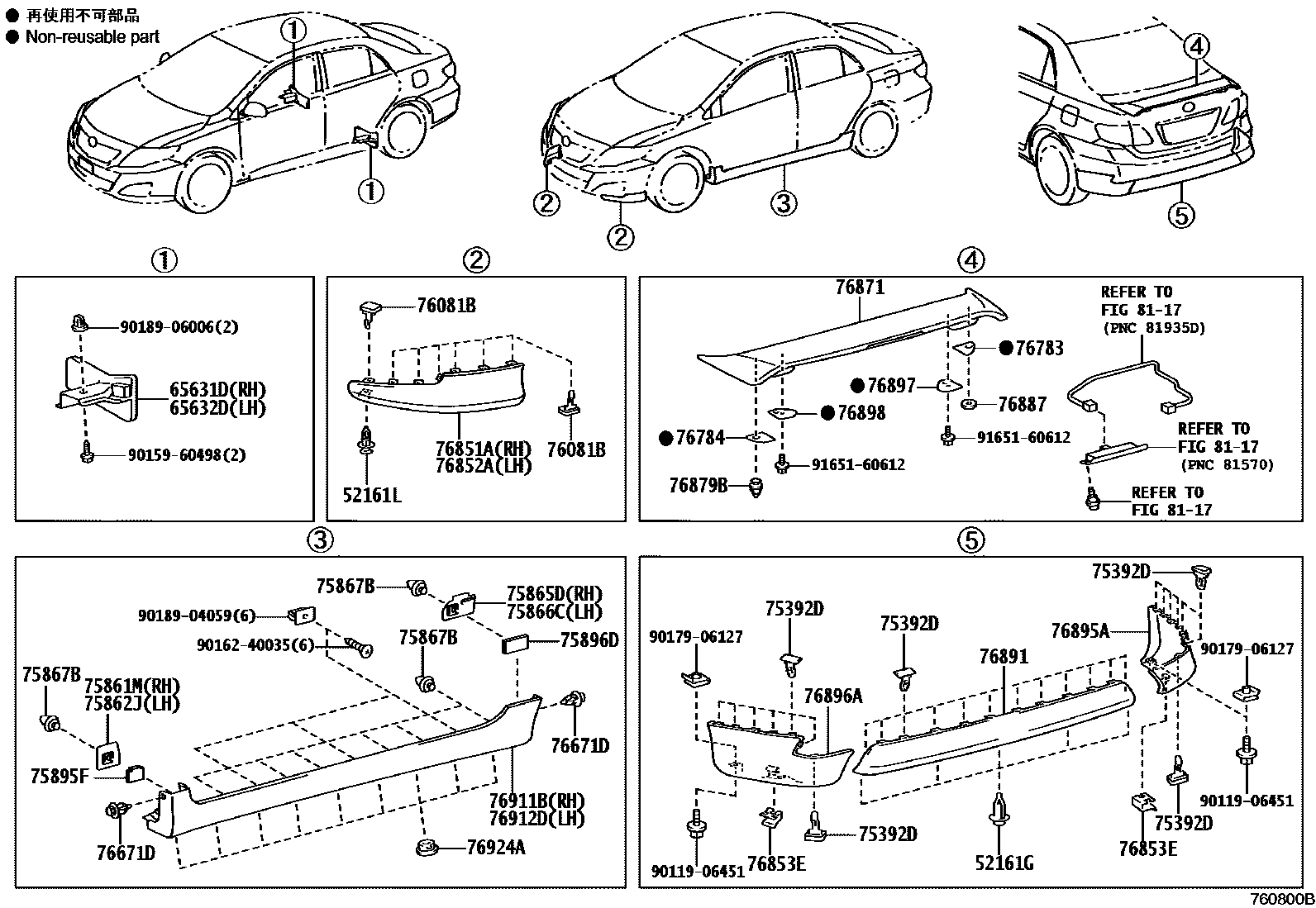

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-16010 |
| 52161L | front spoiler insert | 52161-16010 |
| 65631D | Right rear wheel house front panel | 65631-12060 |
| 65632D | Left rear wheel house front panel | 65632-12060 |
| 75392D | External protective strip fixings | 75392-12070 · 75392-35220 |
| 75861M | Right side door sill panel protective strip fixing | 75861-02030 |
| 75862J | Left side door sill panel protective strip fixing | 75862-02030 |
| 75865D | Right side door sill panel protective strip fixing | 75865-02020 |
| 75866C | Left side door sill panel protective strip fixing | 75866-02020 |
| 75867B | Door sill panel protective strip clip | 75867-12040 |
| 75895F | No. 1 protective strip tape | 75895-02060 |
| 75896D | No. 2 protective strip tape | 75896-02020 |
| 76081B | Front spoiler fixings | 75392-12070 · 75392-12080 |
| 76671D | Side fender clips | 90467-06165 |
| 76783 | Right rear lower spoiler tape | 76783-02060 · 76783-12090 |
| 76784 | Left rear lower spoiler tape | 76784-02060 · 76784-12090 |
| 76851A | Right front spoiler cover | 76851-02907 |
| 76852A | Left front spoiler cover | 76852-02907 |
| 76853E | No. 1 rear spoiler fixing piece | 76854-44010 |
| 76871 | rear spoiler | 76871-12340 · 76871-12914 · 76871-12916 |
| 76879B | No. 2 rear spoiler clip | 76879-12060 |
| 76887 | Rear spoiler seal | 76887-12040 |
| 76891 | No. 1 rear spoiler | 76891-02020 |
| 76895A | Right rear bumper spoiler | 76895-02912 |
| 76896A | Left rear bumper spoiler | 76896-02910 |
| 76897 | Right rear spoiler protection strip | 76897-02060 · 76897-12170 |
| 76898 | Left rear spoiler protection strip | 76898-02060 · 76898-12170 |
| 76911B | right fender | 76911-02915 · 76911-02921 |
| 76912D | left fender | 76912-02915 · 76912-02921 |
| 76924A | No. 2 side fender fixings | 76924-12040 |
