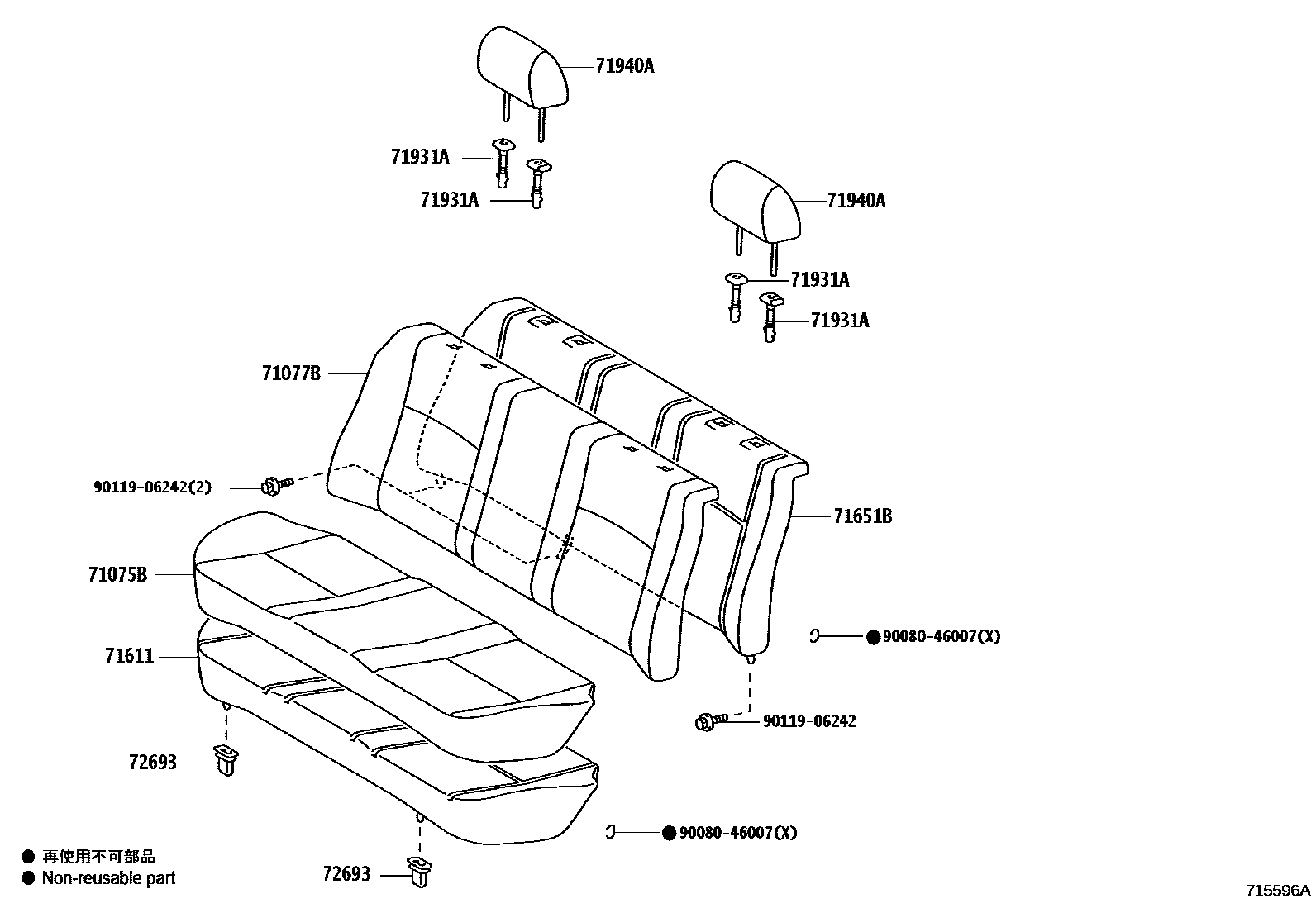

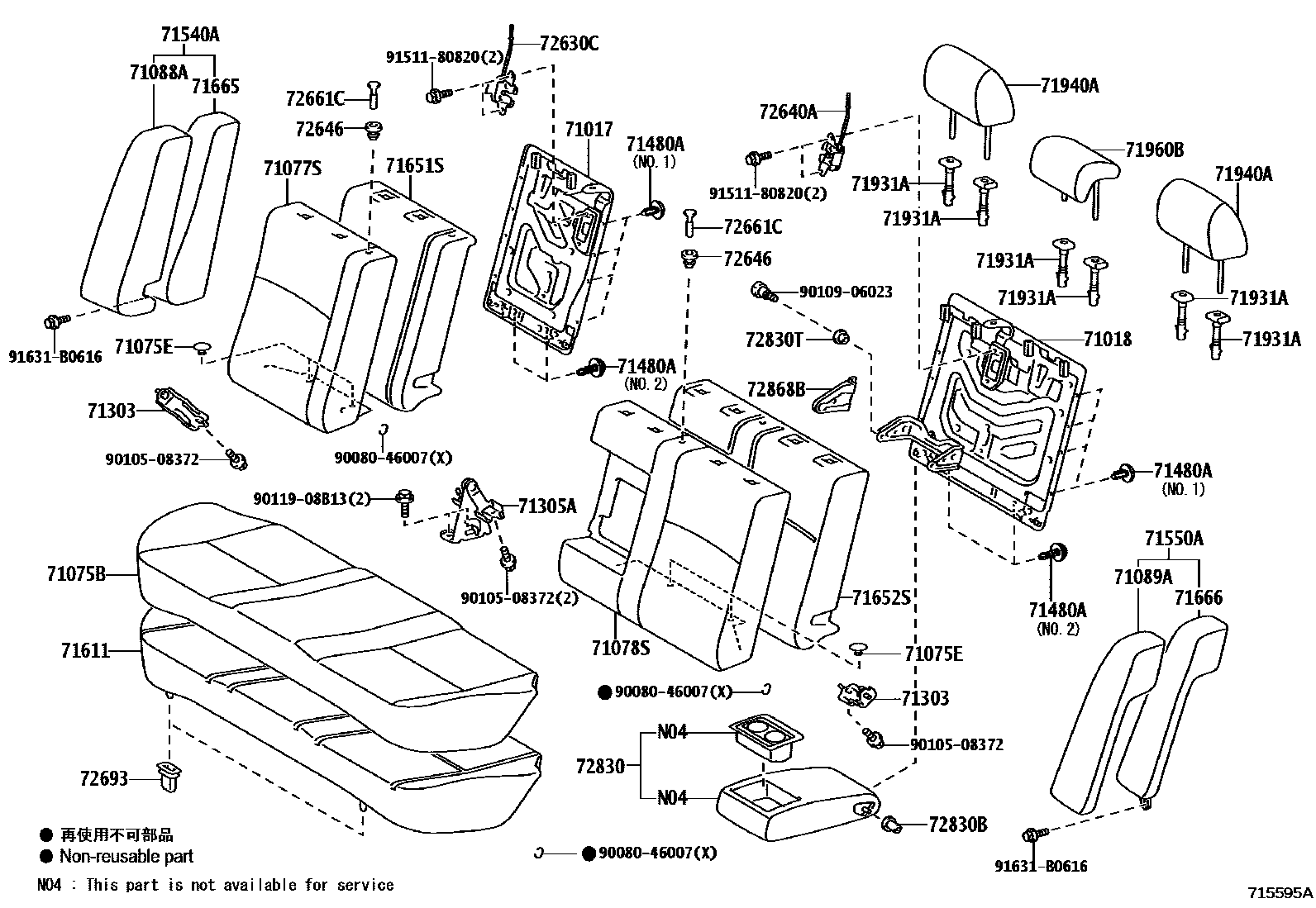

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12530 |
| 71018 | Rear left seat back frame sub-assembly | 71720-02020 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12170 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12210 |
| 71611 | Rear seat cushion cushion | 71503-02210 · 71503-02220 · 71503-02500 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02140 · 71507-02150 · 71507-02370 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02230 · 71651-02440 · 71651-02740 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02160 · 71652-02400 · 71652-02680 |
| 71665 | Rear right seat backrest side cushion | 71665-02080 |
| 71666 | Rear left seat backrest side cushion | 71666-02120 |
| 71960B | Rear center seat headrest assembly | 71960-02751 |
| 72630C | Rear right seat back lock assembly | 72630-47010 |
| 72640A | Rear left seat back lock assembly | 72640-47010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
