Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

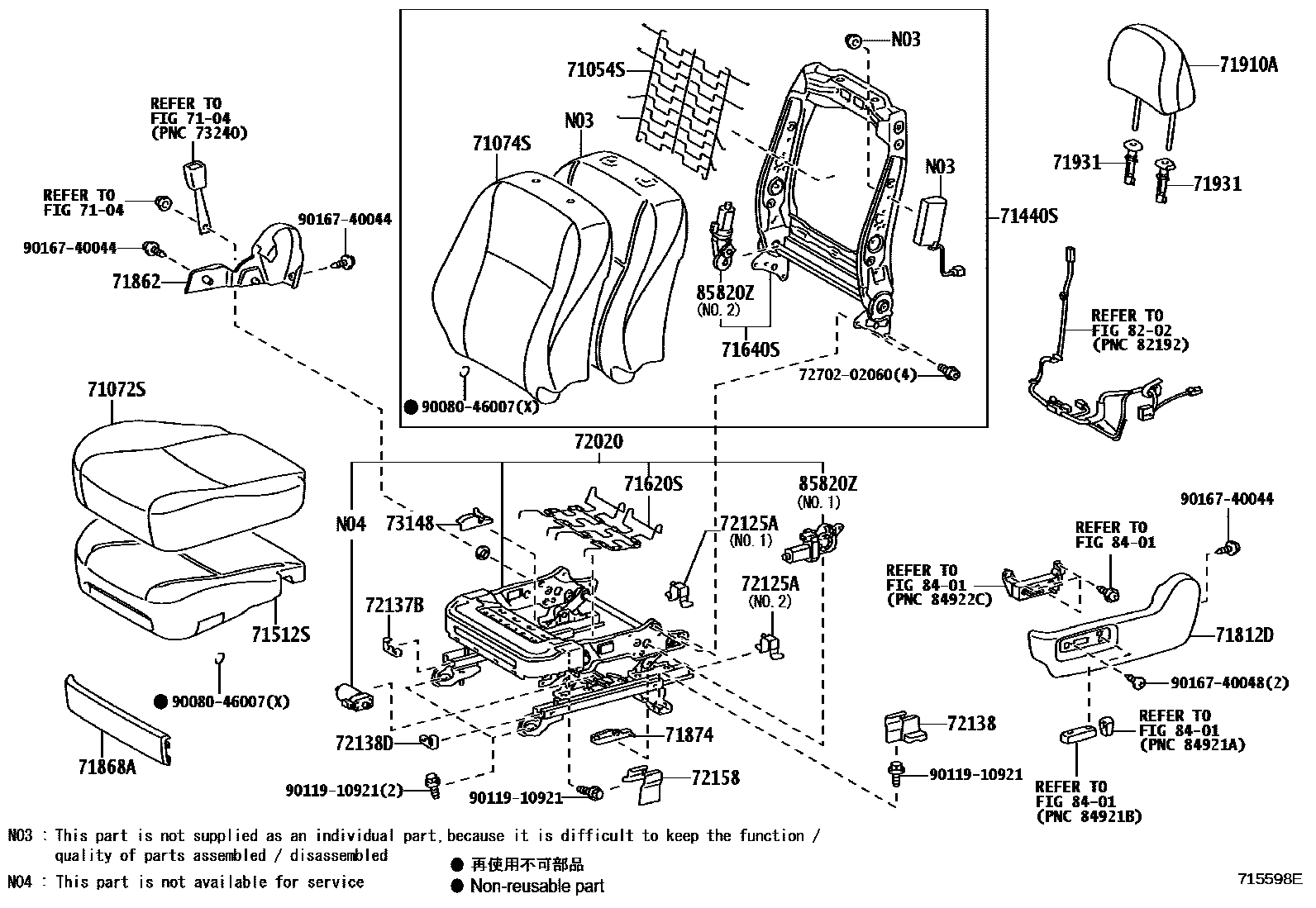

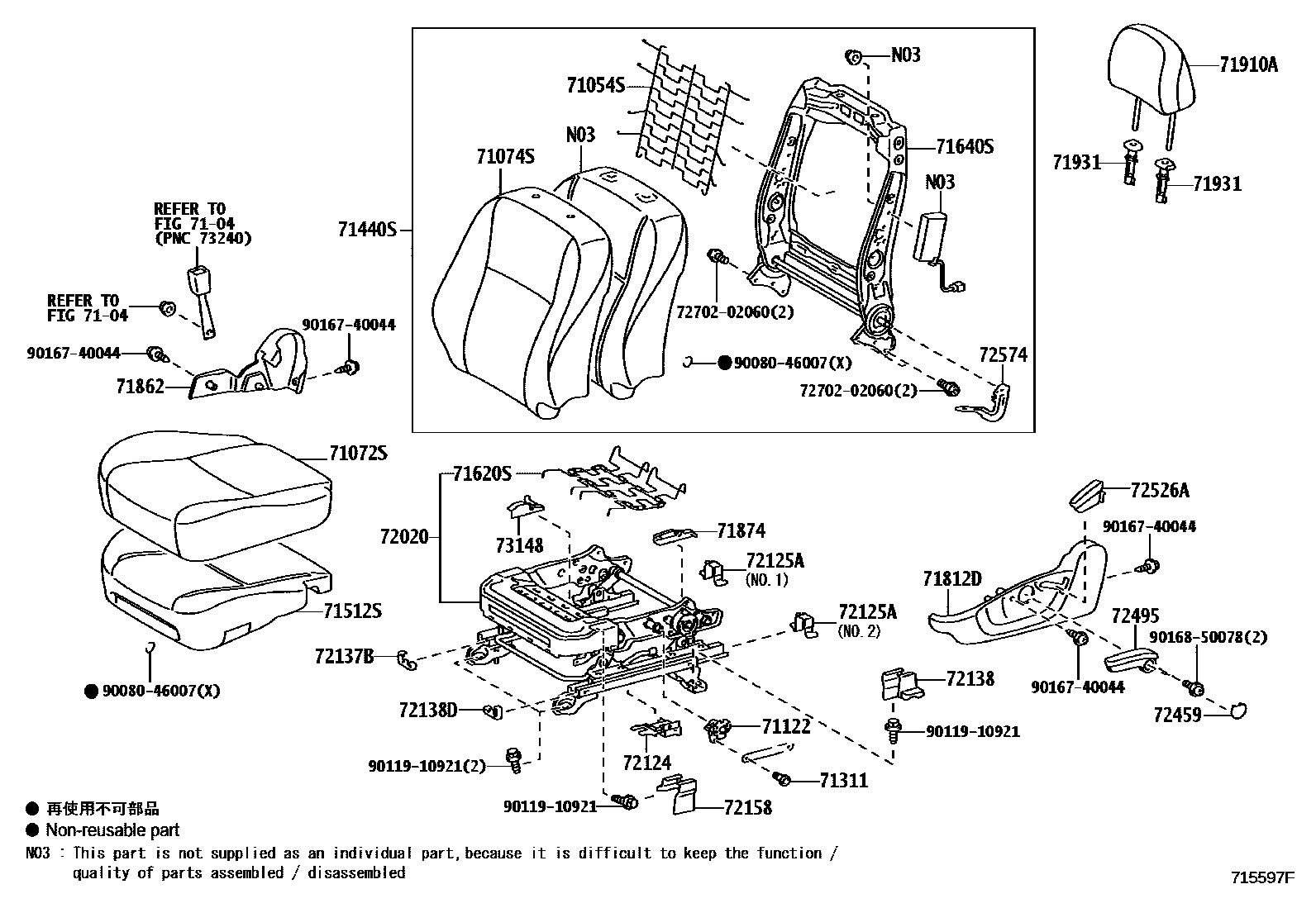

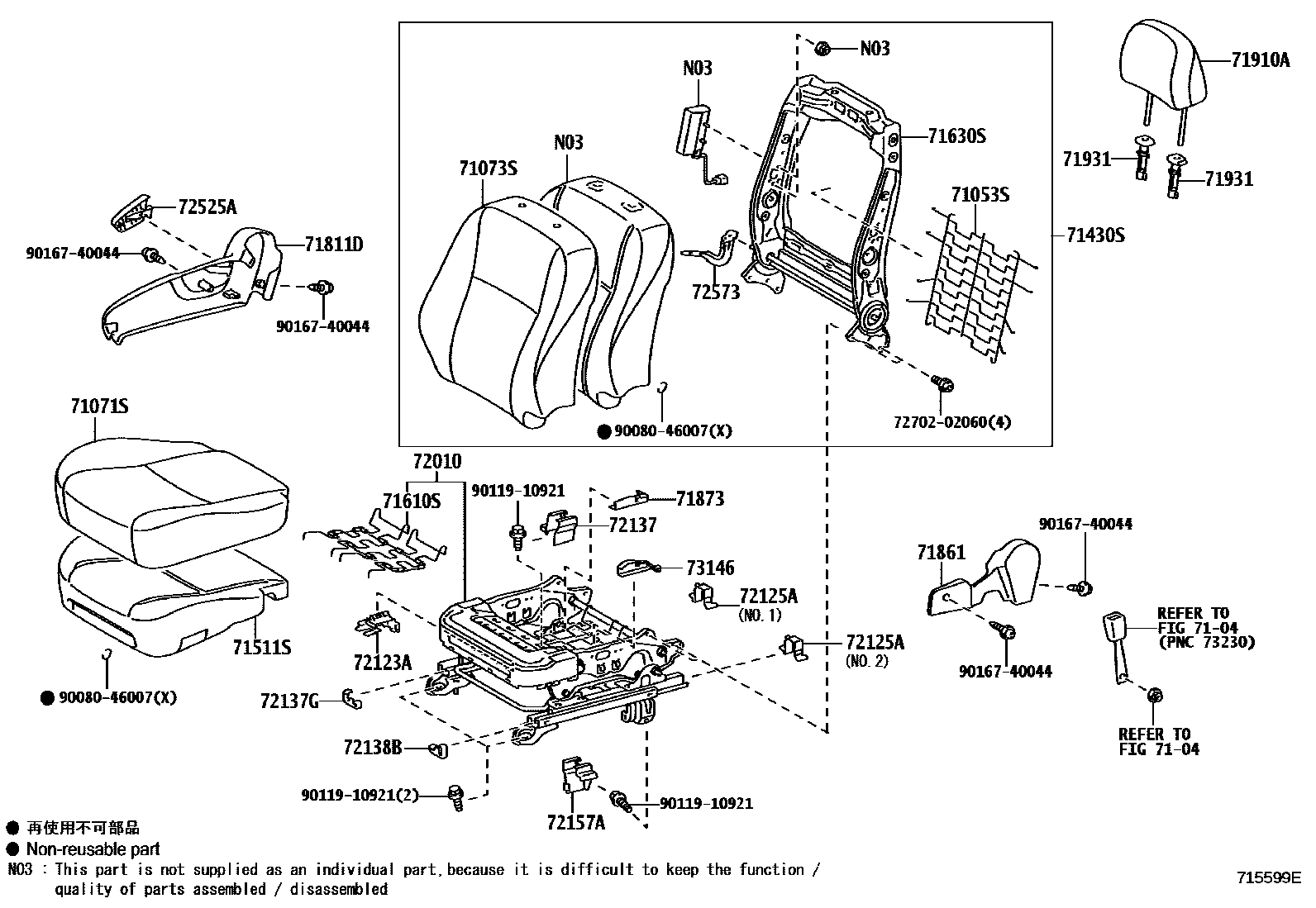

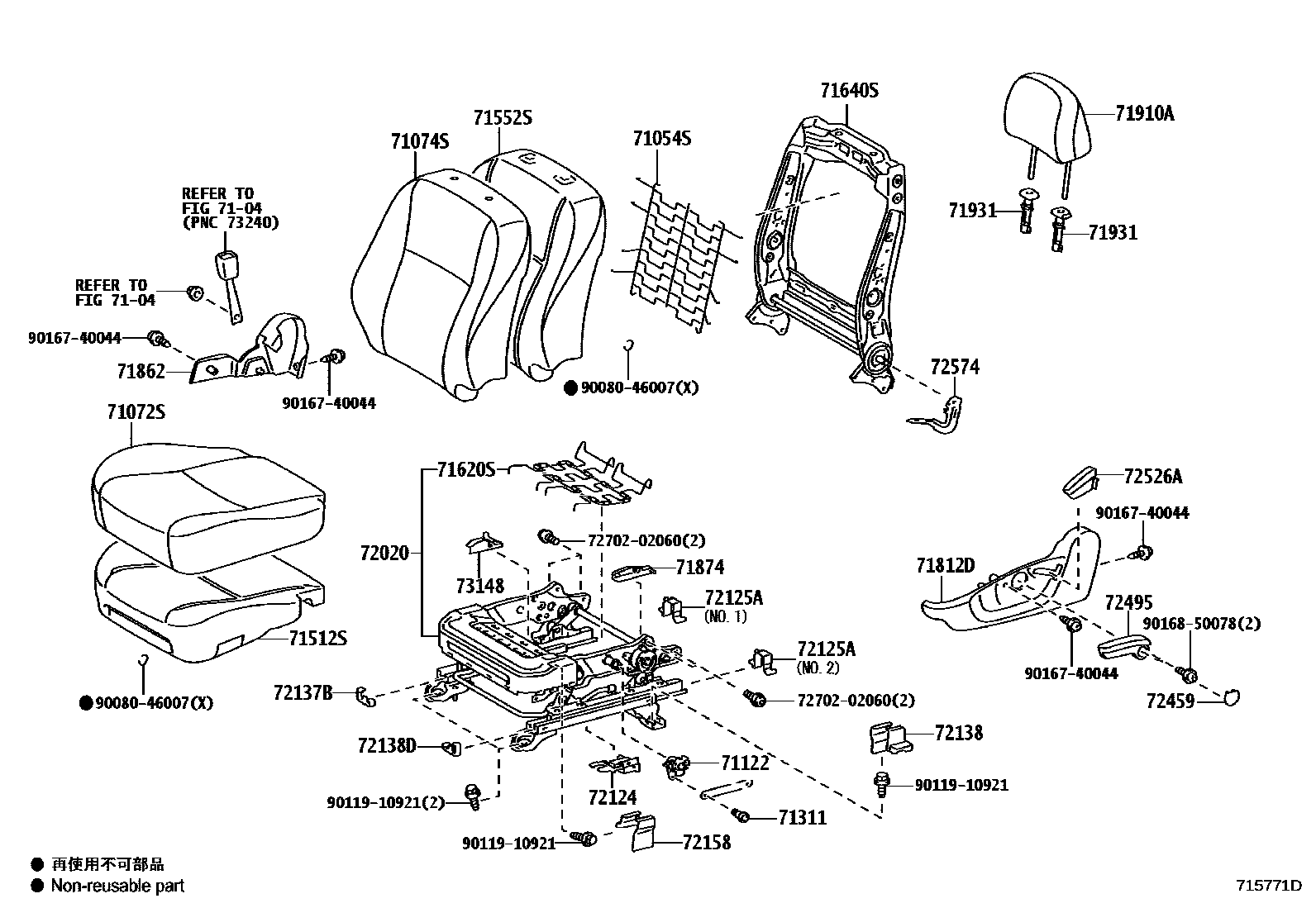

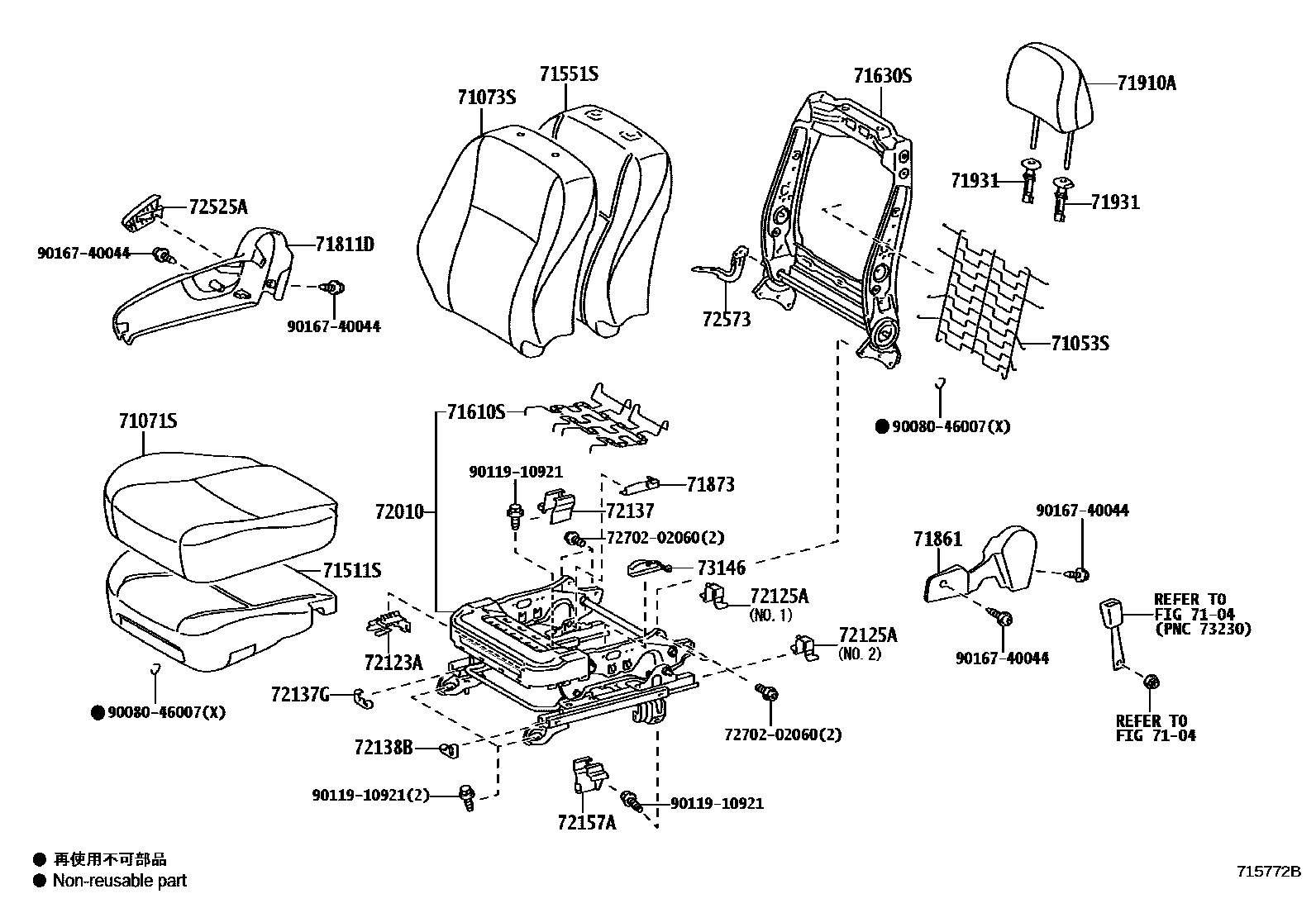

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71053S | Front right seat back spring sub-assembly | 71053-02180 |
| 71054S | Front left seat back spring sub-assembly | 71053-02180 |
| 71073S | Front right seat back cover (for split seats) | 71073-02U51 |
| 71074S | Front left seat back cover (for split seats) | 71074-02U51 |
| 71122 | Front left seat cushion bracket | 71122-02010 |
| 71311 | Front seat hinge pin | 71311-02010 |
| 71430S | Front right seat back assembly (for split seats) | 71430-02X91 |
| 71440S | Front left seat back assembly (for split seats) | 71440-02V51 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02570 · 71511-02580 · 71511-02A80 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02340 · 71512-02350 · 71512-02360 · 71512-02790 · 71512-02800 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02670 · 71551-02690 · 71551-02B90 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02540 · 71552-02560 · 71552-02A10 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71051-02120 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71051-02120 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02530 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02420 · 71640-02440 |
| 71873 | Front right seat cushion lower guard panel | 71873-02110 |
| 71874 | Front left seat cushion lower guard | 71874-02110 |
| 71910A | Front seat headrest assembly | 71910-02D71 |
| 72010 | Front right seat adjuster assembly | 72010-02430 |
| 72020 | Front left seat adjuster assembly | 72020-02380 · 72020-02390 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02060 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-02060 |
| 72125A | Rear seat upper slide rail cover | 72125-02030 · 72125-02040 |
| 72137 | Right seat outer slide rail cover | 72137-02210 |
| 72137B | Right seat slide cover | 72137-02230 |
| 72137G | Right seat outer slide rail cover | 72137-02230 |
| 72138 | Left seat outer slide rail cover | 72138-02170 |
| 72138B | Left seat slide cover | 72138-02180 |
| 72138D | Left seat outer slide rail cover | 72138-02180 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02190 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02180 |
| 72573 | Right seat back tilt control lever | 72573-02040 |
| 72574 | Left seat back tilt control lever | 72574-02040 |
| 73146 | Front right seat belt inner anchor bracket cover | 73146-02010 |
| 73148 | Front left seat belt inner anchor bracket cover | 73148-02010 |
| 85820Z | Electric seat motor assembly | 85820-02020 · 85820-02030 |
