Toyota COROLLA 锁芯组件 — Figure 6712

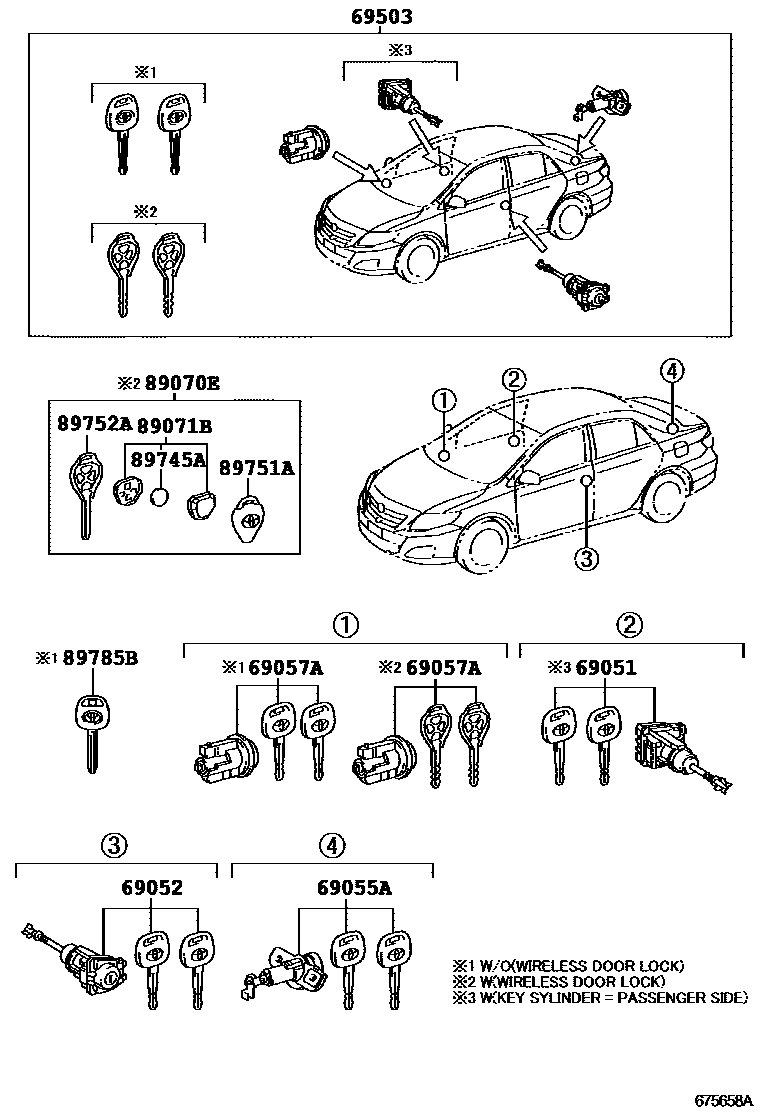

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02190 |
| 69052 | Left door lock cylinder and key assembly | 69052-02100 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02230 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02450 · 69057-02470 |
| 69503 | Door lock cylinder components | 69005-02510 · 69005-02520 · 69005-02530 |
| 89070E | Remote key assembly | 89070-02390 · 89070-02420 · 89070-02440 · 89070-02450 |
| 89071B | Remote key sub-assembly module assembly | 89071-02090 · 89071-12130 |
| 89745A | Transmitter battery | 89745-0H010 · 89745-48030 |
| 89751A | Transmitter housing cover | 89751-02010 · 89751-05010 |
| 89752A | transmitter housing | 89752-02150 |
| 89785B | transceiver key master transmitter | 89785-02170 · 89785-02180 |
