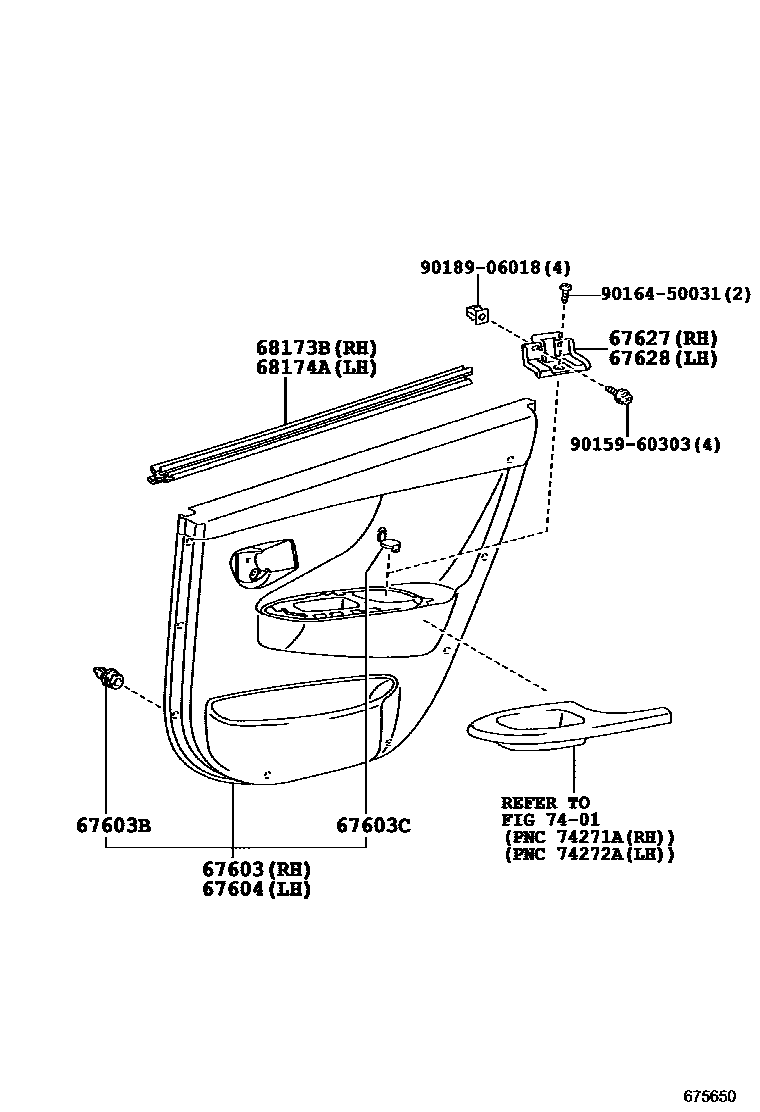

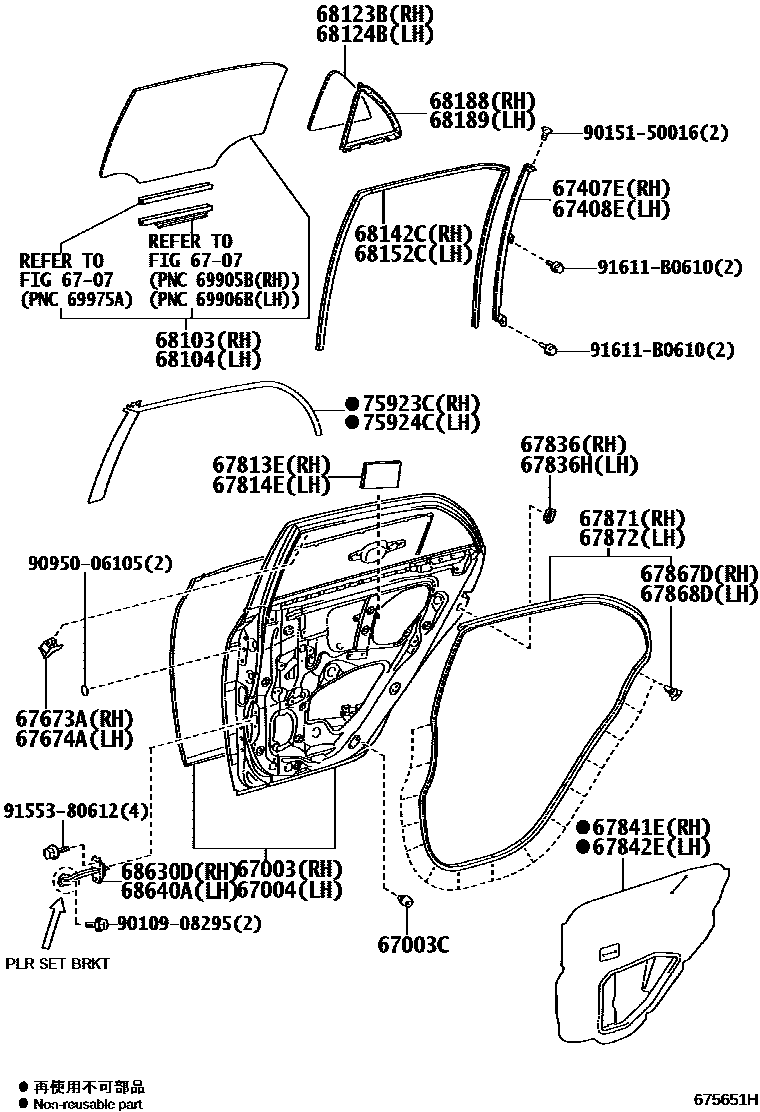

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02901 |
| 67003C | Rear door panel cushion | 90541-09138 · 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-02901 |
| 67407E | Right rear door window divider sub-assembly | 67407-12290 |
| 67408E | Left rear door window divider sub-assembly | 67408-12290 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67627 | Right rear door trim panel bracket | 67625-02160 |
| 67628 | Left rear door trim panel bracket | 67625-02160 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67813E | Right side enclosure silencer panel | 67813-12030 · 67817-47010 |
| 67814E | Left side enclosure silencer panel | 67813-12030 · 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-02210 |
| 67842E | Left rear door access hole cover | 67842-02190 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02200 |
| 67872 | Left rear door sealing strip | 67872-02200 |
| 68103 | Right rear door glass sub-assembly | 68103-02270 · 68103-02271 · 68103-02300 |
| 68104 | Left rear door glass sub-assembly | 68104-02270 · 68104-02271 · 68104-02300 |
| 68123B | Right rear door corner window glass | 68123-02220 · 68123-02221 · 68123-02260 |
| 68124B | Left rear door corner window glass | 68124-02220 · 68124-02221 · 68124-02260 |
| 68142C | Right rear door glass lift slot | 68142-02210 · 68142-02240 · 68142-12290 |
| 68152C | Left rear door glass lift slot | 68152-02210 · 68152-02240 · 68152-12200 |
| 68173B | Right rear door glass inner sealing strip | 68173-02190 |
| 68174A | Left rear door glass inner sealing strip | 68174-02160 |
| 68188 | Right rear door corner window seal | 68188-02150 |
| 68189 | Left rear door corner window seal | 68189-02150 |
| 68630D | Right rear door opening limiter assembly | 68630-02220 · 68630-02221 |
| 68640A | Left rear door opening limiter assembly | 68630-02220 · 68630-02221 |
| 75923C | No. 2 right side light-shielding film | 75923-02160 · 75923-02340 |
| 75924C | No. 2 left shading film | 75924-02170 · 75924-02340 |
