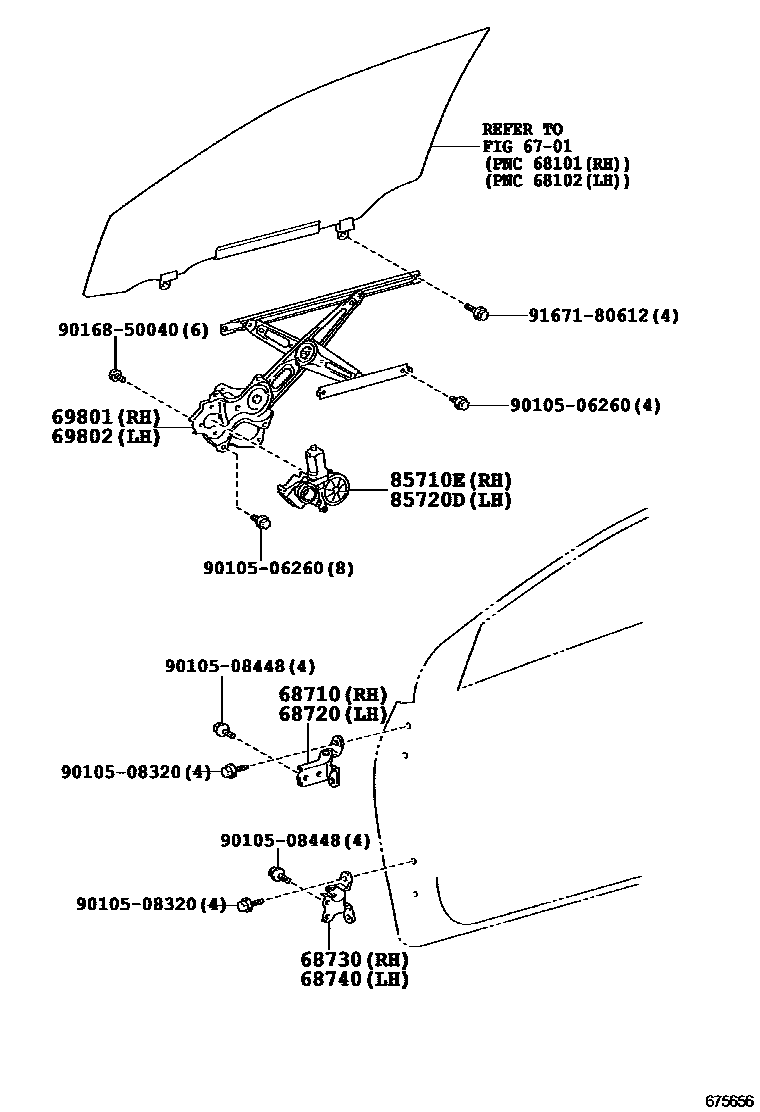

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02110 |
| 68740 | Left front door lower hinge assembly | 68740-02110 |
| 69801 | Right front door window lifter sub-assembly | 69801-02250 |
| 69802 | Left front door window lifter sub-assembly | 69802-02260 |
| 85710E | Right power window lift motor assembly | 85710-02350 · 85710-0D100 |
| 85720D | Left electric window lift motor assembly | 85720-02330 |
