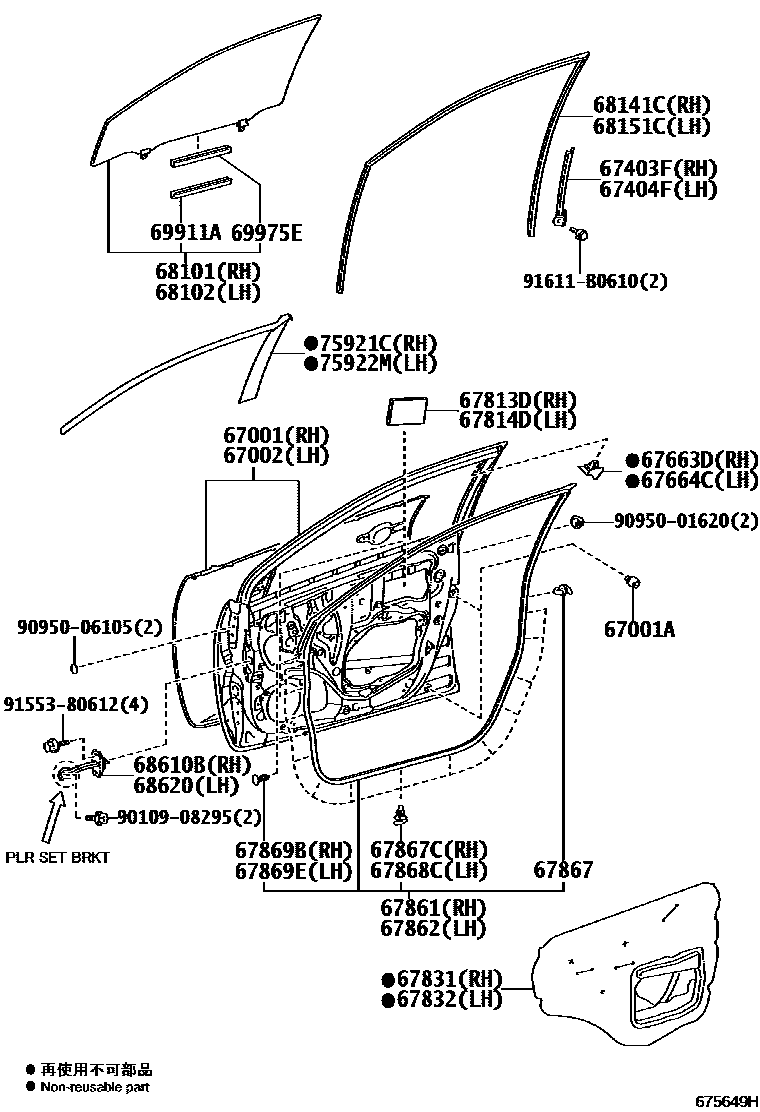

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02901 |
| 67001A | Front door panel cushion | 90541-09138 · 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-02901 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02130 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02130 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-02350 · 67491-02360 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-02350 · 67492-02360 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67625 | Right front door trim panel bracket | 67625-02160 |
| 67626 | Left front door trim panel bracket | 67625-02160 |
| 67663D | Right door frame decorative strip | 67663-48010 |
| 67664C | Left door frame decorative strip | 67664-48010 |
| 67813D | Right side enclosure silencer panel | 67813-12030 · 67817-47010 |
| 67814D | Left side enclosure silencer panel | 67813-12030 · 67817-47010 |
| 67831 | Right front door access hole cover | 67831-02260 |
| 67832 | Left front door access hole cover | 67832-02260 |
| 67861 | Right front door seal | 67861-02240 |
| 67862 | Left front door seal | 67862-02240 |
| 67867 | Car door seal strip clip | 90467-04034 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 67869E | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-02300 · 68101-02301 · 68101-02302 · 68101-02303 · 68101-02330 · 68101-02331 · 68101-02332 |
| 68102 | Left front door glass sub-assembly | 68102-02300 · 68102-02301 · 68102-02302 · 68102-02303 · 68102-02330 · 68102-02331 · 68102-02332 |
| 68141C | Right front door glass lift channel | 68141-02270 · 68141-02300 · 68141-12560 |
| 68151C | Left front door glass lift channel | 68151-02250 · 68151-02280 · 68151-12260 |
| 68171B | Right front door glass inner sealing strip | 68171-02210 |
| 68172A | Left front door glass inner sealing strip | 68172-02200 |
| 68610B | Right front door opening limiter assembly | 68610-02230 · 68610-02231 |
| 68620 | Left front door opening limiter assembly | 68610-02230 · 68610-02231 |
| 69911A | No. 1 front door glass slot | 69911-13010 · 69955-47010 |
| 69975E | No. 1 front door glass groove filler | 69975-16020 · 69975-47010 |
| 75921C | No. 1 right side light-shielding film | 75921-02140 · 75921-02310 |
| 75922M | No. 1 left shading film | 75922-02140 · 75922-02310 |
