Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

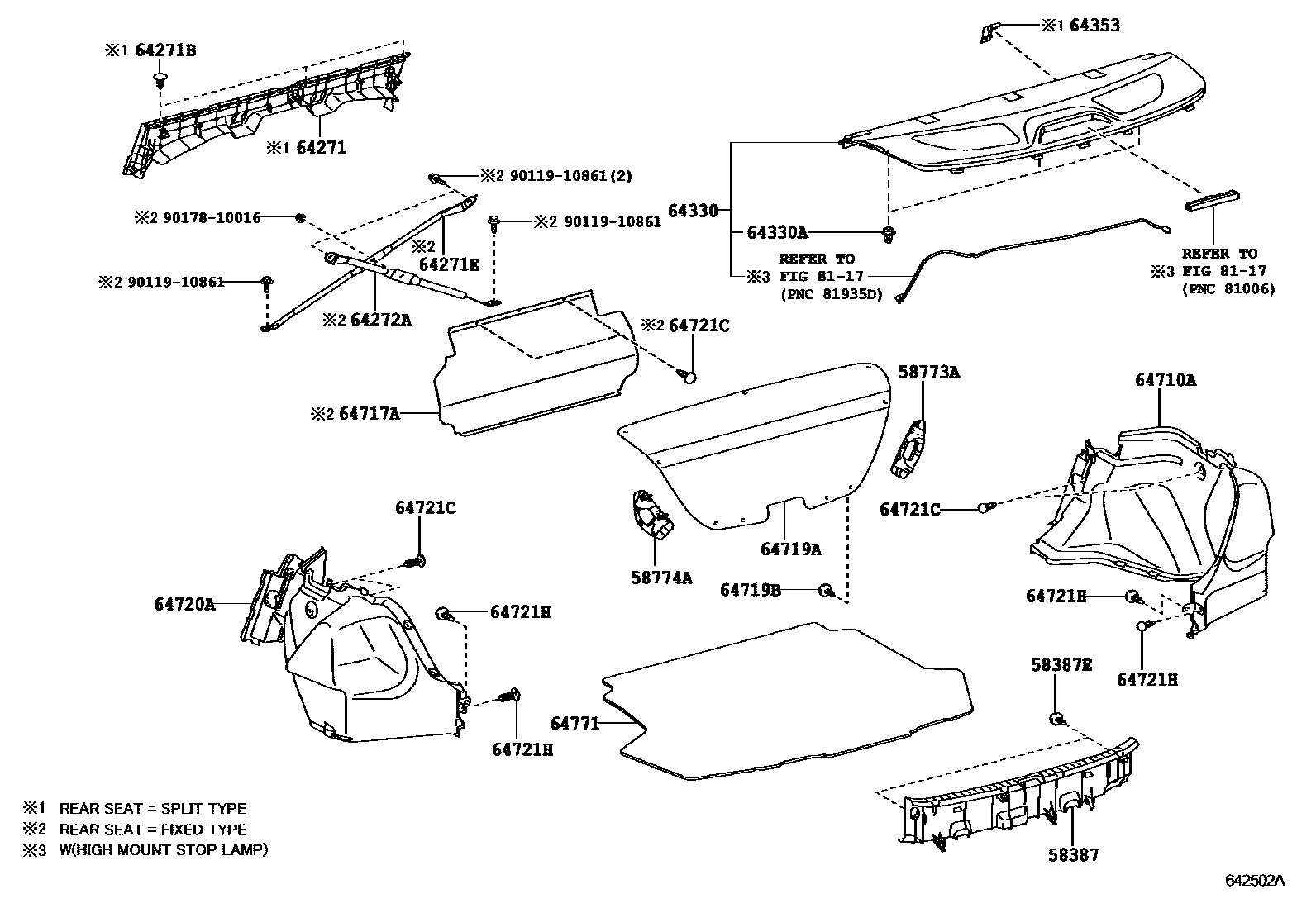

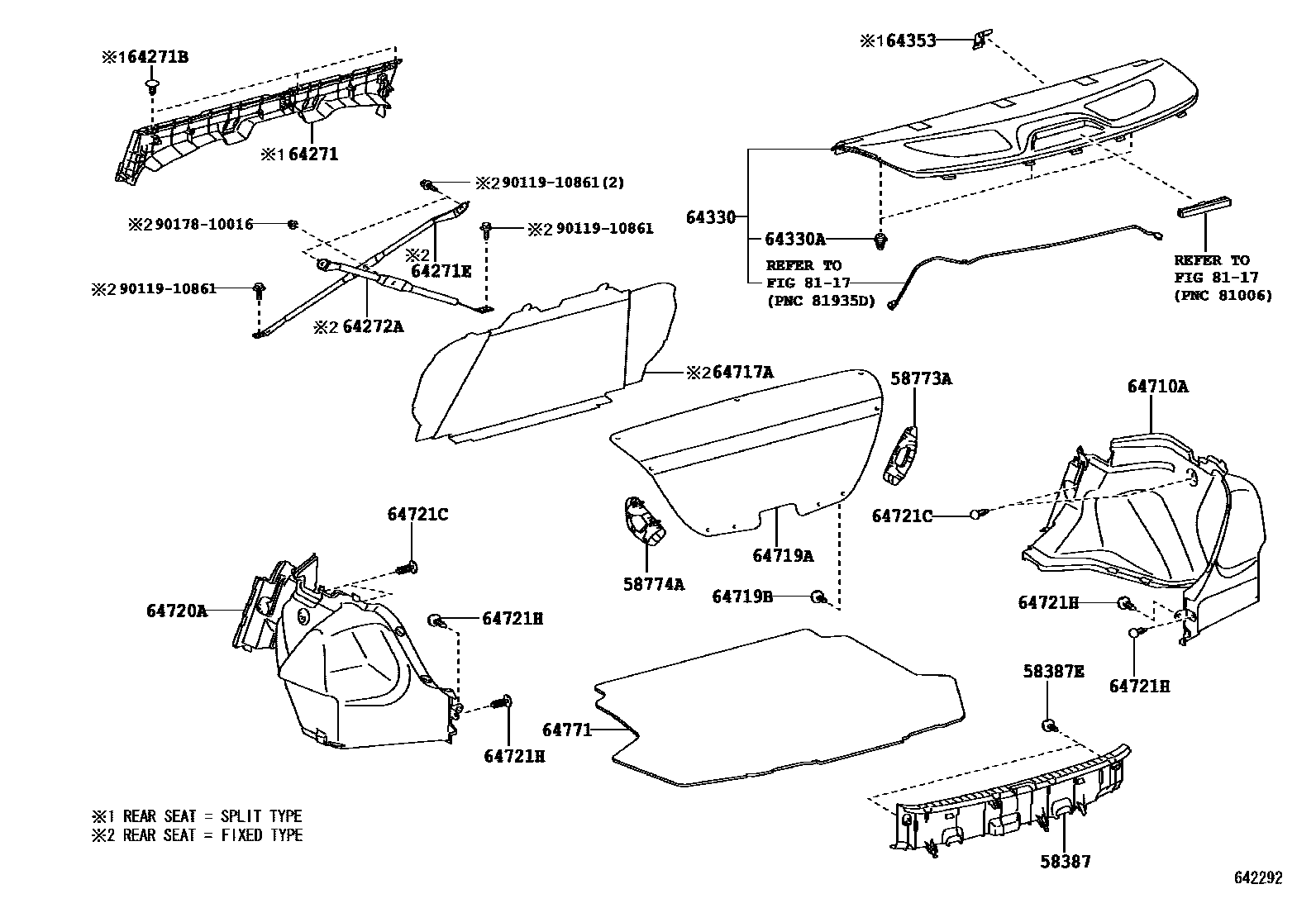

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-02150 · 58387-02160 |
| 58773A | Decorative cover on right side of luggage compartment door | 58773-02150 |
| 58774A | Luggage door left decorative cover | 58774-02140 |
| 64271 | No. 1 compartment partition | 64271-02160 |
| 64271E | compartment partition | 64241-02060 |
| 64272A | Left compartment partition | 64242-02060 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64717A | Luggage front decorative cover | 64717-02150 · 64717-02170 |
