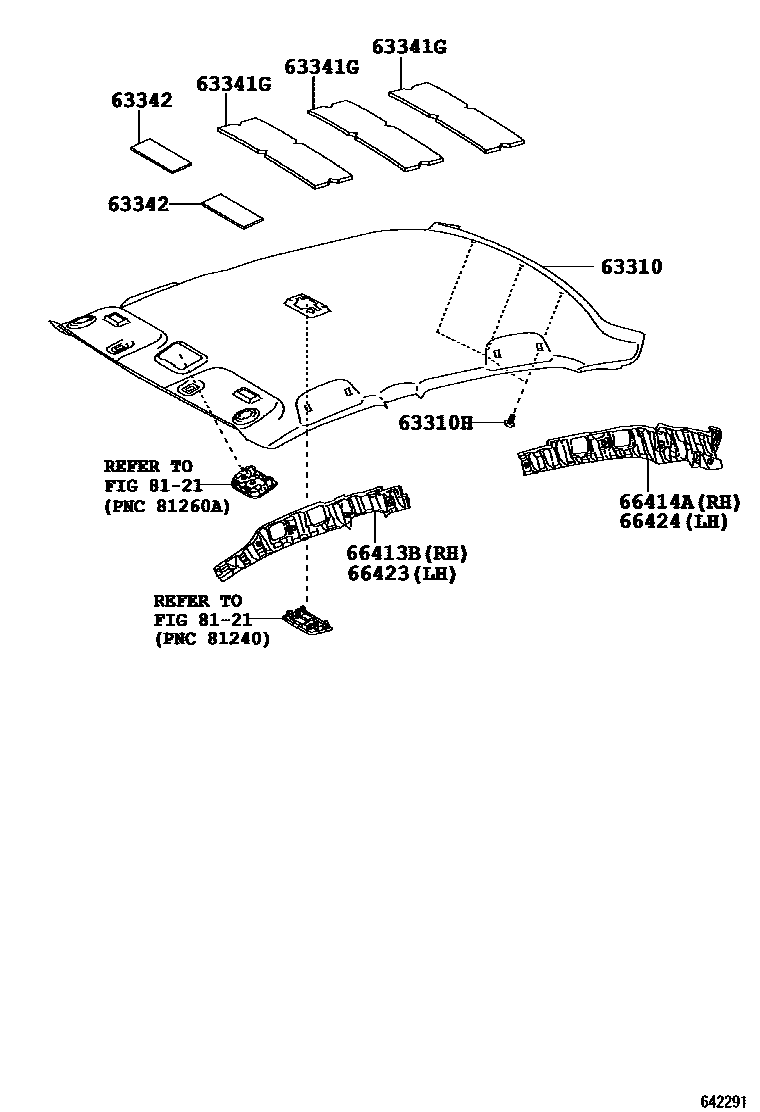

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341G | roof muffler mat | 63341-02110 |
| 63342 | No. 2 roof muffler pad | 63342-02320 |
| 66413B | Right front longitudinal member spacer | 66413-02110 |
| 66414A | Right rear longitudinal member spacer | 66414-02130 |
| 66423 | Left front longitudinal member spacer | 66423-02110 |
| 66424 | Left rear longitudinal member spacer | 66424-02130 |
