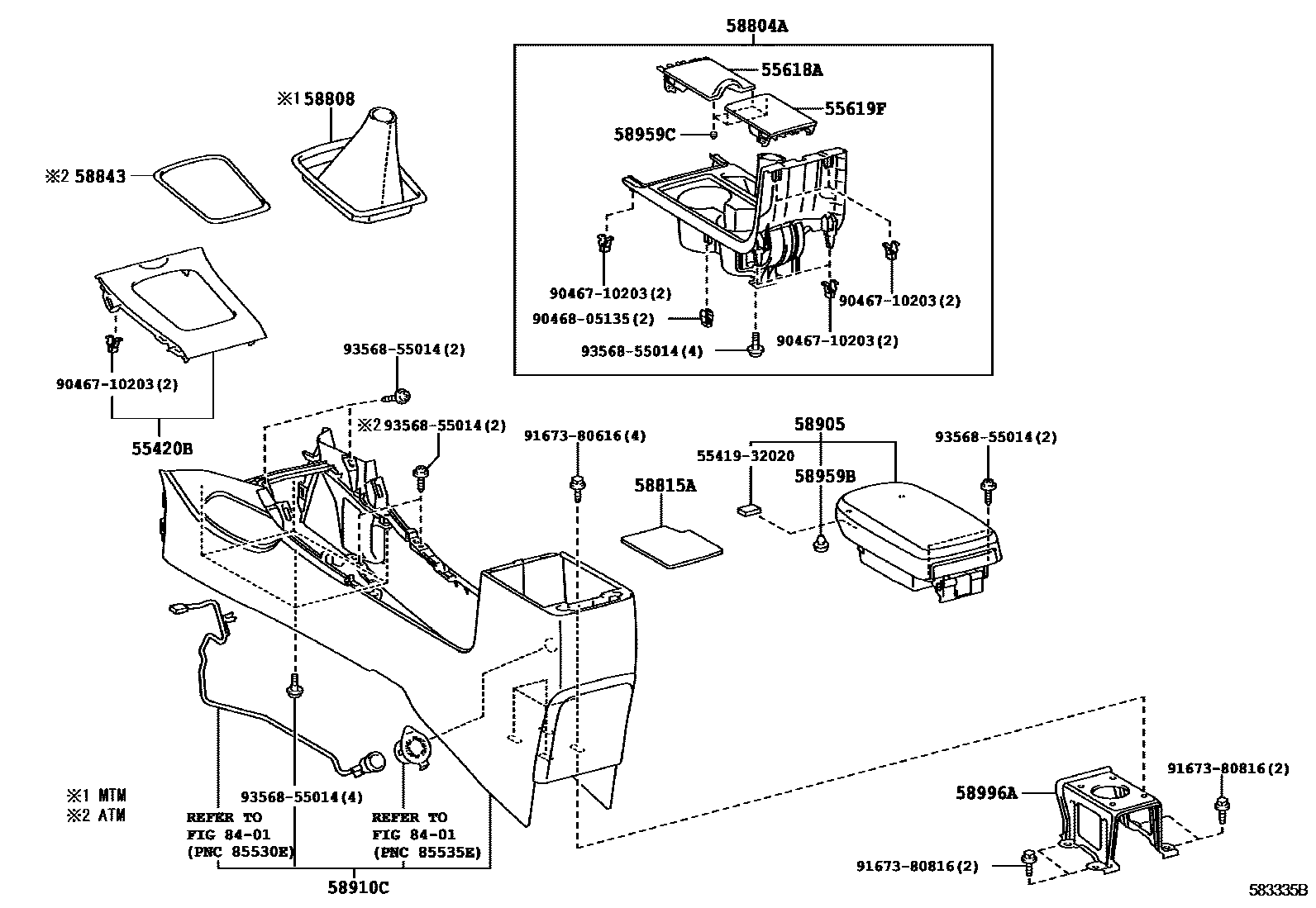

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55420B | Center instrument cluster No. 1 decorative panel assembly | 55420-02480 · 55420-02540 · 55420-02630 · 55420-02730 |
| 58815A | Armrest box felt pad | 58815-02180 |
| 58843 | shift hole frame | 58843-02170 · 58843-12130 · 58843-12160 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58959C | Armrest box cover cushion | 58959-12040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02110 |
