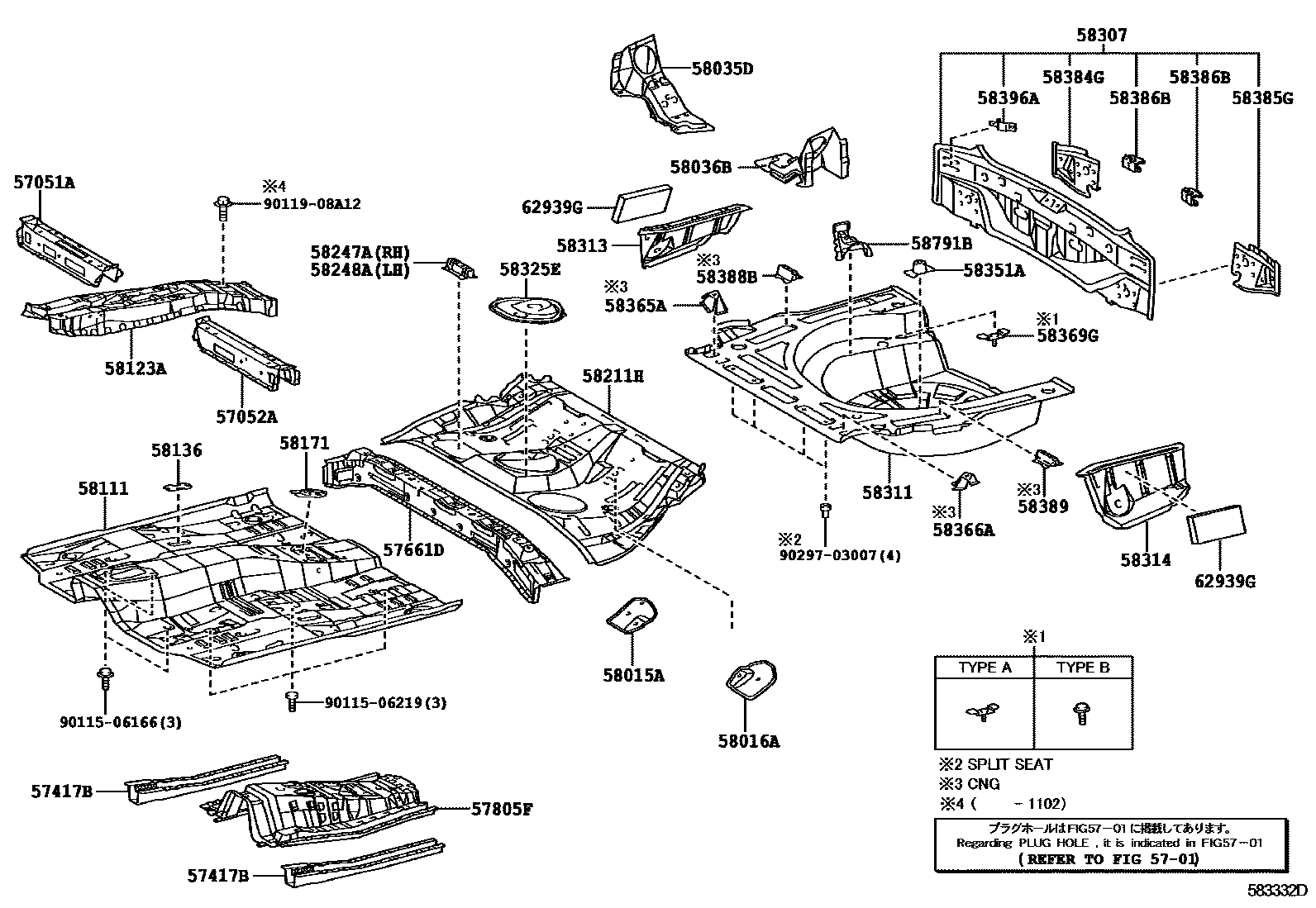

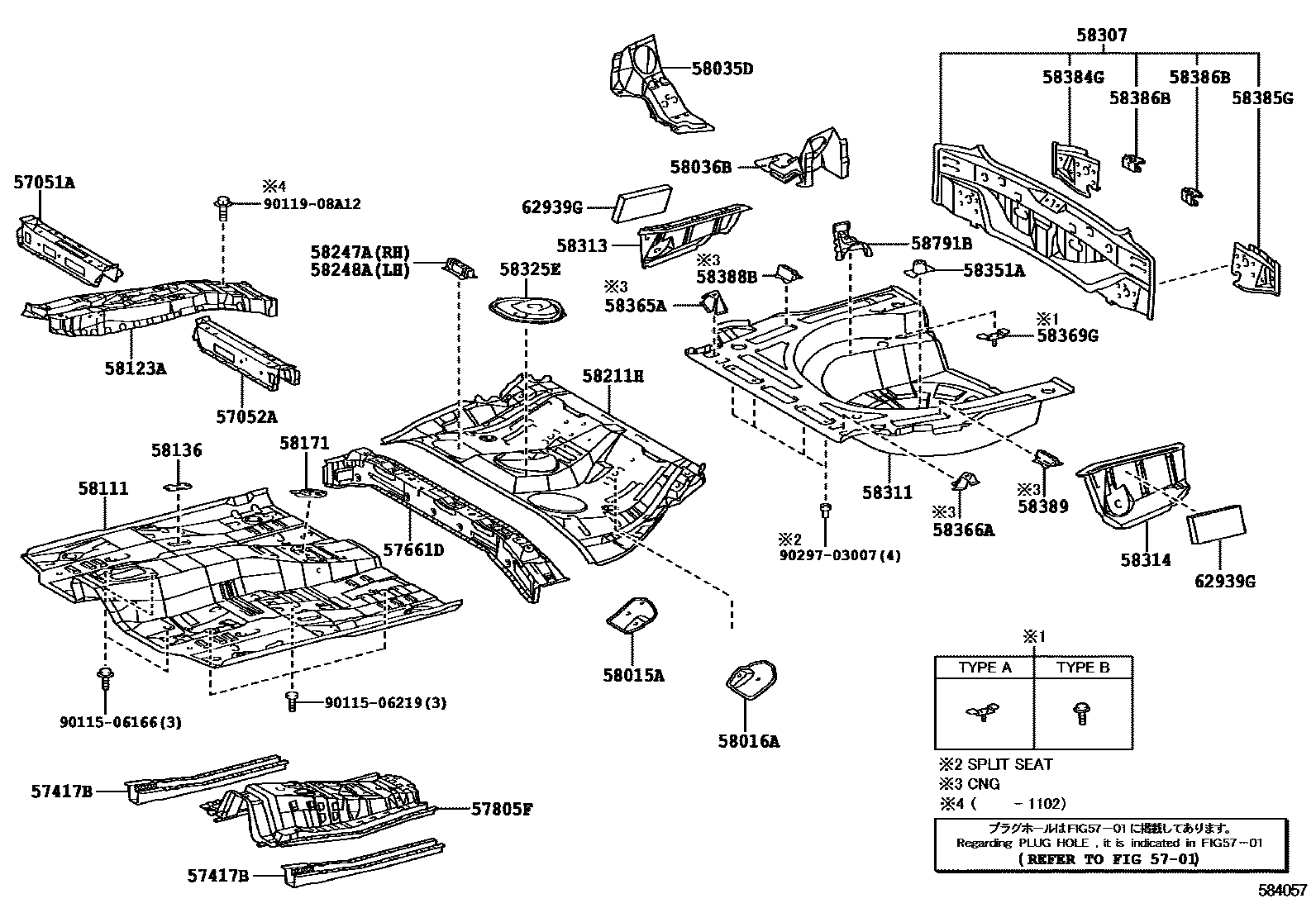

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57051A | Front floor right cross member sub-assembly | 57051-02080 |
| 57052A | Front floor left cross member sub-assembly | 57052-02070 |
| 57417B | Front underfloor reinforcement | 57417-02110 |
| 57661D | rear floor front cross member | 57661-02140 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02130 · 57805-02131 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02130 · 58015-02140 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02110 |
| 58035D | Rear floor right side panel extension sub-assembly | 58035-02030 |
| 58036B | Rear floor left side panel extension sub-assembly | 58036-02030 |
| 58111 | front floor pan | 58111-02925 |
| 58123A | shift lever bracket | 58013-02160 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58171 | Parking brake base reinforcement | 58176-12030 |
| 58211H | central floor base | 58211-02300 · 58211-02310 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12080 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12080 |
| 58307 | Body lower back panel sub-assembly | 58307-02220 · 58307-02340 |
| 58311 | rear floor pan | 58311-02180 · 58311-02200 · 58311-02210 · 58311-12270 |
| 58313 | Rear floor right panel | 58313-12300 |
| 58314 | rear floor left panel | 58314-12300 |
| 58325E | Rear floor access hole cover | 58325-02140 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58365A | Fuel tank right side bracket | 58365-YY010 |
| 58366A | Fuel tank left bracket | 58366-YY010 |
| 58369G | No. 3 fuel pipe bracket | 58369-12020 · 90115-06166 |
| 58384G | Body lower back panel upper right corner panel | 58384-02120 |
| 58385G | Body lower back panel upper left corner panel | 58385-02110 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-12020 |
| 58388B | rear floor support | 58388-YY010 |
| 58389 | No. 2 rear washer water tank mounting bracket | 58389-YY010 |
| 58396A | Wire harness clamp bracket | 82715-02E20 |
| 58791B | jack bracket | 58791-02020 |
| 62939G | Side ventilation silencers | 62939-02060 |
