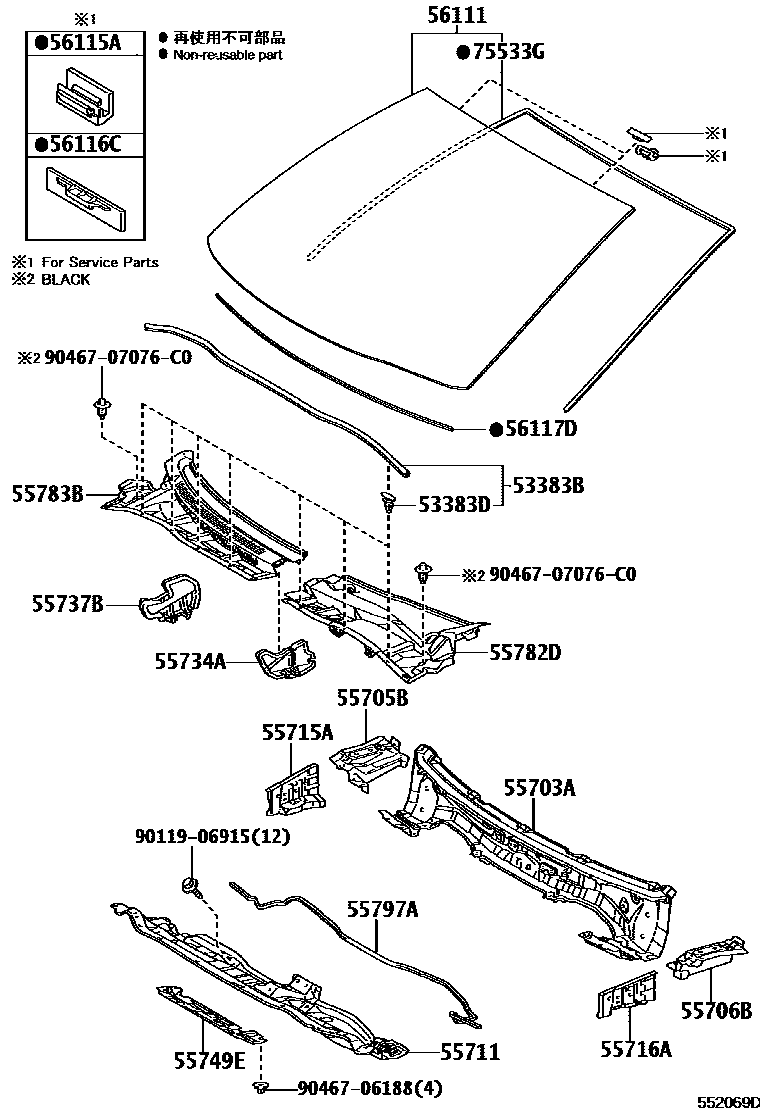

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02170 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-02320 · 55703-02440 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02100 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02100 |
| 55711 | Front outer panel | 55701-02290 |
| 55715A | From cowl upper cover to fender right stay | 55715-02050 |
| 55716A | From cowl upper cover to fender left stay | 55716-02050 |
| 55734A | Right waterproof cover | 55734-02150 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02090 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-02070 |
| 55782D | Ventilation grille on left front apron | 55709-02350 |
| 55783B | Ventilation grille on center cowl No. 1 | 55708-02490 |
| 55797A | Front wall pumping device seal | 55797-02100 |
| 56111 | windshield | 56101-02590 · 56101-02591 · 56101-02600 · 56101-02601 · 56101-02610 · 56101-02620 · 56101-02621 · 56101-02670 · 56101-02A50 · 56101-02A51 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117D | windshield adhesive seal | 56117-12300 |
| 75533G | Windshield outer protective strip | 75531-02170 |
