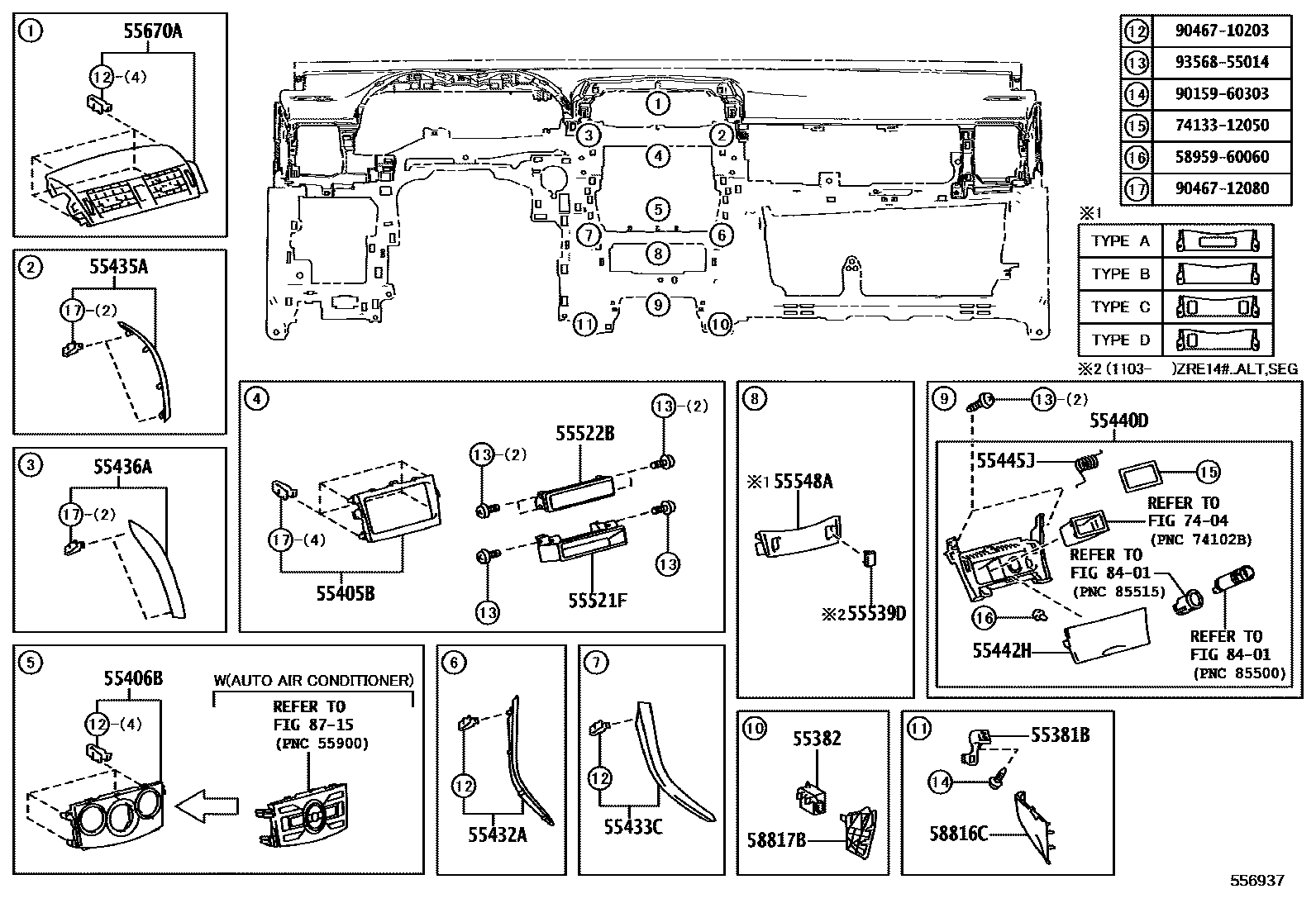

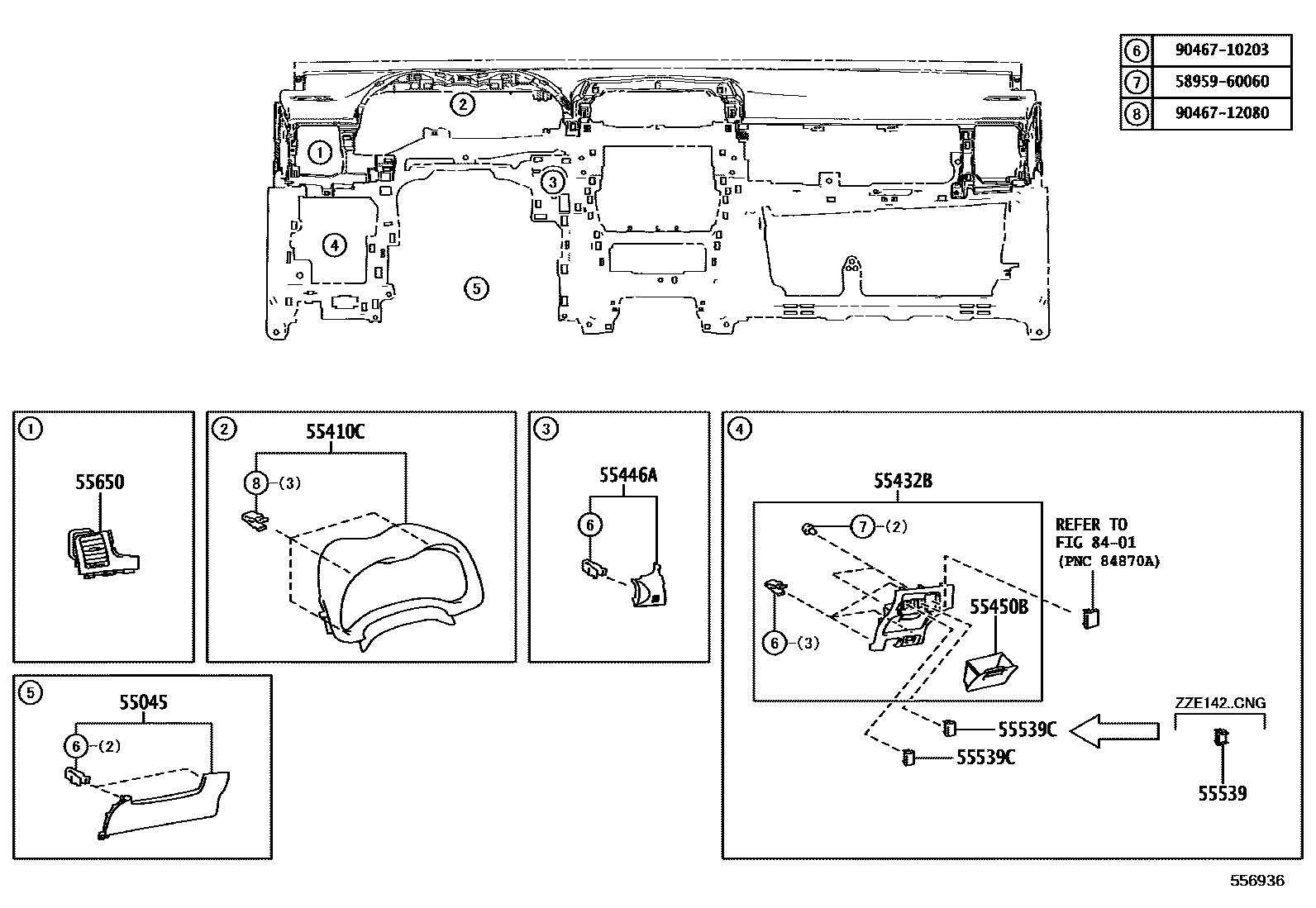

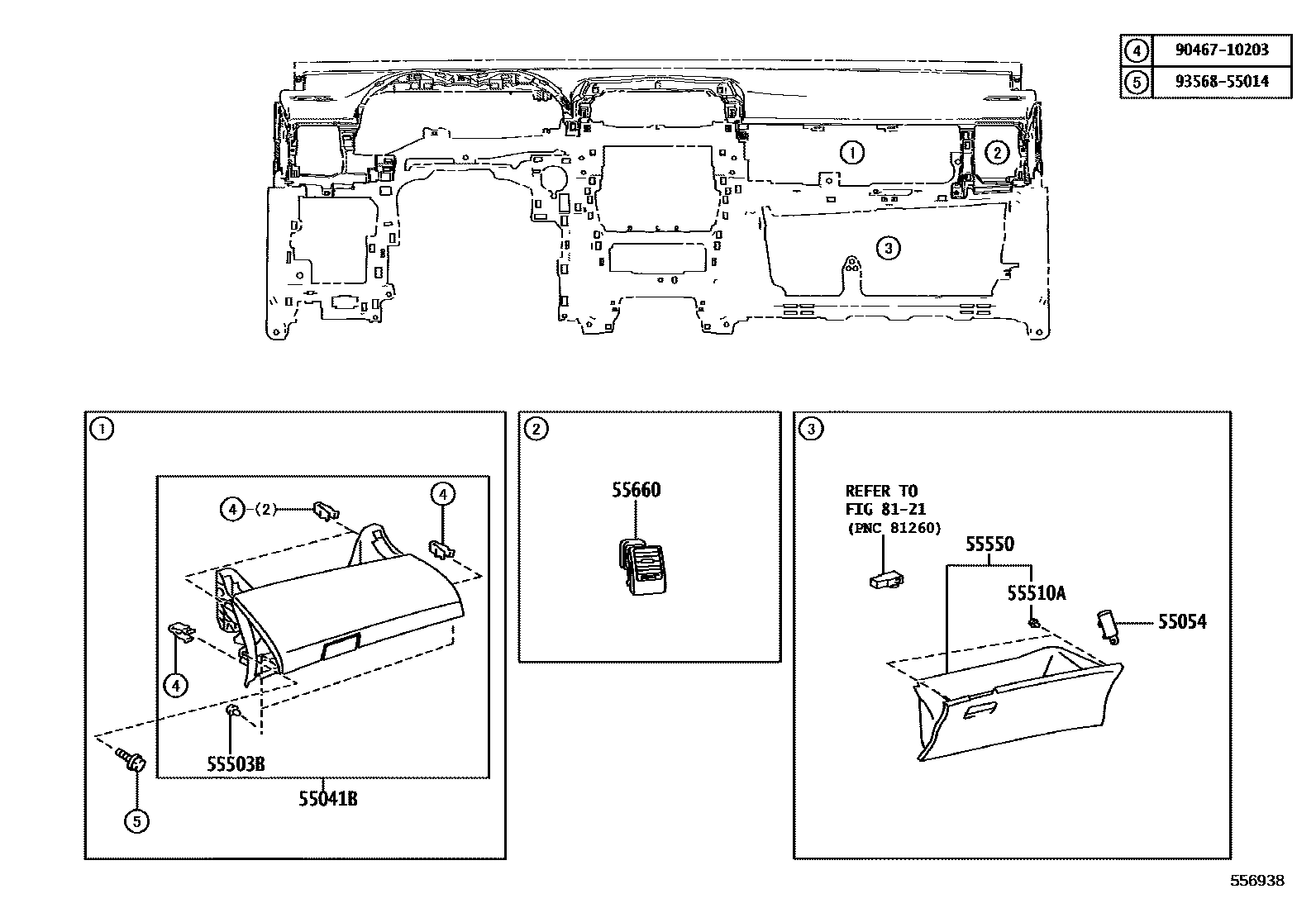

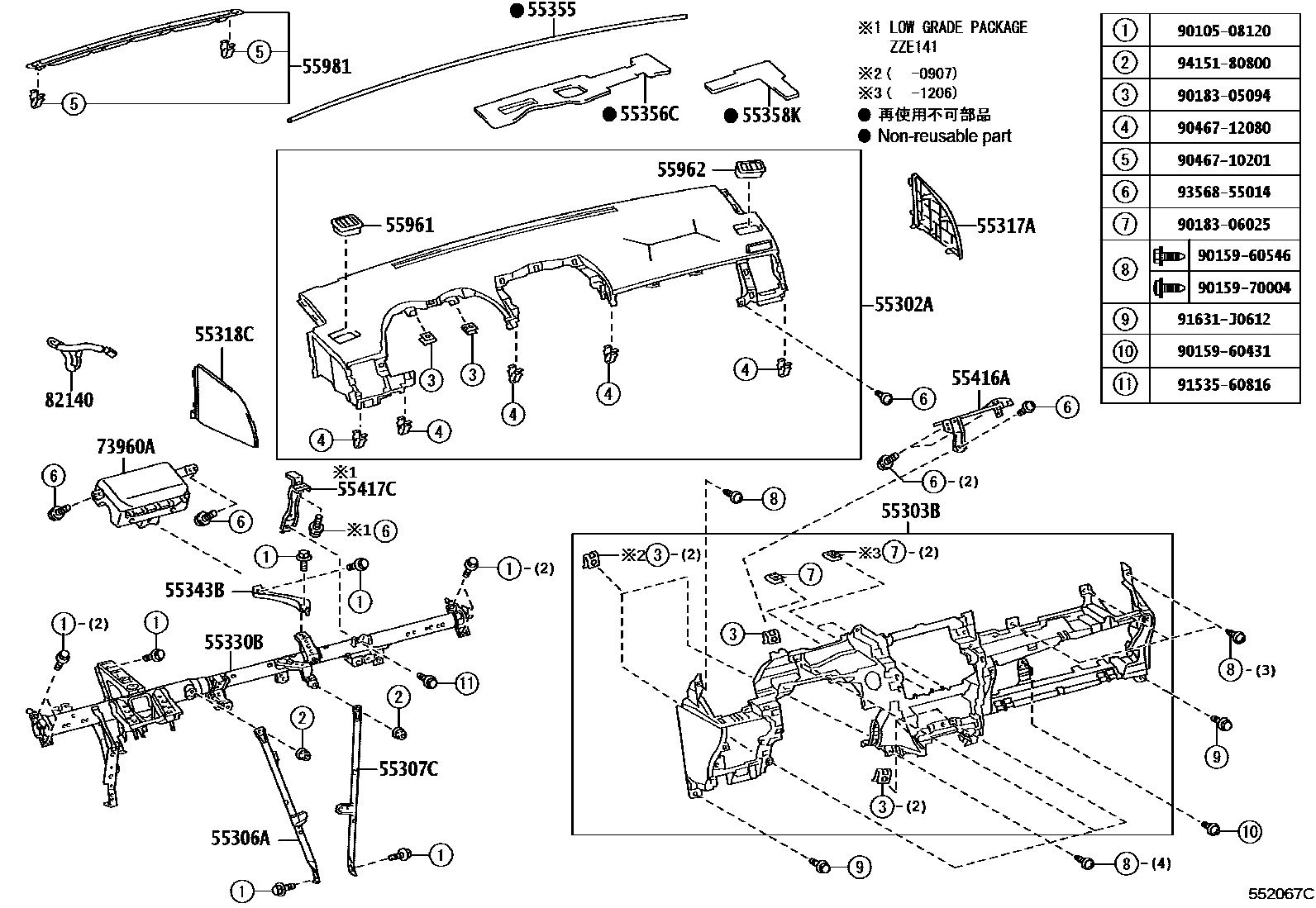

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02360 · 55306-02390 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02230 · 55307-02250 |
| 55330B | Instrument panel reinforcement assembly | 55330-02570 · 55330-02592 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02200 · 55343-02210 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12110 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02170 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-02130 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-02160 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-02130 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02280 · 55405-02290 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02360 · 55406-02370 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02150 |
| 55417C | Instrument panel pad No. 3 bracket | 55417-02010 |
| 55432A | Dashboard lower right decorative panel | 55432-02310 · 55432-02320 |
| 55433C | Instrument panel lower left decorative panel | 55433-02190 · 55433-02320 |
| 55435A | Dashboard right end decorative panel | 55435-02270 · 55435-02380 |
| 55436A | Instrument panel left end decorative panel | 55436-02230 · 55436-02340 |
| 55440D | Dashboard storage box assembly | 55440-02250 · 55440-02280 · 55440-02620 · 55440-02680 |
| 55442H | Dashboard storage box cover | 55442-02280 · 55442-02310 · 55442-02370 · 55442-02700 |
| 55445J | Dashboard storage box spring | 55445-12130 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55521F | Stereo system hole cover No. 2 | 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-12180 |
| 55548A | Dashboard hole cover | 55548-02210 · 55548-02270 · 55548-02580 · 55548-02590 · 55548-02600 · 55548-02610 |
| 55670A | Instrument panel central air register assembly | 55670-12390 · 55670-12391 · 55670-12400 · 55670-12401 · 55670-12450 · 55670-12451 · 55670-12581 · 55670-12591 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-02210 · 55981-02220 · 55981-02250 · 55981-02290 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02180 |
| 82140 | Instrument panel wiring harness assembly | 82140-02330 · 82140-02340 |
