Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

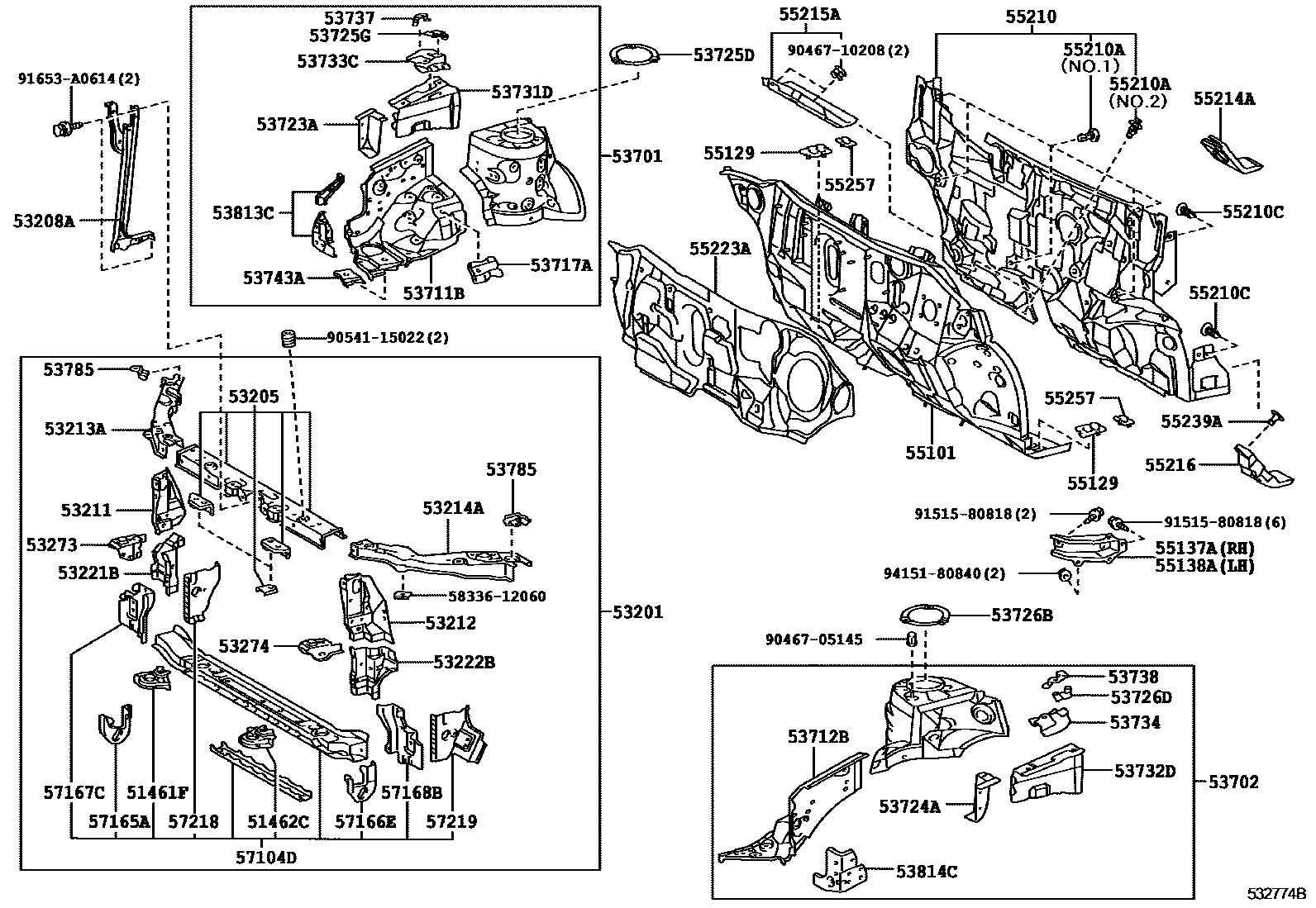

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51461F | Radiator lower right mounting bracket | 51461-12020 |
| 51462C | Radiator lower left mounting bracket | 51462-12020 |
| 53201 | Radiator bracket sub-assembly | 53201-02290 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02902 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02130 |
| 53211 | Radiator right side support | 53211-02160 |
| 53212 | Radiator left support | 53212-02160 |
| 53213A | Radiator upper right bracket | 53213-02100 |
| 53214A | Radiator upper left bracket | 53214-02090 |
| 53221B | Radiator right side bracket baffle stay | 53221-12020 |
| 53222B | Radiator left bracket baffle stay | 53222-12020 |
| 53273 | Front bumper arm right mounting bracket | 53273-12120 |
| 53274 | Front bumper arm left mounting bracket | 53274-12120 |
| 53701 | Right front fender fender sub-assembly | 53701-02240 · 53701-02250 |
| 53702 | Left front fender fender sub-assembly | 53702-02180 |
| 53711B | Right front fender front fender | 53711-02110 |
| 53712B | Left front fender front fender | 53712-02130 |
| 53717A | fender fender | 53717-12060 |
| 53723A | Front spring bracket right side reinforcement | 53723-12080 |
| 53724A | Front spring bracket left reinforcement | 53724-12070 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53723-12091 · 53723-12110 |
| 53725G | No. 2 right front fender fender | 53725-12050 |
| 53726B | No. 2 front spring bracket left reinforcement | 53723-12091 · 53723-12110 |
| 53726D | No. 2 left front fender fender | 53726-12050 |
| 53731D | Right front fender to cowl side upper beam | 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-12140 |
| 53733C | Front fender fender liner | 53733-12080 |
| 53734 | No. 4 front fender fender liner | 53734-12080 |
| 53737 | Right front fender to front wall side sill | 53737-12110 |
| 53738 | Left front fender to front wall side sill | 53738-12070 |
| 53743A | Right front fender fender front reinforcement | 53743-12050 |
| 53785 | No. 1 front suspension upper arm reinforcement | 53785-12020 · 53786-12030 |
| 53813C | Right front fender extension | 53803-12060 |
| 53814C | Left front fender extension | 53814-12090 |
| 55101 | Front apron sub-assembly | 55101-02B20 · 55101-02B30 |
| 55129 | Front panel hole cover | 55129-32030 · 55139-32010 |
| 55137A | Right side bracket (front wall to frame) | 55137-02080 |
| 55138A | Left side bracket (front wall to frame) | 55138-02070 |
| 55210 | Front wall insulation pad assembly | 55210-02350 · 55210-02351 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-02090 · 55214-02110 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-02090 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-02040 |
| 55223A | Front wall outer heat insulation pad | 55223-02240 · 55223-02241 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-48020 |
| 55257 | cowl opening cover | 55257-32010 |
| 57104D | Front cross member sub-assembly | 57104-02190 |
| 57165A | No. 2 front cross member reinforcement | 57165-12070 |
| 57166E | No. 2 front cross member left reinforcement | 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-02110 |
| 57168B | Front cross member left corner panel | 57168-02110 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-12010 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-12010 |
