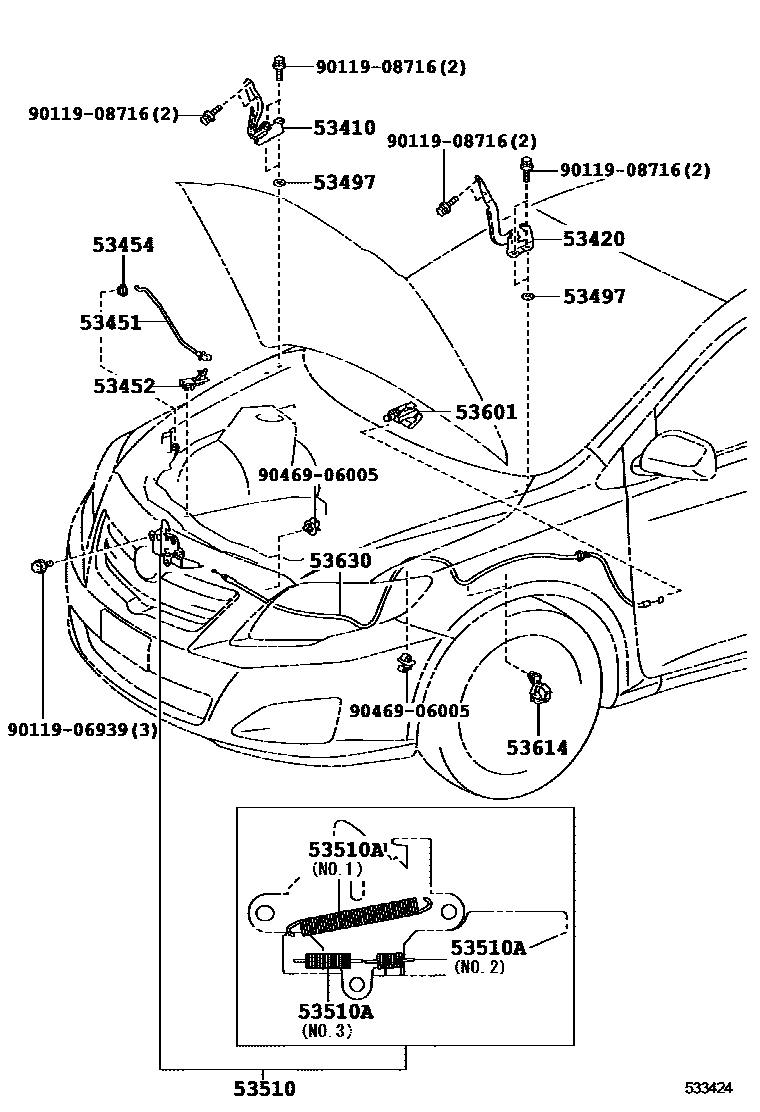

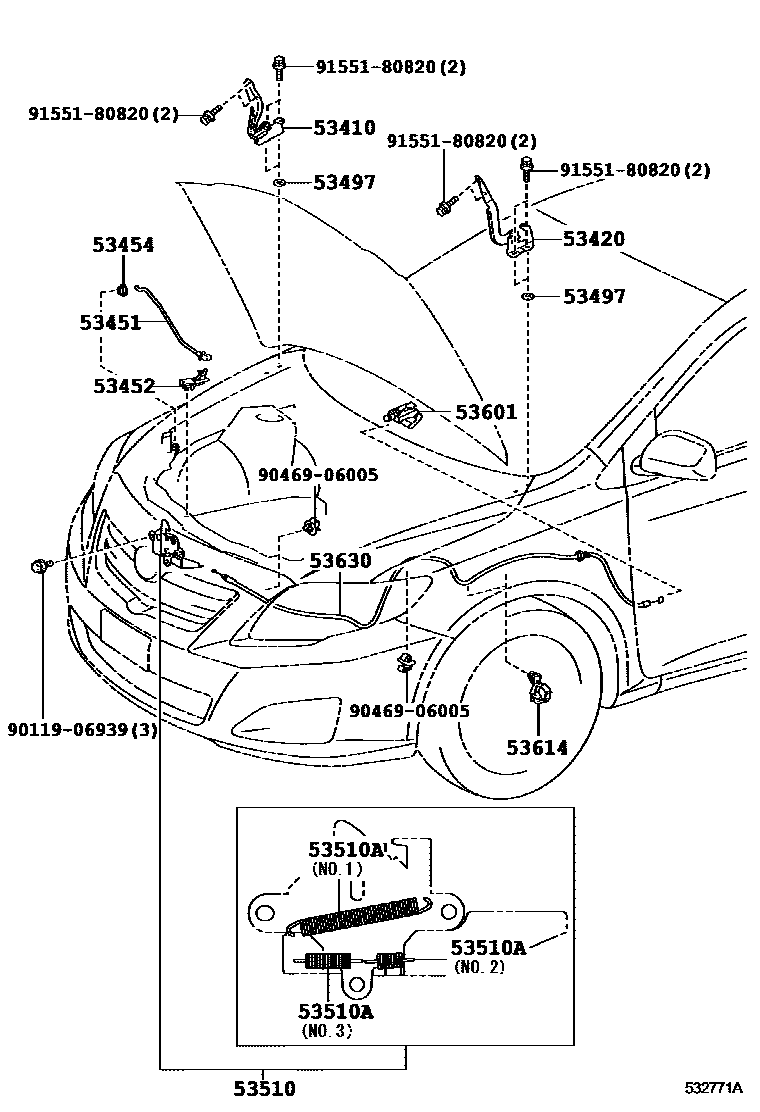

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02240 |
| 53420 | Engine cover left hinge assembly | 53420-02230 |
| 53451 | Engine cover support rod | 53440-02130 · 53440-02150 |
| 53452 | Engine cover stay rod fixing | 53452-02100 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-02390 · 53510-02391 · 53510-02400 |
| 53510A | Tension spring (for hood lock) | 90080-50413 · 90080-50414 · 90080-50416 |
| 53614 | Engine hood lock control cable clip | 53614-12040 · 82711-1E350 |
| 53630 | Engine hood lock control cable assembly | 53630-02260 |
