Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 5 PNC and OE references.

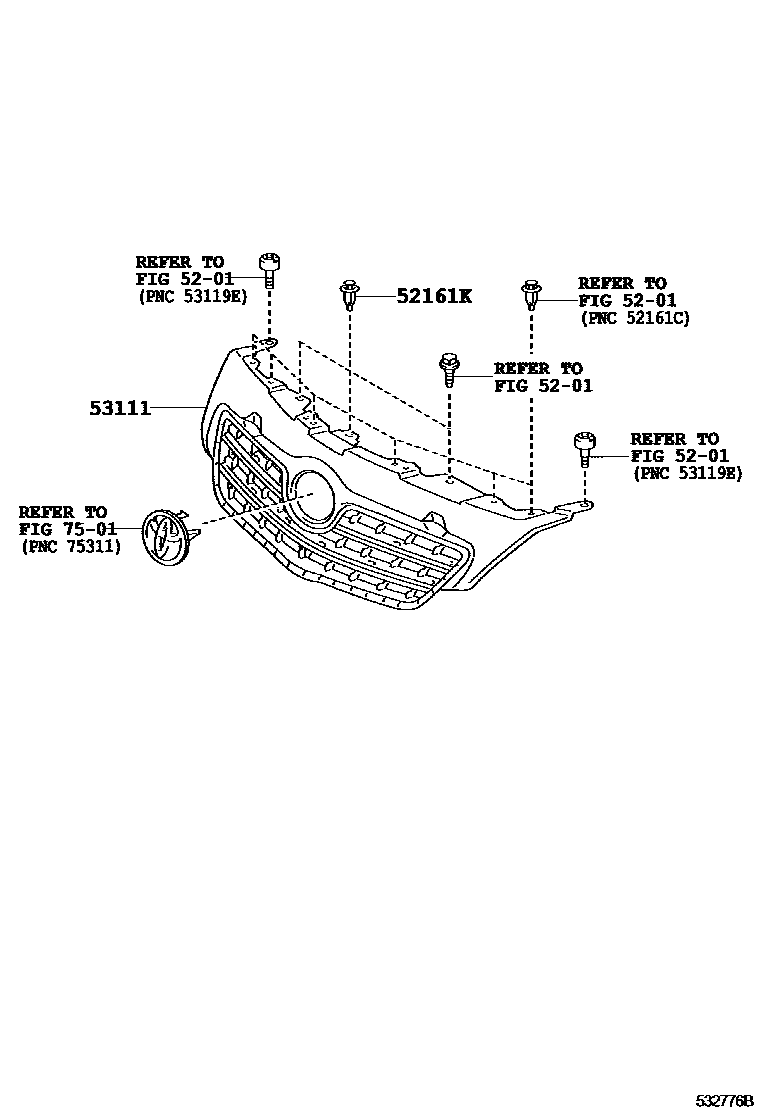

Toyota COROLLA radiator grille EPC diagram — 532776B
radiator grille — 532776B (200803 – 999999)

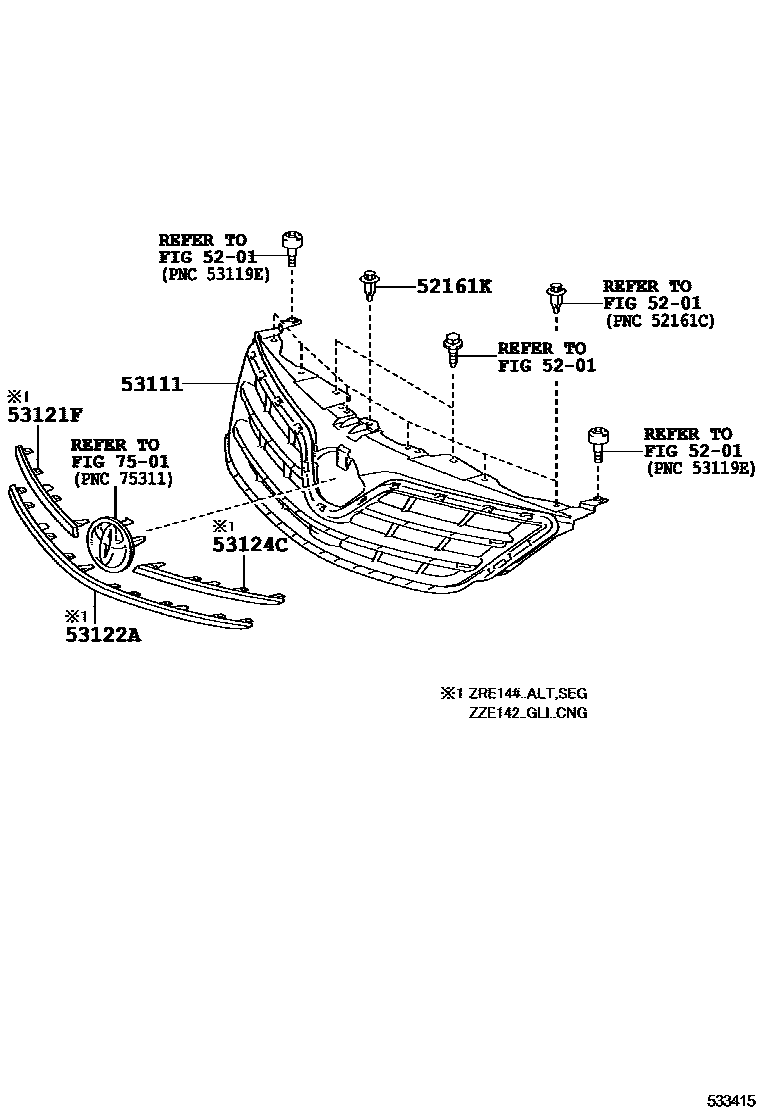

Toyota COROLLA radiator grille EPC diagram — 533415
radiator grille — 533415 (201103 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53111radiator grille53100-02320 · 53100-02330 · 53100-02340 · 53100-02490 · 53100-02907
53121FRadiator grille upper right protective strip53121-02130
53122ARadiator grille lower protective strip53122-02120
53124CRadiator grille upper left protective strip53124-02120
