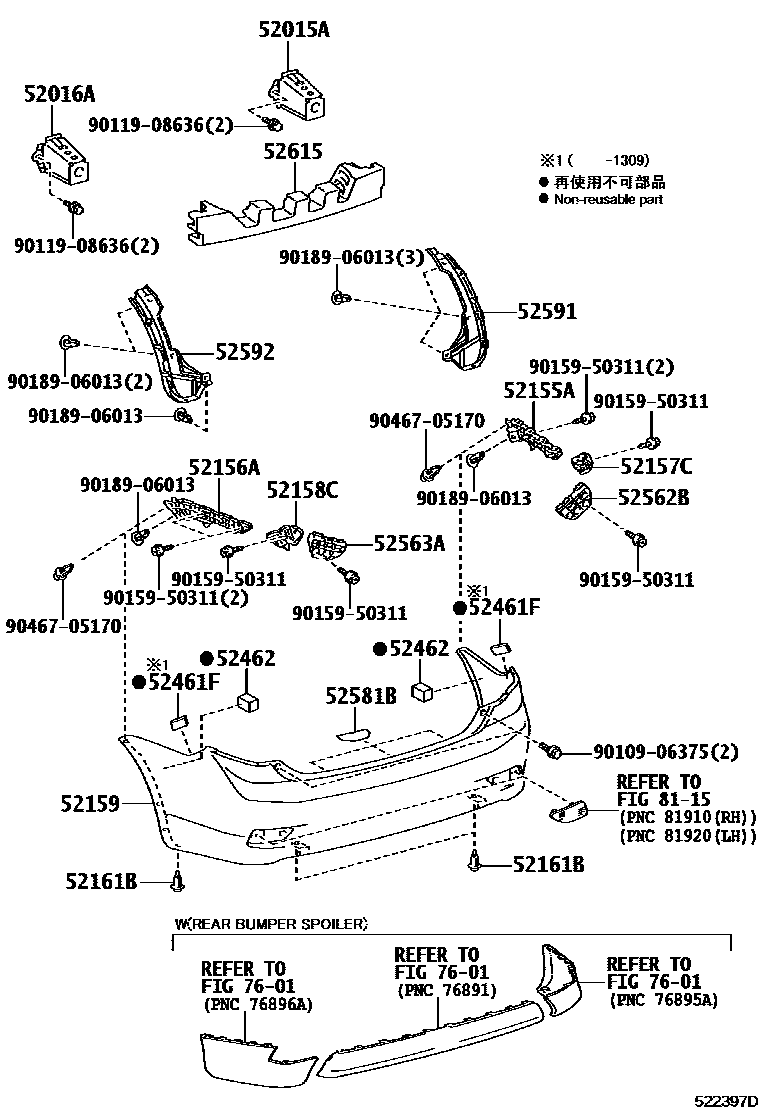

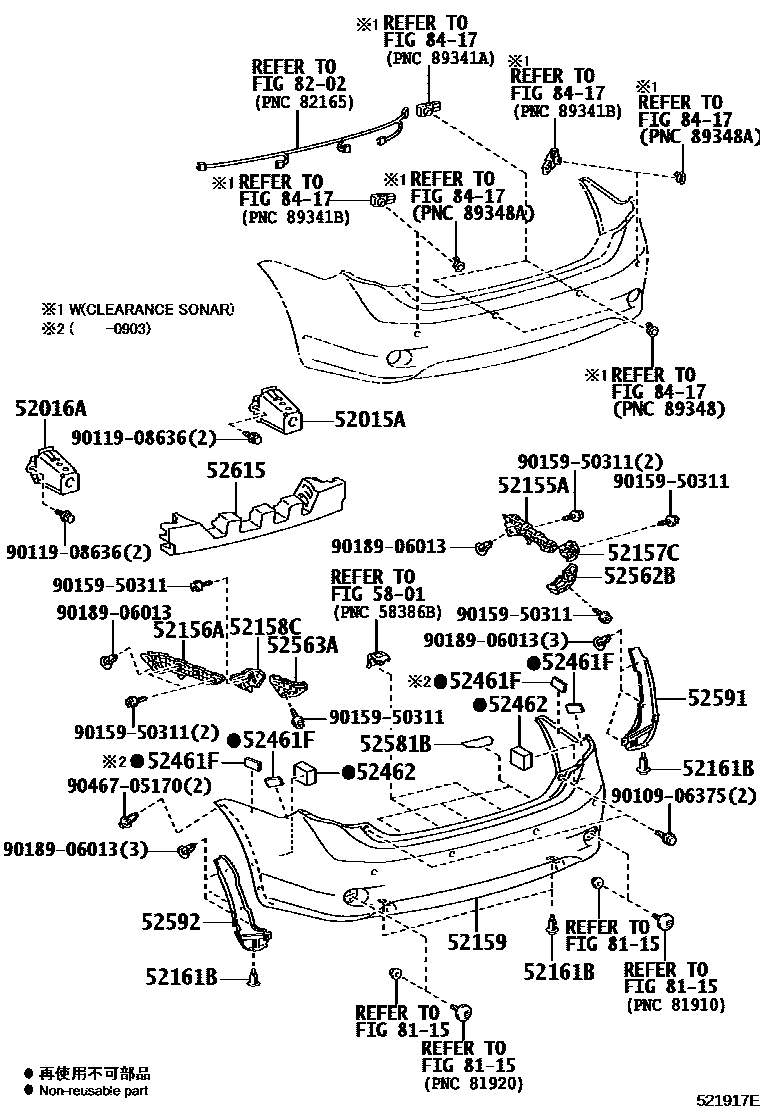

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02110 |
| 52016A | Rear bumper left arm sub-assembly | 52015-02110 |
| 52155A | Rear bumper right side bracket | 52155-02130 |
| 52156A | Rear bumper left bracket | 52156-02120 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-02060 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-02050 |
| 52159 | rear bumper cover | 52159-01912 · 52159-01914 · 52159-02965 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52461F | rear bumper lining | 52461-02060 |
| 52462 | Rear bumper right side lining | 52462-02110 · 52462-12100 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02110 · 52562-02160 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02080 · 52563-02130 |
| 52581B | rear bumper protector | 52581-13030 |
| 52591 | Rear bumper right seal | 52591-02200 |
| 52592 | Rear bumper left seal | 52592-02190 |
| 52615 | Rear bumper energy absorber | 52615-02120 |
