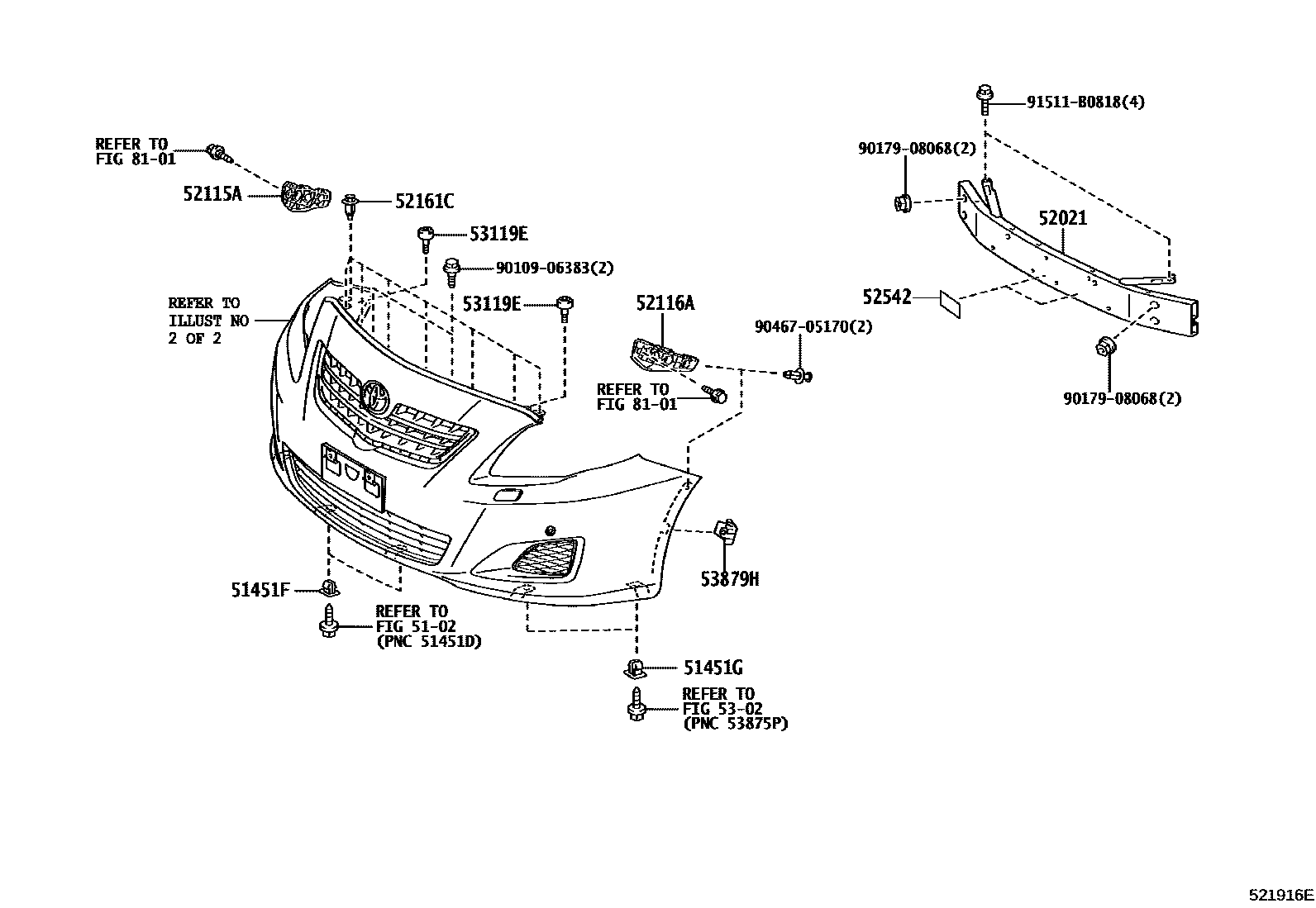

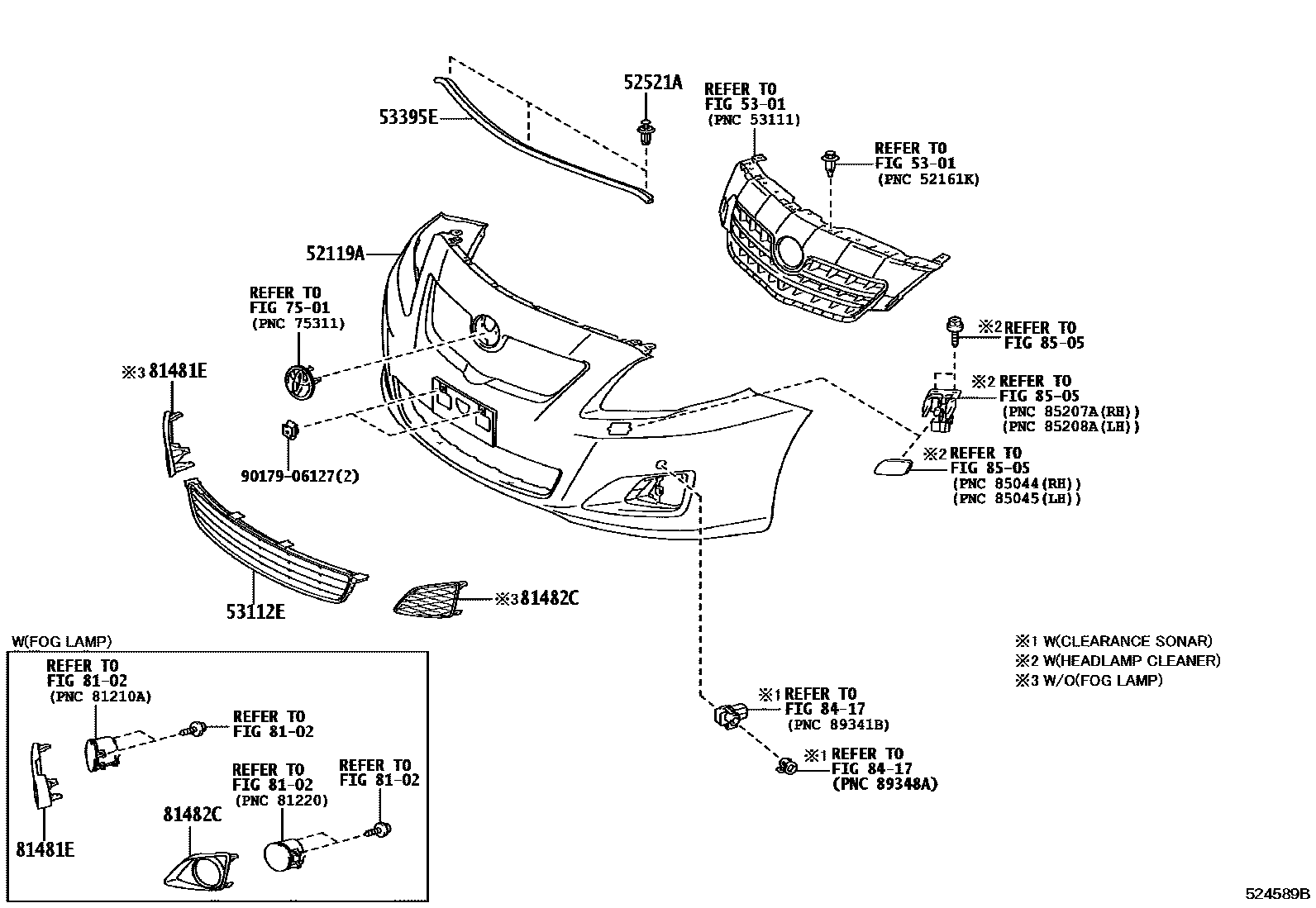

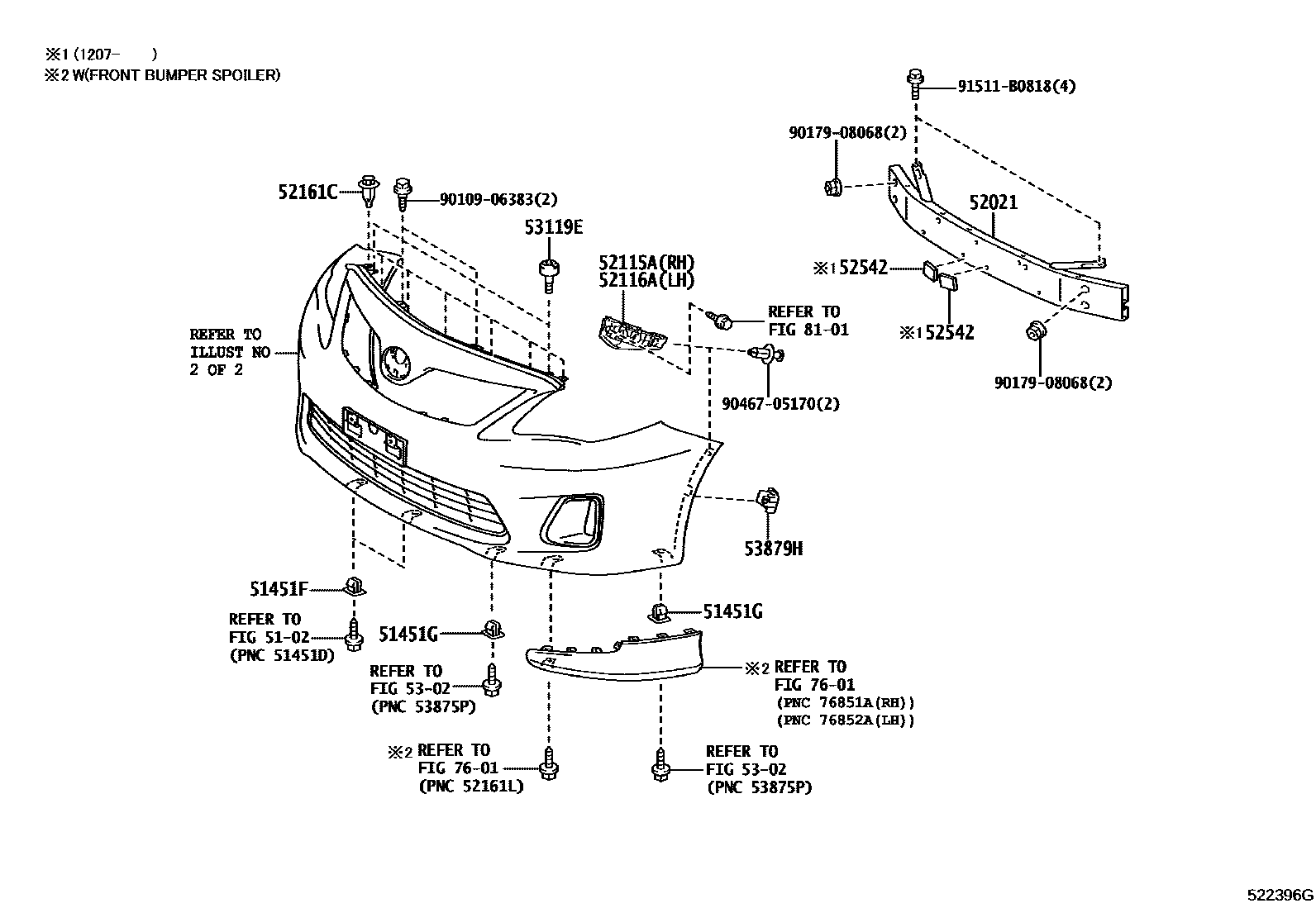

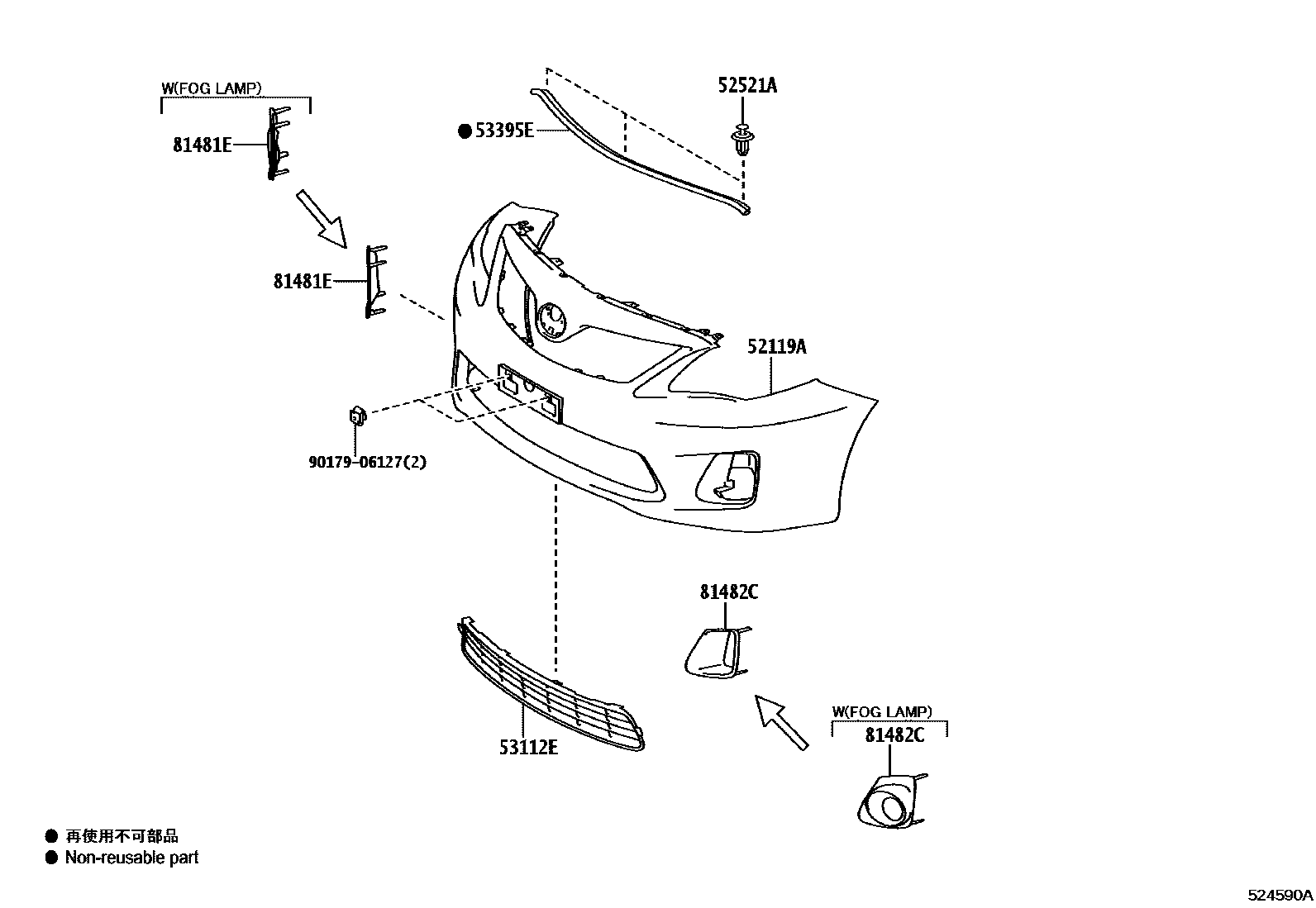

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-06193 |
| 51451G | Gasket No. 2 | 90189-06193 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-02200 |
| 52115A | Front bumper right side bracket | 52115-02150 · 52115-02200 · 52115-02201 |
| 52116A | Front bumper left bracket | 52116-02150 · 52116-02200 · 52116-02201 |
| 52119A | front bumper cover | 52119-01911 · 52119-01912 · 52119-01914 · 52119-01915 · 52119-01916 · 52119-01917 · 52119-02993 |
| 52161C | front bumper insert | 52161-16010 |
| 52542 | Front bumper center seal | 52542-02020 · 52542-02030 |
| 53112E | No. 1 radiator lower grille | 53112-02200 · 53112-02350 · 53112-02351 |
| 53119E | Radiator grille protector | 53119-12170 · 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-02060 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
| 81481E | Right fog light cover | 81481-02140 · 81481-02150 · 81481-02260 · 81481-02270 |
| 81482C | Left fog light cover | 81482-02130 · 81482-02140 · 81482-02250 · 81482-02260 |
