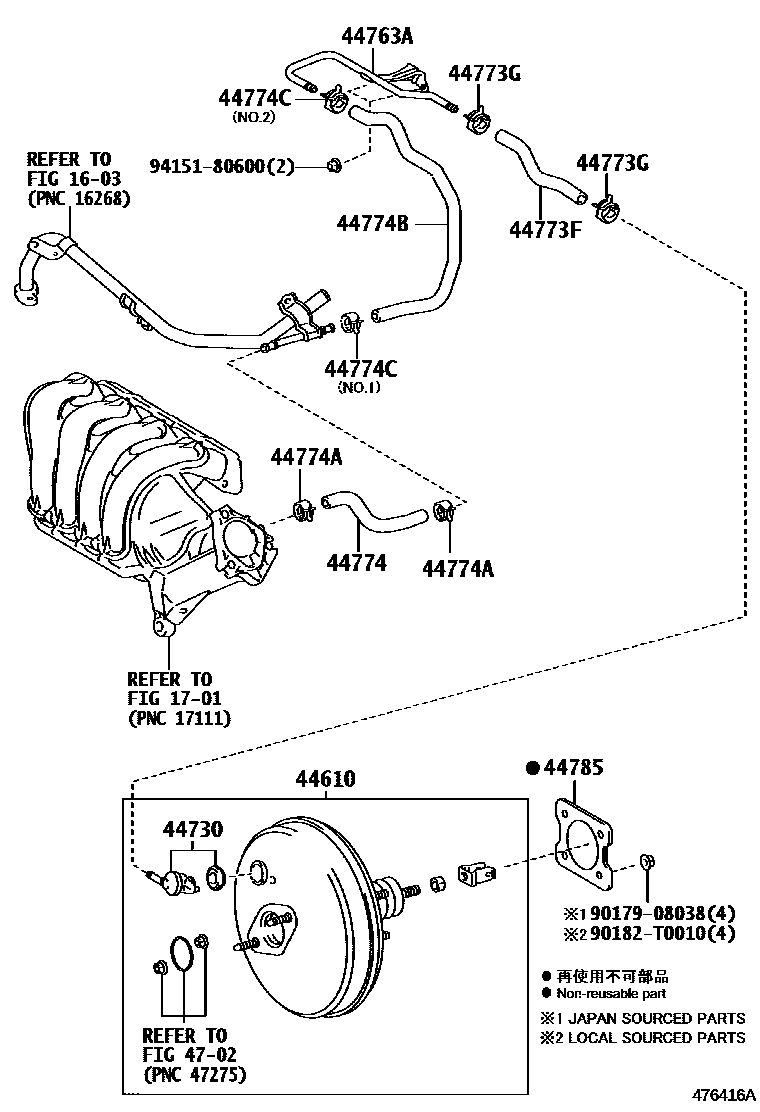

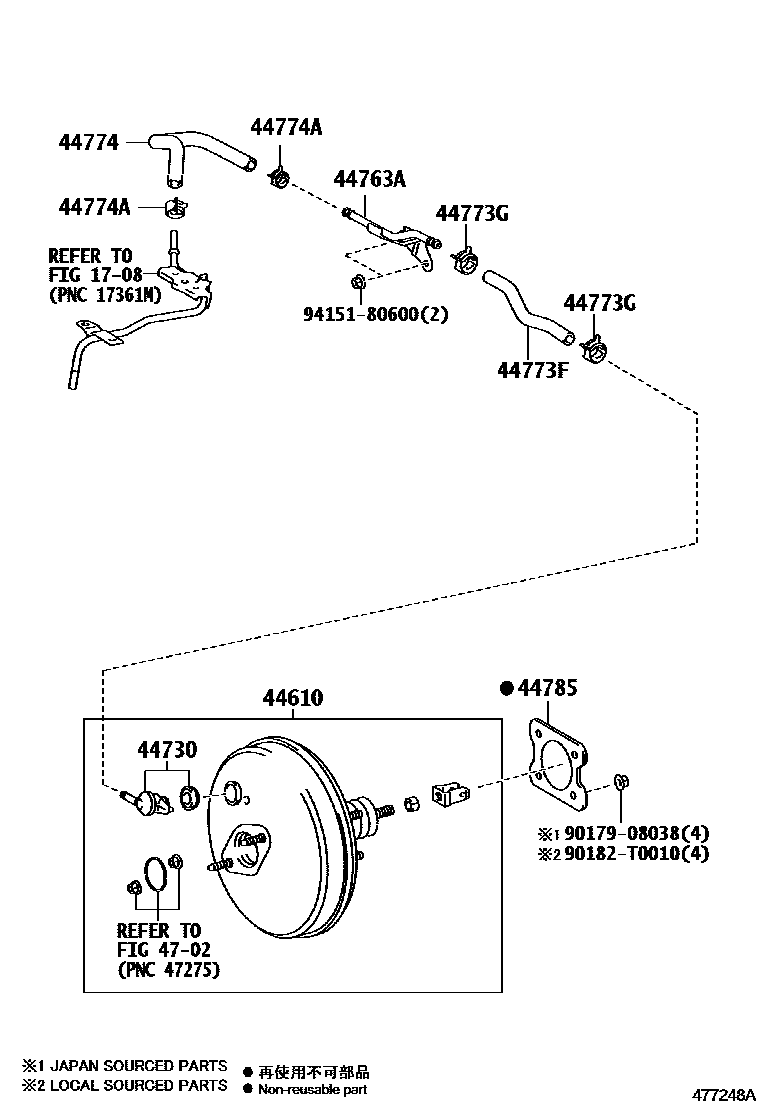

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09490 · 44610-09A10 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09020 · 44730-09060 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-02130 · 44763-02160 · 44763-02171 |
| 44773F | Hoses (connector to check valve) | 44773-02160 · 44773-02200 |
| 44773G | Clamp (for connector to one-way valve hose) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02050 · 44774-02060 · 44774-02200 · 44774-20310 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-02130 · 44774-02220 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 · 96136-51801 |
| 44785 | brake booster pad | 44785-12040 |
