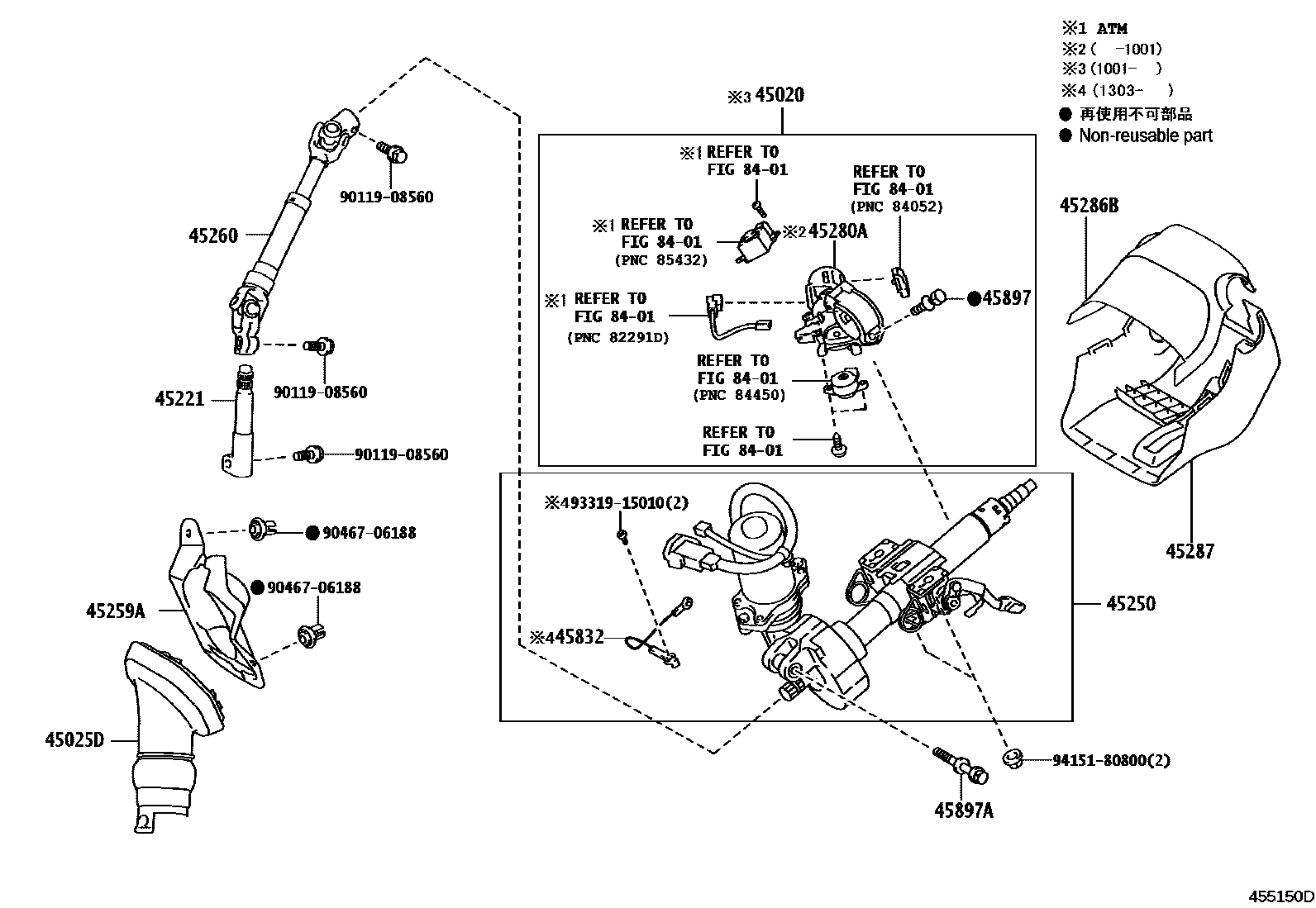

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-02230 · 45020-02231 · 45020-02240 · 45020-02241 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02170 |
| 45221 | steering intermediate shaft | 45221-12350 |
| 45250 | Steering column assembly | 45250-12E02 |
| 45259A | Steering column hole cover silencer plate | 45259-02150 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12620 · 45260-12650 · 45260-12780 |
| 45280A | Steering column upper bracket assembly | 45280-02110 · 45280-02120 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-21010 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
