Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

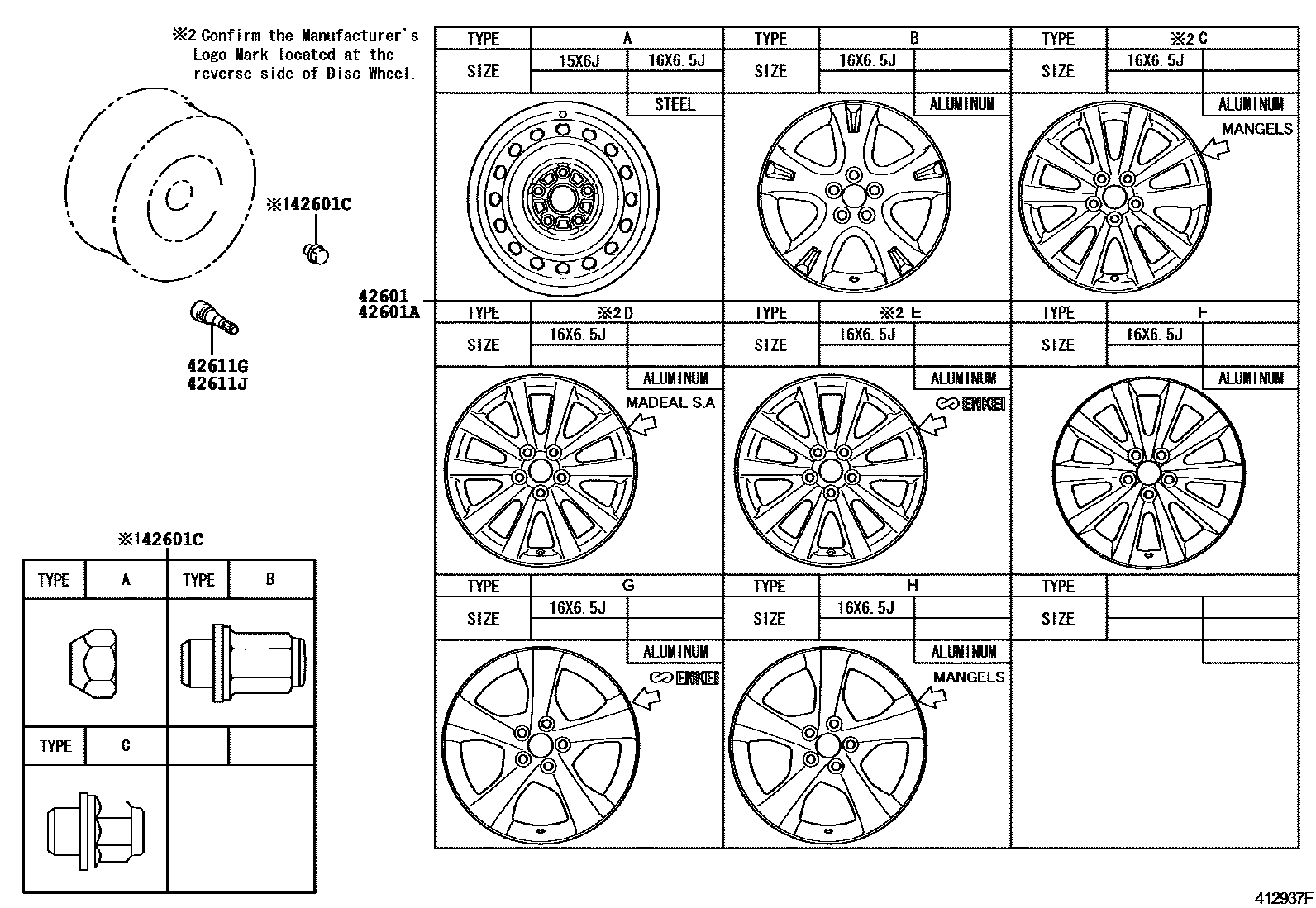

| 42601 | spoke wheel | 42611-02620 · 42611-02621 · 42611-02A90 · 42611-02B50 · 42611-02B60 · 42611-02B80 · 42611-02C10 · 42611-02D70 · 42611-02D80 · 42611-02E10 · 42611-02E11 · 42611-02E30 · 42611-02E31 · 42611-02E40 · 42611-02E50 · 42611-02F40 · 42611-02F41 |
| 42601A | Spoke wheel (for spare tire) | 42611-02A90 · 42611-02B50 · 42611-02B60 · 42611-02B70 · 42611-02C10 · 42611-02D70 · 42611-02E10 · 42611-02E11 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01058 |

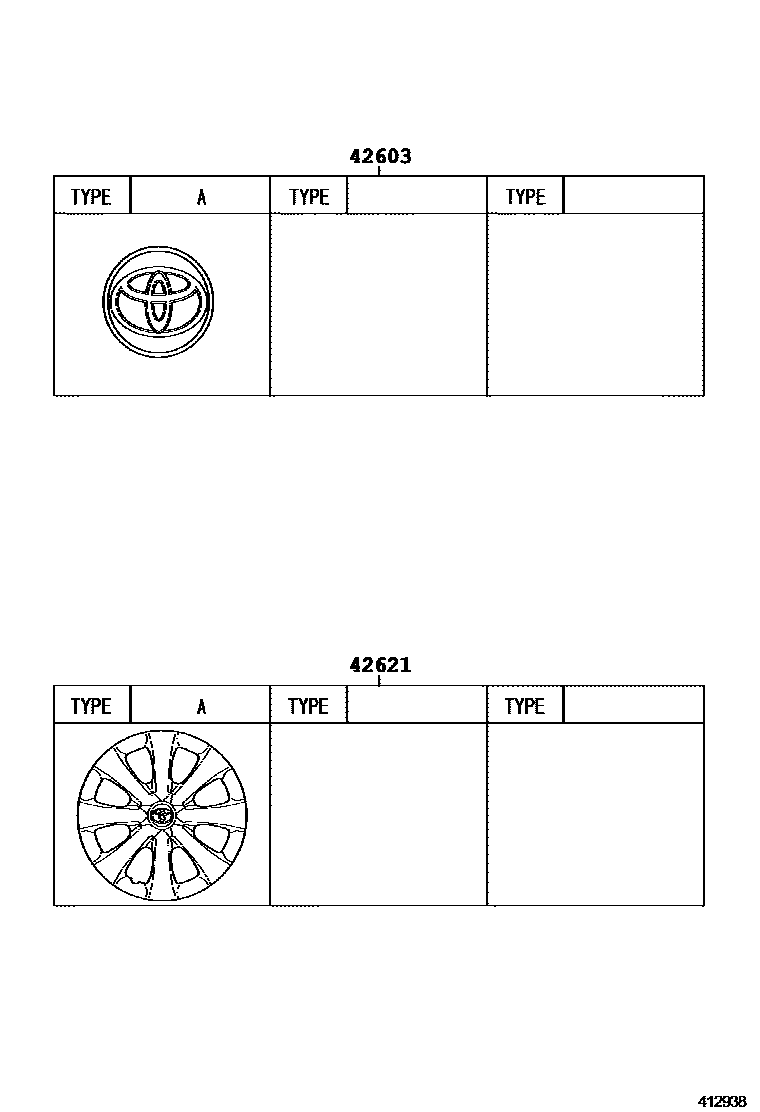

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02290 · 42603-0D070 · 42603-YY220 |
| 42611G | Valve (for tubeless tires) | 90080-94179 |
| 42611J | Valve (for tubeless spare tire) | 90080-94179 |
| 42621 | wheel cover | 42602-02300 |
