Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 4 images and 19 PNC and OE references.

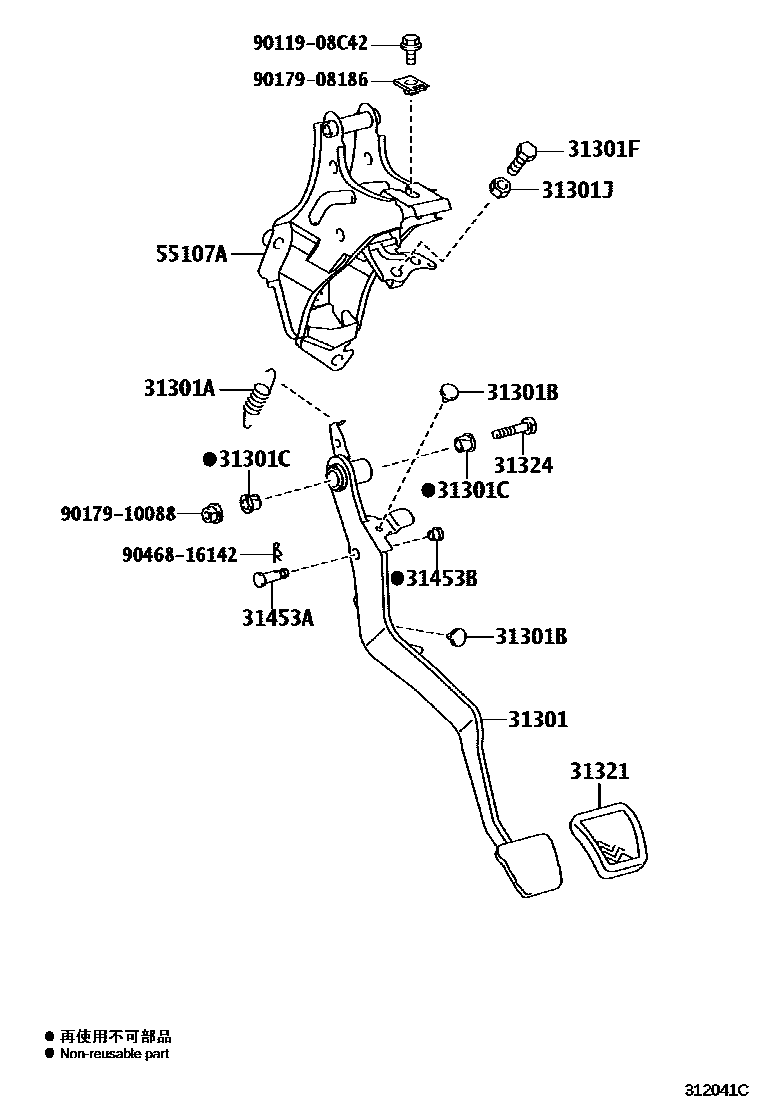

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 312041C
离合器踏板和挠性软管 — 312041C (200803 – 999999)

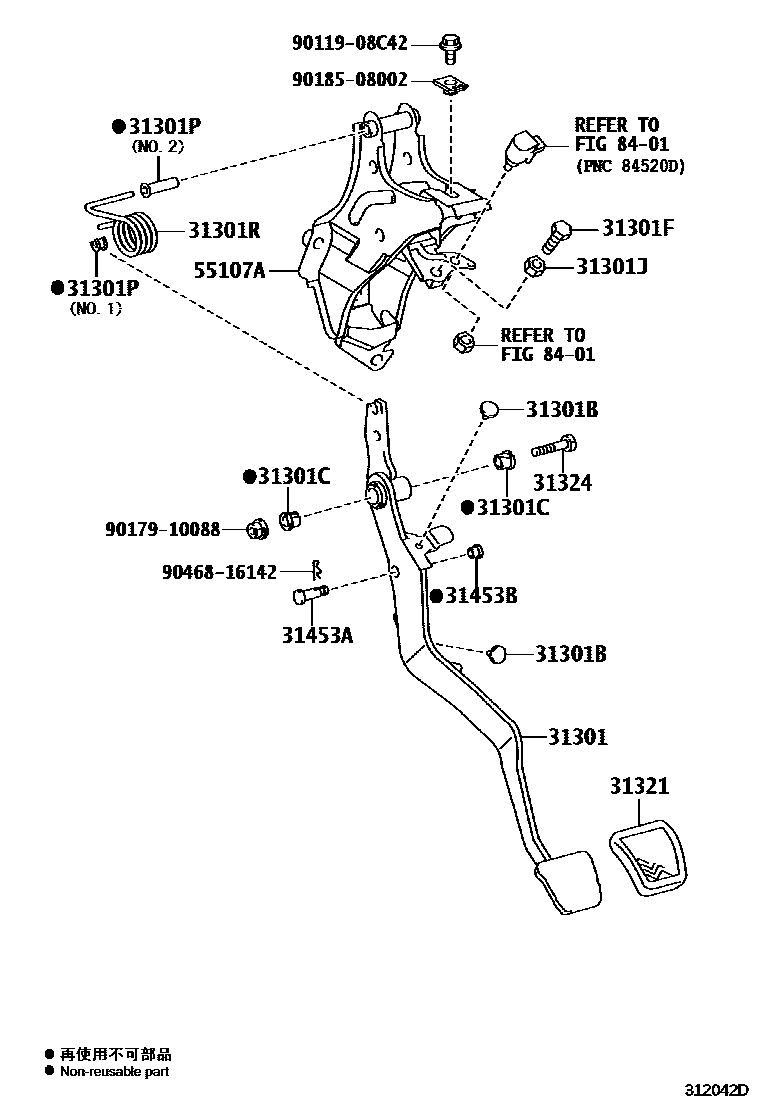

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 312042D
离合器踏板和挠性软管 — 312042D (200803 – 999999)

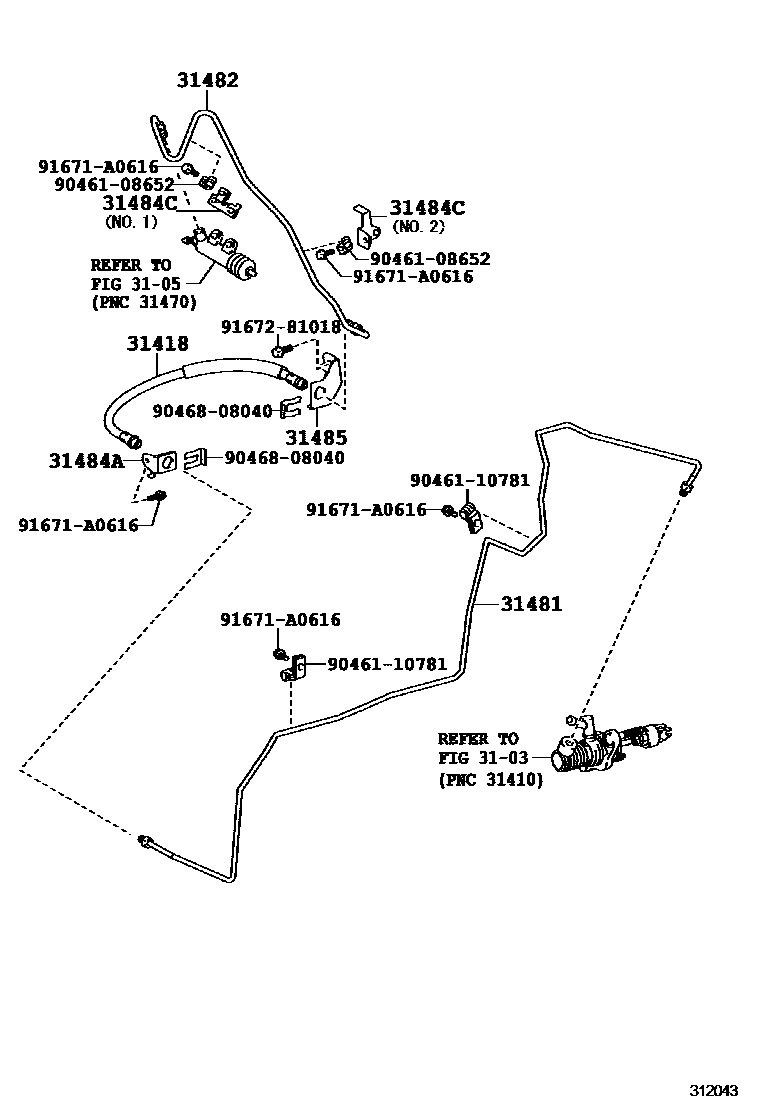

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 312043
离合器踏板和挠性软管 — 312043 (200803 – 999999)

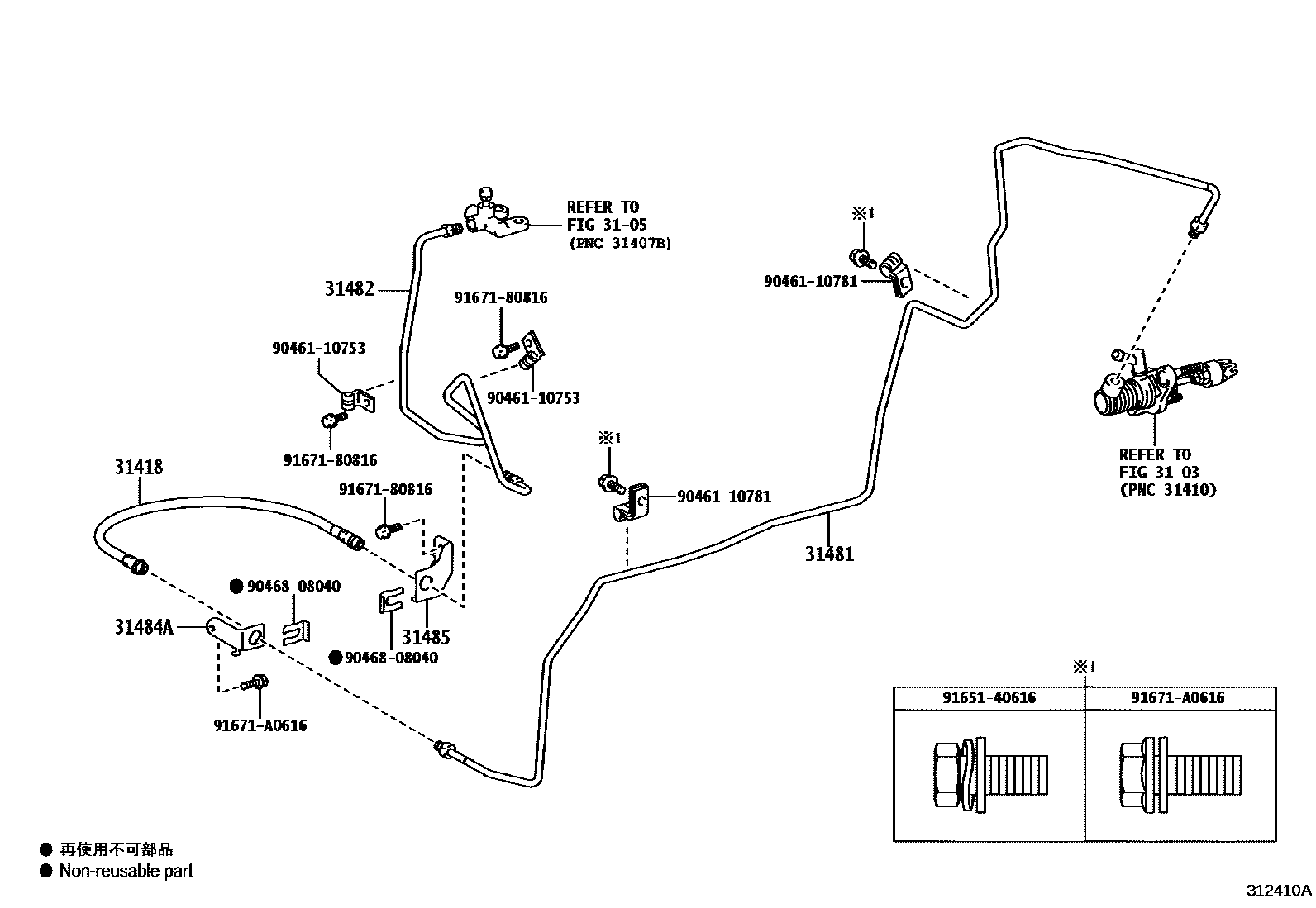

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 312410A
离合器踏板和挠性软管 — 312410A (201103 – 999999)

PNC and OE references

PNCPart nameOE numbers
31301Clutch pedal sub-assembly31301-02300 · 31301-02340 · 31301-02350 · 31301-02370 · 31301-02440
31301ASpring (for clutch pedal)90507-14047
31301BCushion pad No. 1 (for clutch pedal)90541-06036
31301CBushing (for clutch pedal)90386-13015
31301FBolt (for clutch pedal stop)90101-10055 · 90101-10369
31301JNut (for clutch pedal stop)46441-12020 · 94120-41000
31301PBushing (for clutch pedal flip-up device)90386-05017 · 90389-05019
31301RCompression spring (for flip spring seat)90949-03138
31321clutch pedal pad31321-02050
31324clutch pedal shaft90109-10174
31418clutch hose90947-T2039
31453APin with hole (for clutch master cylinder push rod U-shaped clamp)90249-08256
31453BBushing (for clutch master cylinder push rod U-shaped clamp)90386-08002
31481Clutch master cylinder to flexible hose pipe31481-02340 · 31481-02350 · 31481-02460
31482Pipe from clutch release cylinder to flexible hose31482-02340 · 31482-02350 · 31482-02430
31484ANo. 1 flexible hose bracket (for clutch)31484-12380 · 31484-12450
31484CNo. 1 clutch tube bracket31484-20460 · 31484-52150
31485No. 2 flexible hose bracket (for clutch)31484-02020 · 31484-12520
55107AClutch pedal bracket sub-assembly55107-02290 · 55107-02300 · 55107-02350 · 55107-02360 · 55107-02370
