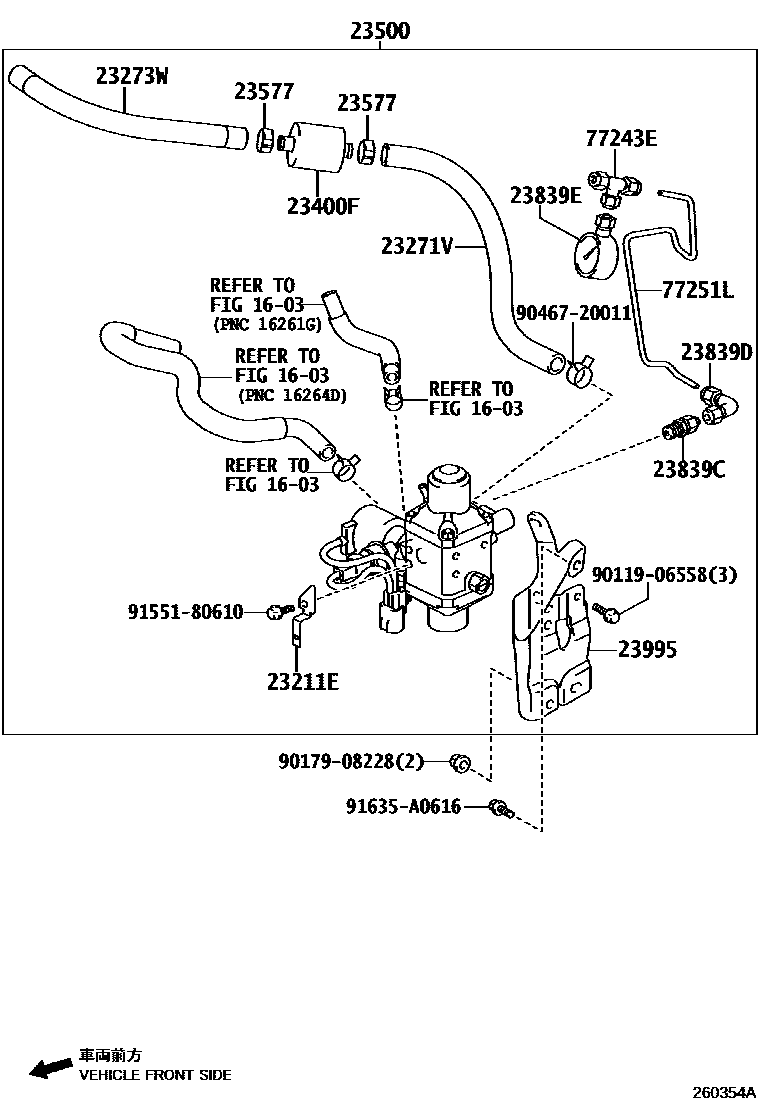

Toyota COROLLA LPG或CNG调节器 — Figure 2603
Toyota COROLLA EPC diagram 2603, LPG或CNG调节器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23211E | Bracket | 23211-22020 |
| 23271V | fuel hose | 23271-0D030 |
| 23273W | No. 2 fuel hose | 23273-YZB00 |
| 23400F | LPG filter assembly | 23400-YV010 |
| 23500 | LPG (CNG) regulator assembly | 23500-0D010 |
| 23577 | card holder | 23577-YZB00 |
| 23839C | fuel pipe plug | 23839-0D010 |
| 23839D | fuel pipe plug | 23839-0D020 |
| 23839E | fuel pipe plug | 23839-0D030 |
| 23995 | No. 1 regulator bracket | 23995-22010 |
| 77243E | No. 1 fuel pipe joint | 77243-02030 |
| 77251L | main fuel pipe | 77251-02480 |
