Toyota COROLLA Air Cleaner — Figure 1703

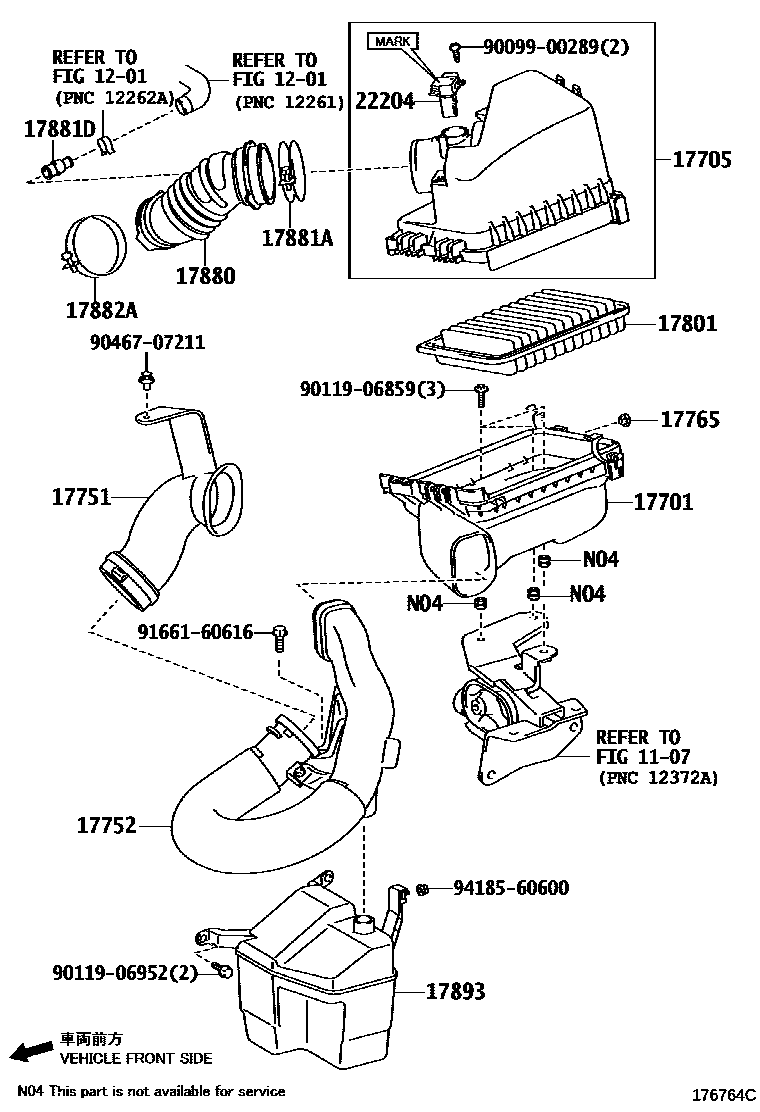

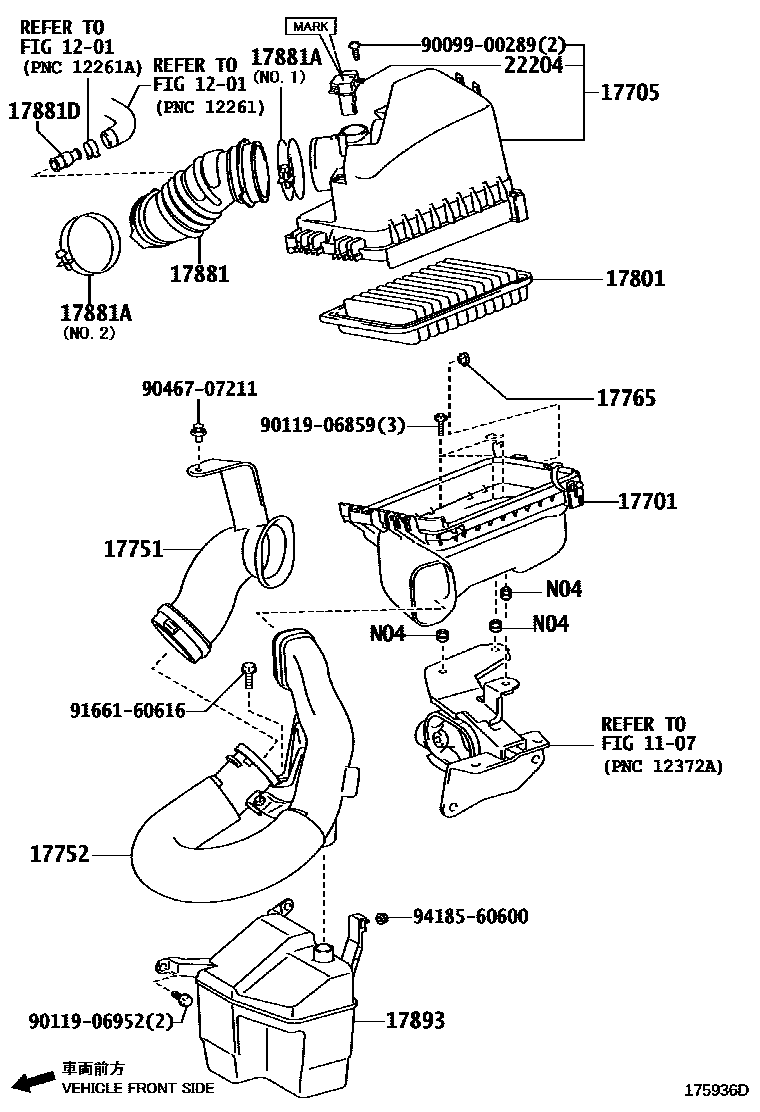

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-0D220 · 17701-0D230 · 17701-0T120 |
| 17705 | Air filter cover sub-assembly | 17705-0D260 · 17705-0D261 · 17705-0D270 · 17705-0D271 · 17705-0T150 · 17705-0T151 |
| 17751 | No. 1 air filter air inlet | 17751-37060 |
| 17752 | No. 2 air filter air inlet | 17752-37070 |
| 17765 | No. 1 air filter stay | 17706-21010 · 17706-22010 |
| 17801 | Air filter element sub-assembly | 17801-21050 |
| 17880 | Air cleaner hose assembly | 17880-0T110 · 17880-0T270 · 17880-0T280 |
| 17881 | No. 1 air cleaner hose | 17881-0D310 · 17881-0D320 · 17881-22180 · 17881-22190 · 17881-22200 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10750 · 96111-10780 · 96111-10830 |
| 17881D | Connector tube (for air cleaner hose) | 12229-21010 · 90406-28001 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10780 |
| 17893 | Intake resonator | 17893-22030 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T020 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-31020 |
