Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 8 PNC and OE references.

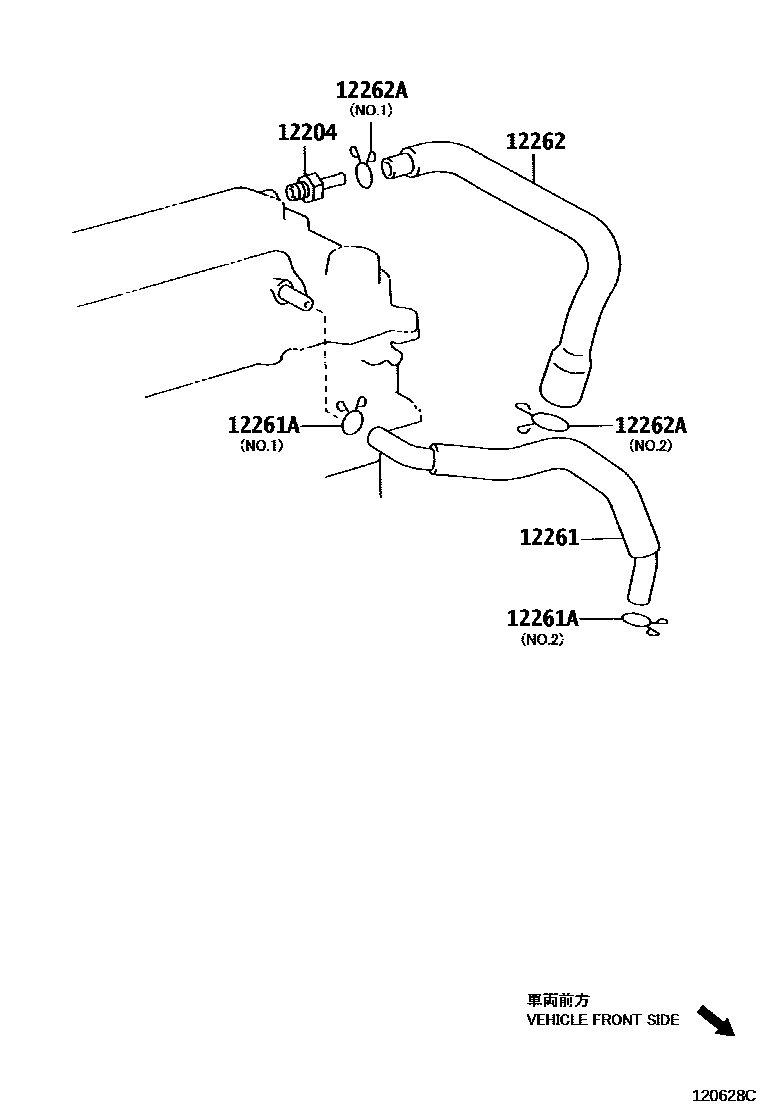

Toyota COROLLA Ventilation Hose EPC diagram — 120628C
Ventilation Hose — 120628C (200803 – 999999)

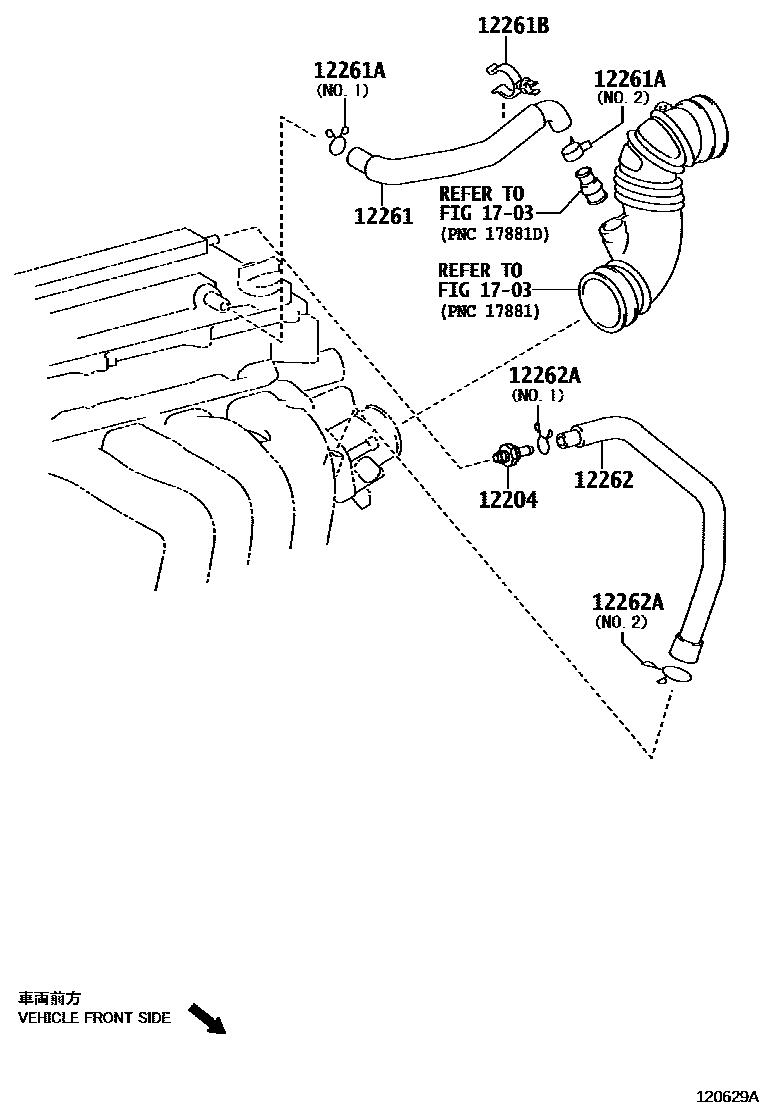

Toyota COROLLA Ventilation Hose EPC diagram — 120629A
Ventilation Hose — 120629A (200803 – 999999)

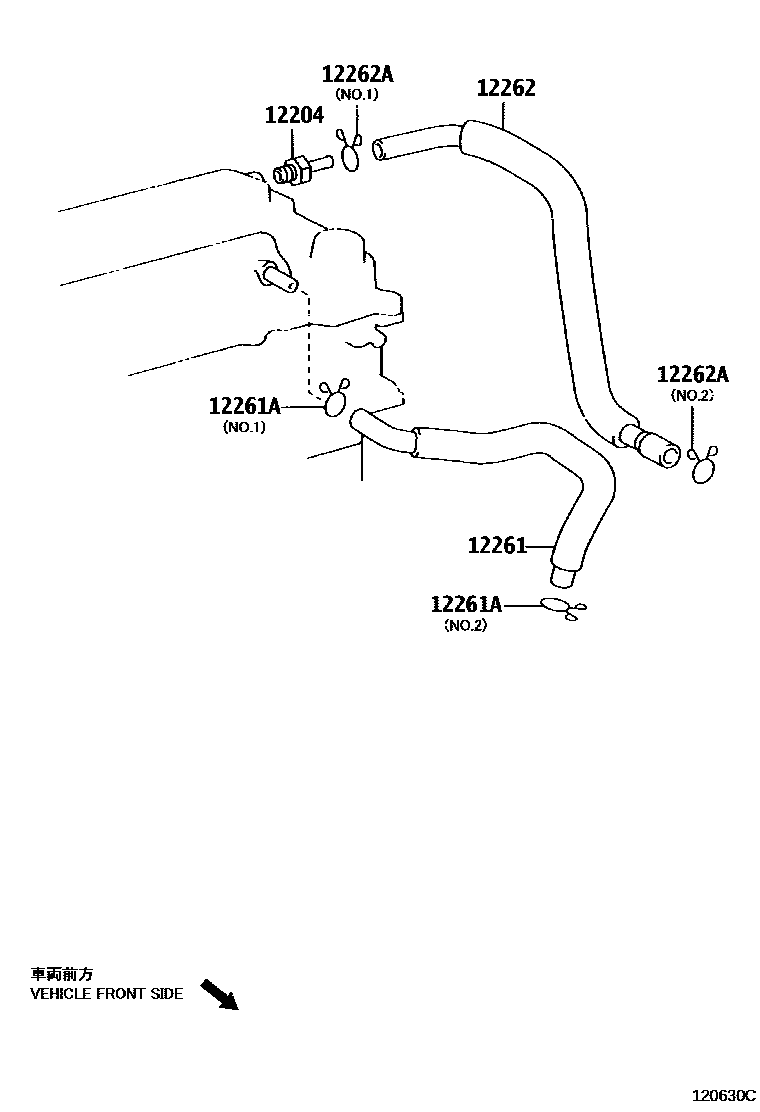

Toyota COROLLA Ventilation Hose EPC diagram — 120630C
Ventilation Hose — 120630C (200803 – 999999)

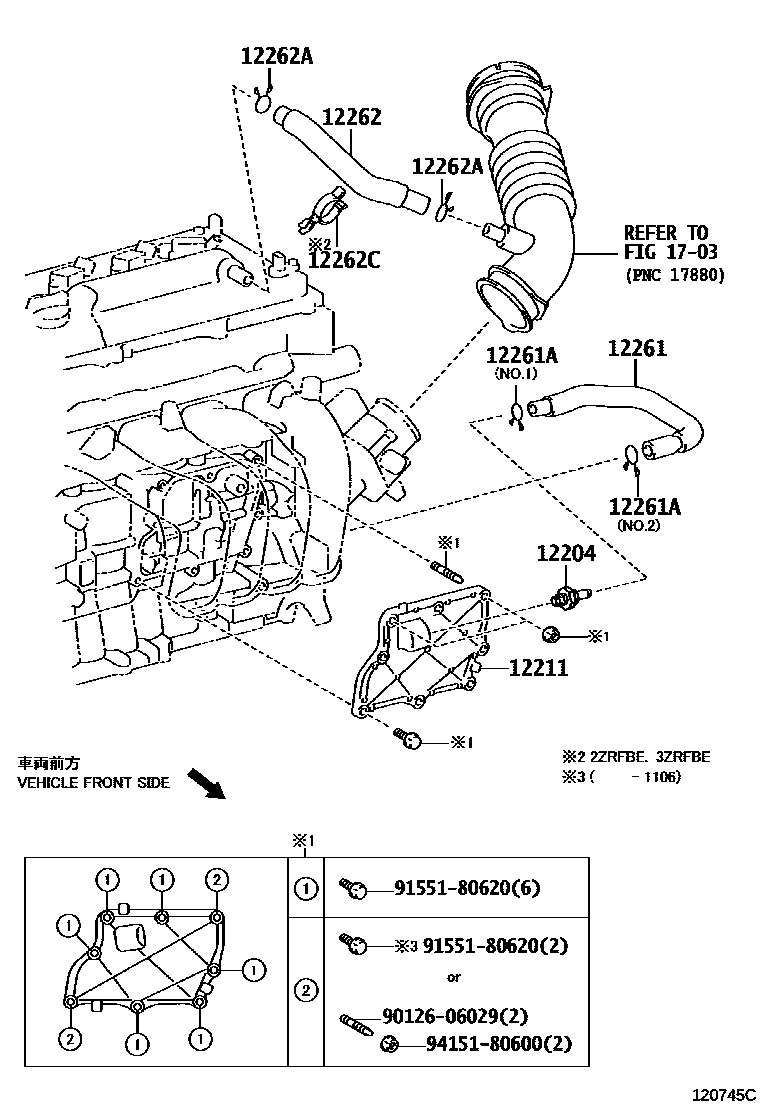

Toyota COROLLA Ventilation Hose EPC diagram — 120745C
Ventilation Hose — 120745C (201003 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22051 · 12204-22060 · 12204-37010 · 12204-37020 · 12204-37030
12211Ventilation box No. 112211-37010
12261Ventilation Hose12261-22110 · 12261-22130 · 12261-22140 · 12261-37080
12261AClip or clip (for vent hose)90467-15120 · 90467-21152 · 90467-23002 · 96134-52600
12261BClip or clip (for vent hose)90464-00913
12262Ventilation hose No. 212262-22130 · 12262-22150 · 12262-37020 · 12262-37050
12262AClamp (for vent hose No. 2)90466-18002 · 90467-13103 · 90467-19003 · 90467-21004
12262CVentilation hose clamp No. 290464-00896
