Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

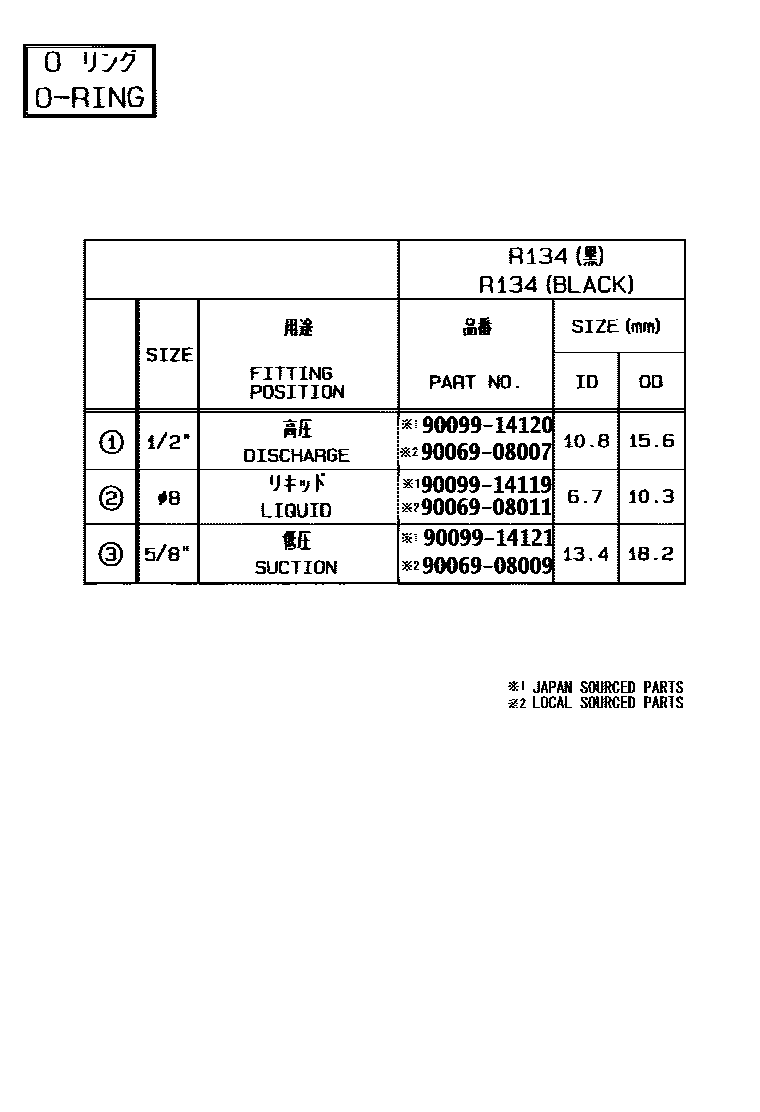

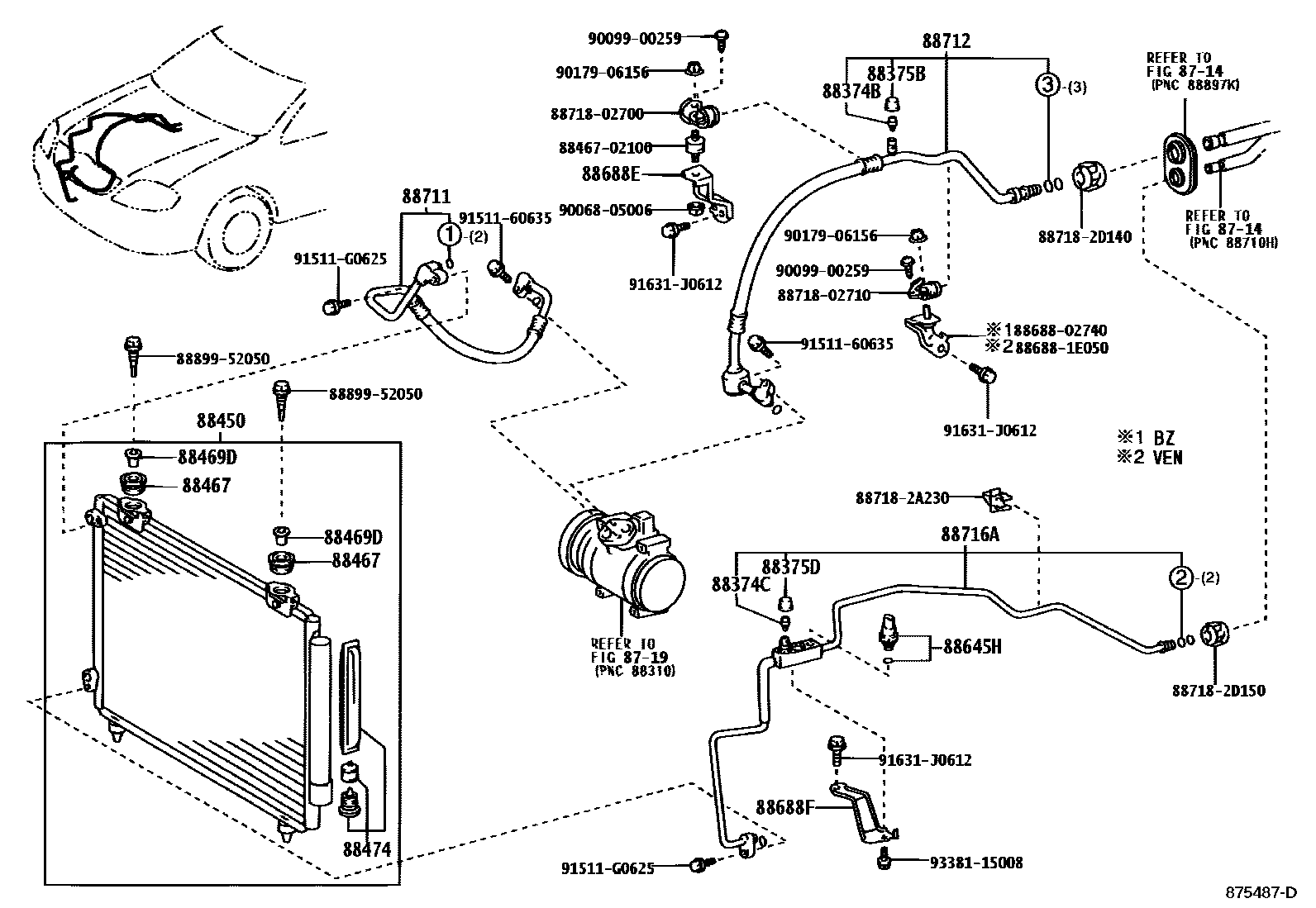

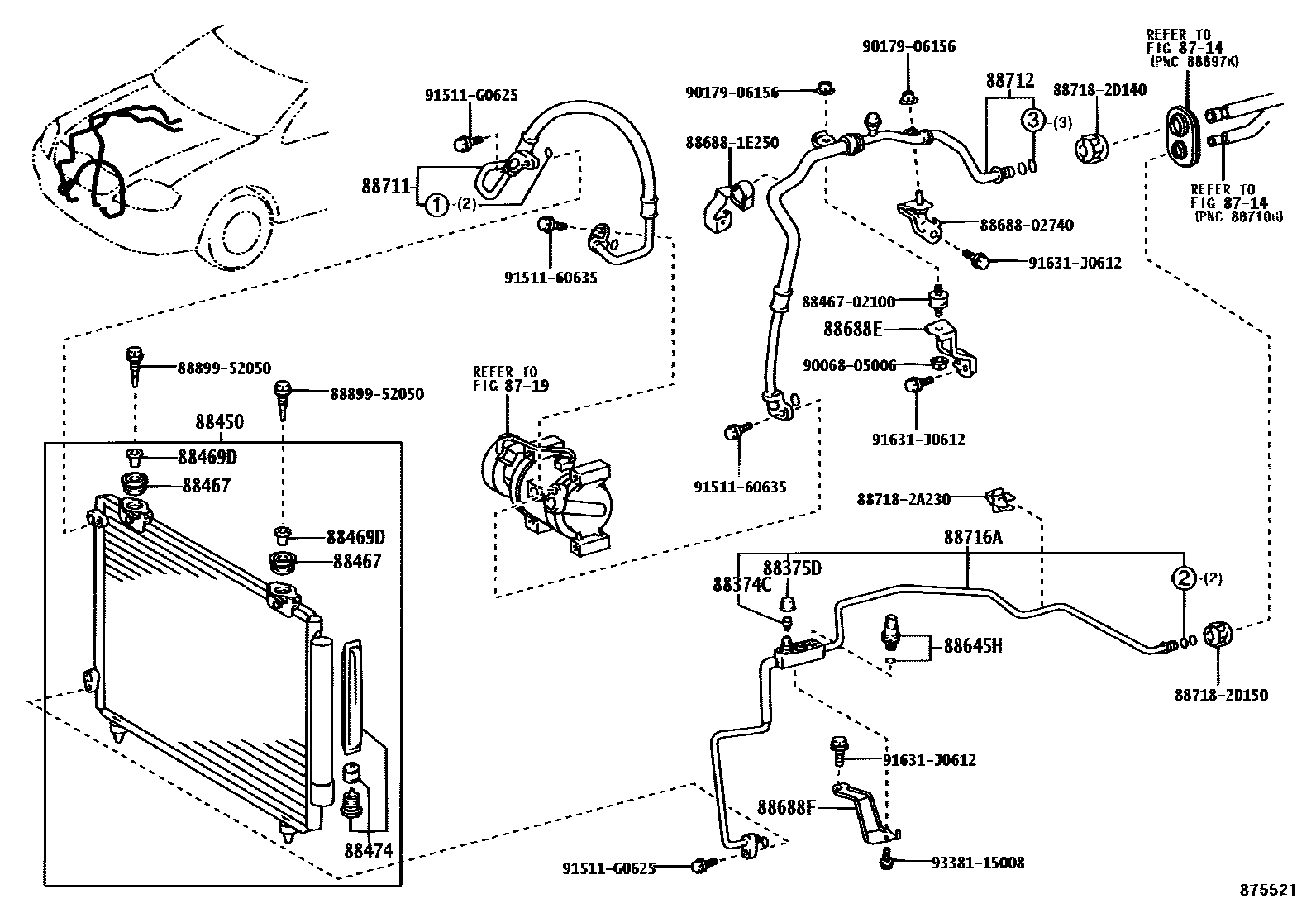

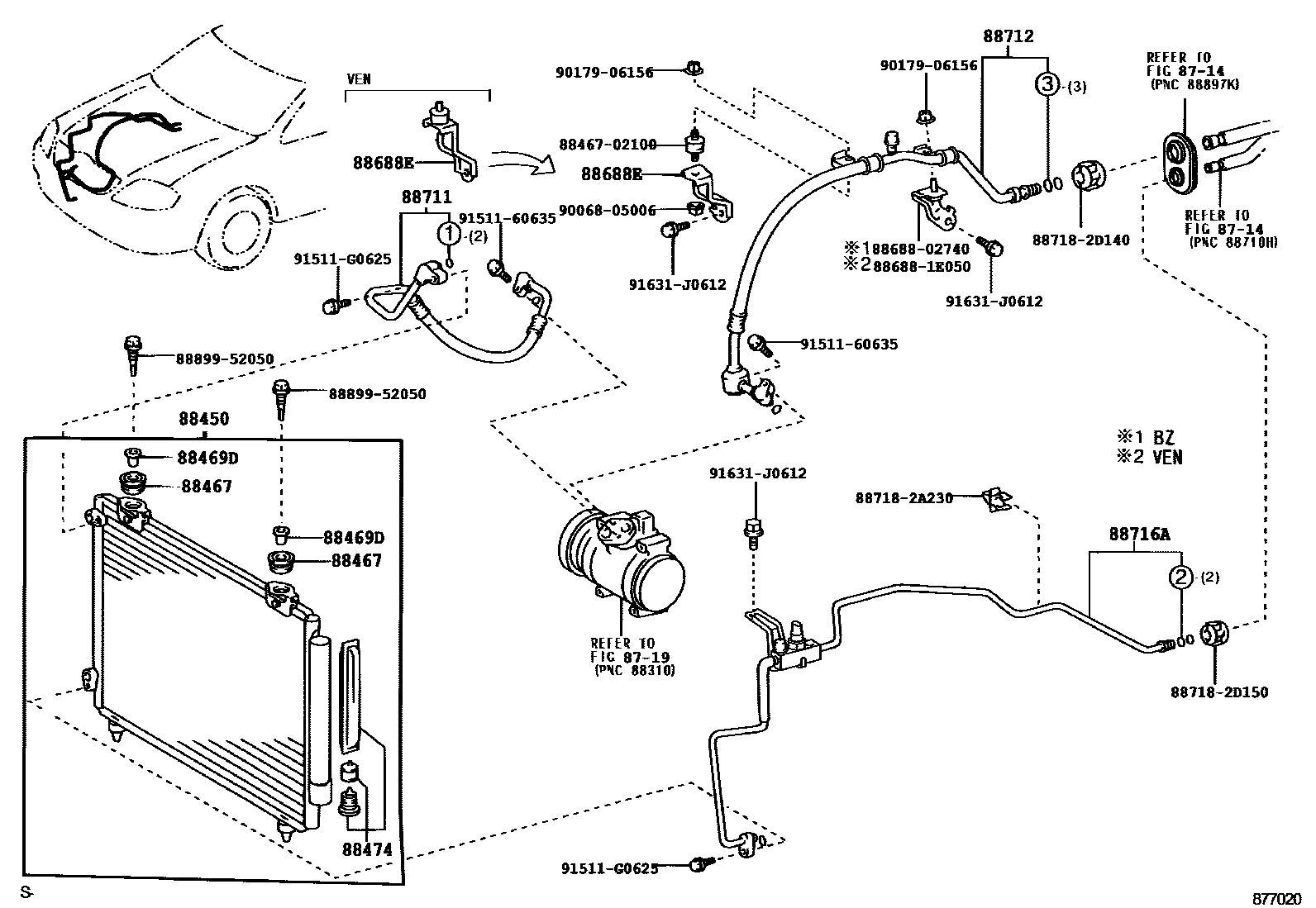

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02010 |
| 88374C | Service valve No. 2 | 88374-02010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02200 · 88450-02210 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02090 |
| 88469D | No. 1 condenser bracket collar | 88469-02030 |
| 88474 | cooler dryer | 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02830 · 88688-1E060 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02820 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-02130 · 88703-02131 · 88703-02141 · 88703-13040 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-02300 · 88704-02310 · 88704-1A020 · 88712-02280 · 88712-02340 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02400 · 88710-02410 · 88716-02420 · 88716-02540 |
