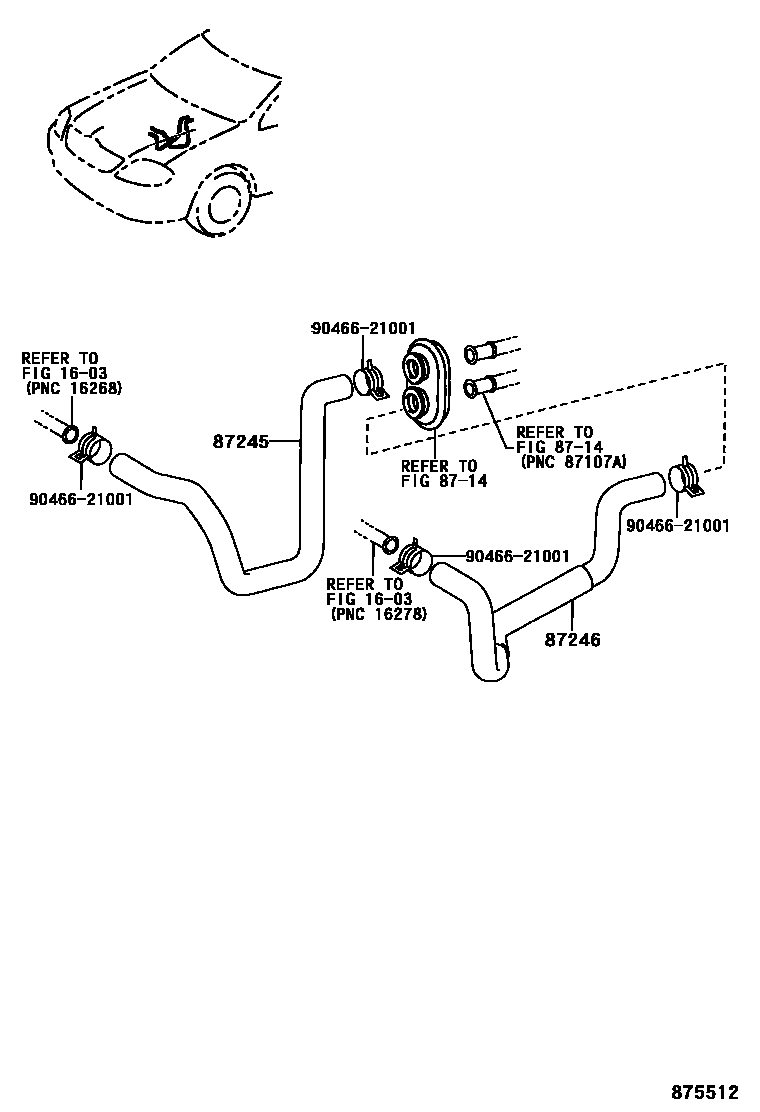

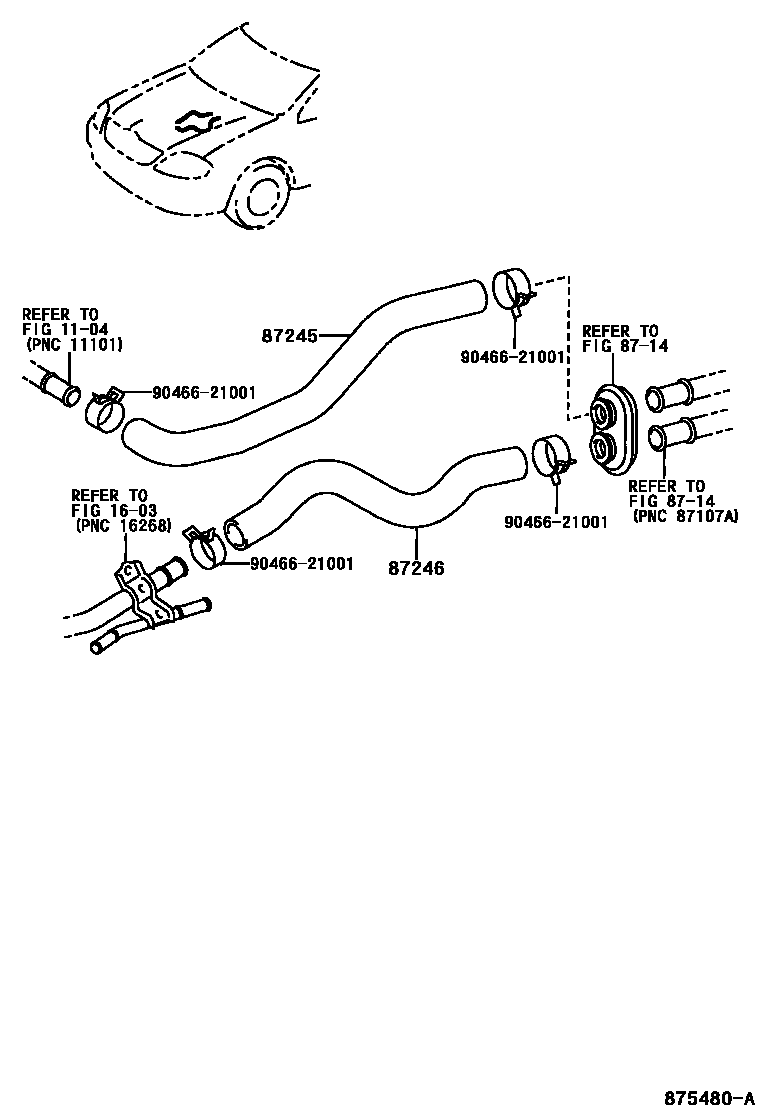

Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716
Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-02580 · 87245-13030 · 87245-1E151 · 87245-1E152 |
| 87246 | Heater outlet hose | 87245-02590 · 87245-13060 · 87245-1E160 · 87245-1E161 |
