Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

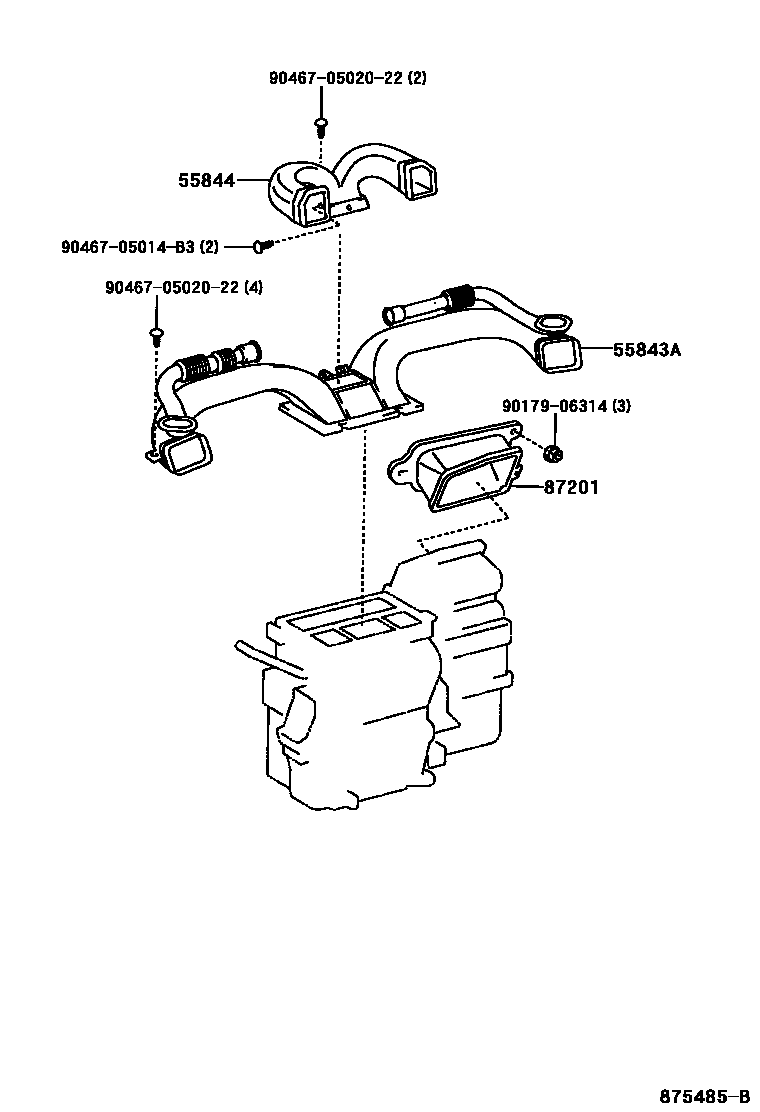

| 55843A | Air duct No. 1 from heater to air register | 55843-12290 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12470 |

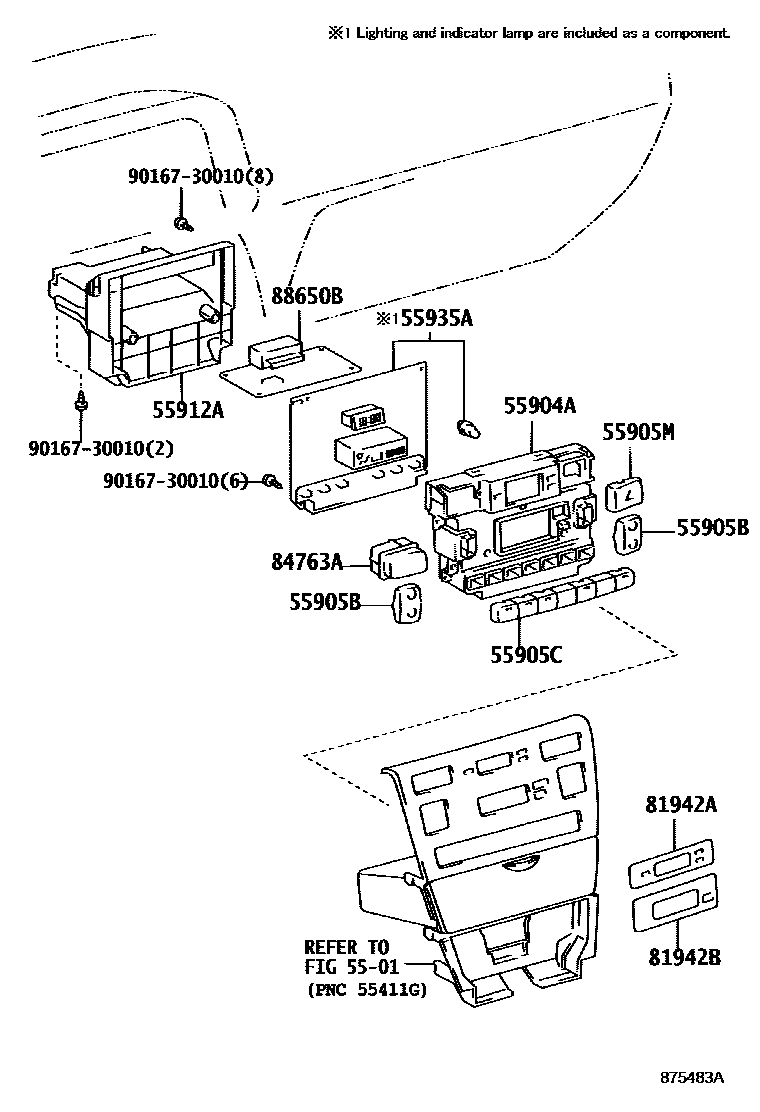

| 55900 | Air conditioning control assembly | 55900-02210 · 55900-02211 |
| 55900B | air conditioning control light bulb | 90069-98005 · 90981-WB011 |
| 55904A | Heater control housing sub-assembly | 55904-02020 · 55904-02040 |
| 55905A | Heater control button | 55905-02180 · 55905-02280 |
| 55905B | Heater control button 2 | 55905-02110 · 55905-02190 · 55905-02300 · 55905-02310 |
| 55905C | Heater control button No. 3 | 55905-02200 · 55905-02320 |
| 55905M | Control lever handle sub-assembly | 55905-02210 · 55905-02220 · 55905-02330 · 55905-02340 |

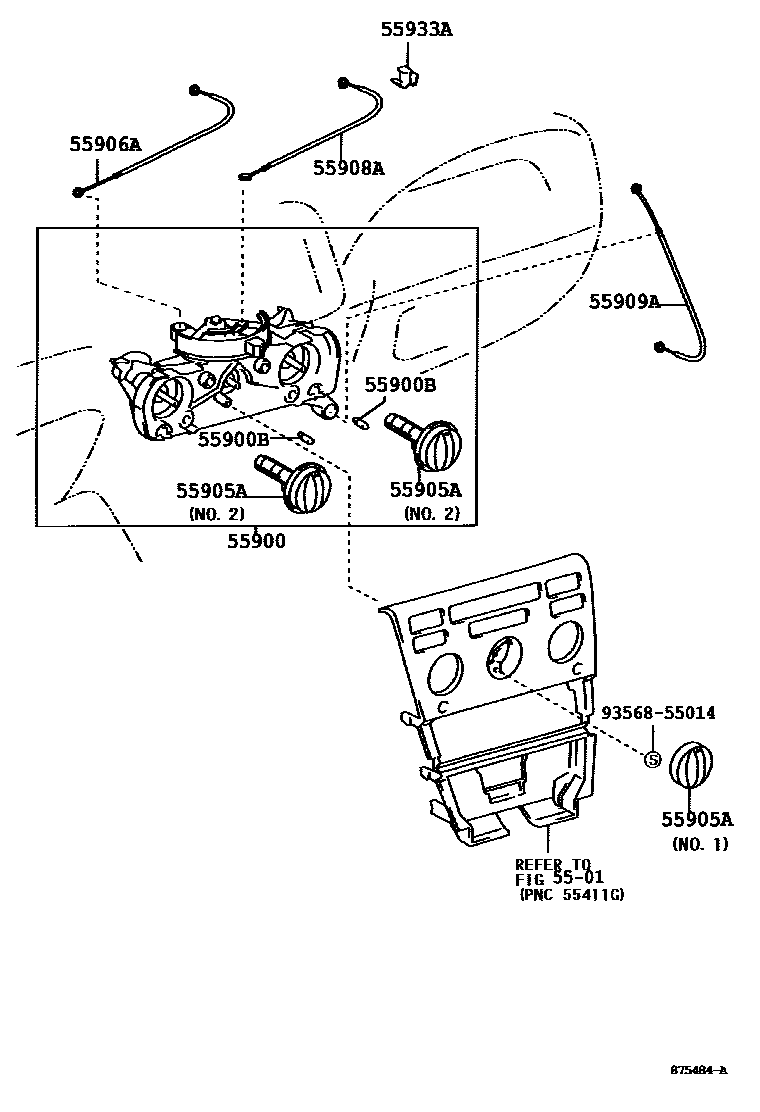

| 55906A | Defroster damper control cable sub-assembly | 55906-02080 |
| 55908A | Intake air valve control cable sub-assembly | 55908-02070 |
| 55909A | Air mix damper control cable sub-assembly | 55909-02070 |
| 55912A | heater control housing | 55912-02020 |
| 55933A | Heater control cable clip | 55933-52010 |
| 55935A | Central instrument cluster module circuit | 55935-02030 · 55935-02040 |
| 81942A | Heater No. 1 control nameplate | 81942-02140 |
| 81942B | Heater No. 2 control nameplate | 81942-02220 |
| 84763A | switch board | 84763-02030 · 84763-02060 |
| 87201 | No. 1 air duct sub-assembly | 87201-02180 · 87201-12610 |

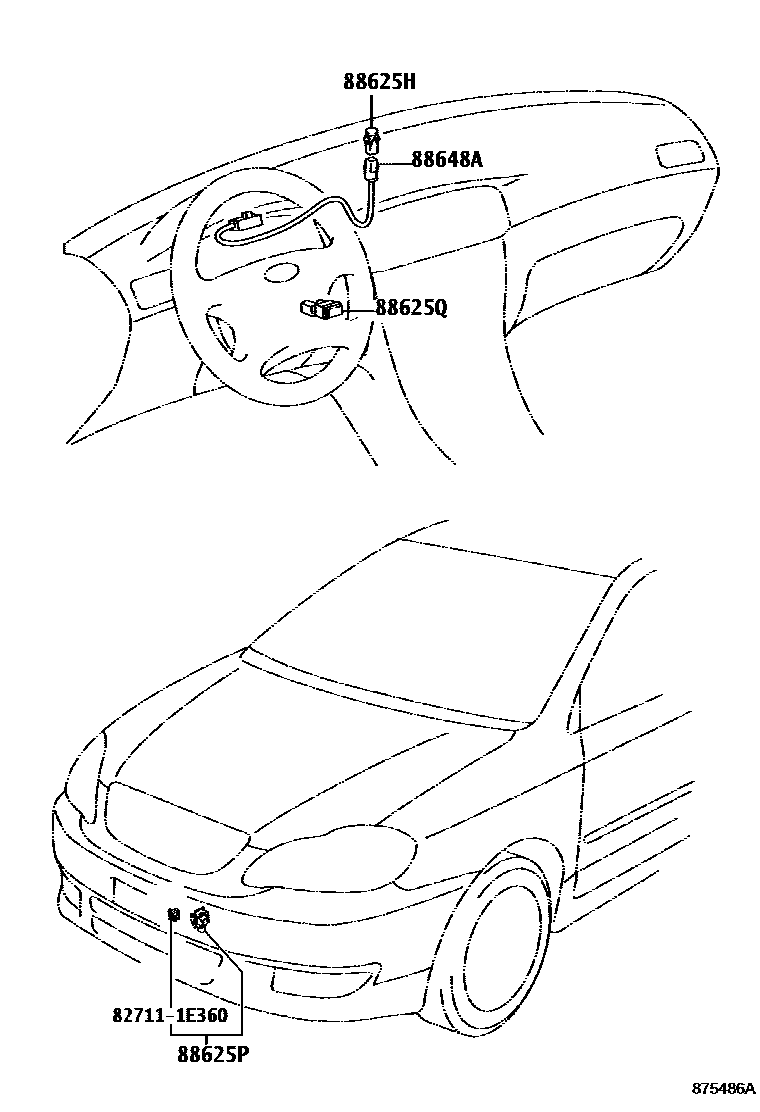

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-02110 · 88648-02170 |
| 88650B | Air conditioning amplifier assembly | 88650-13040 · 88650-1E590 |
