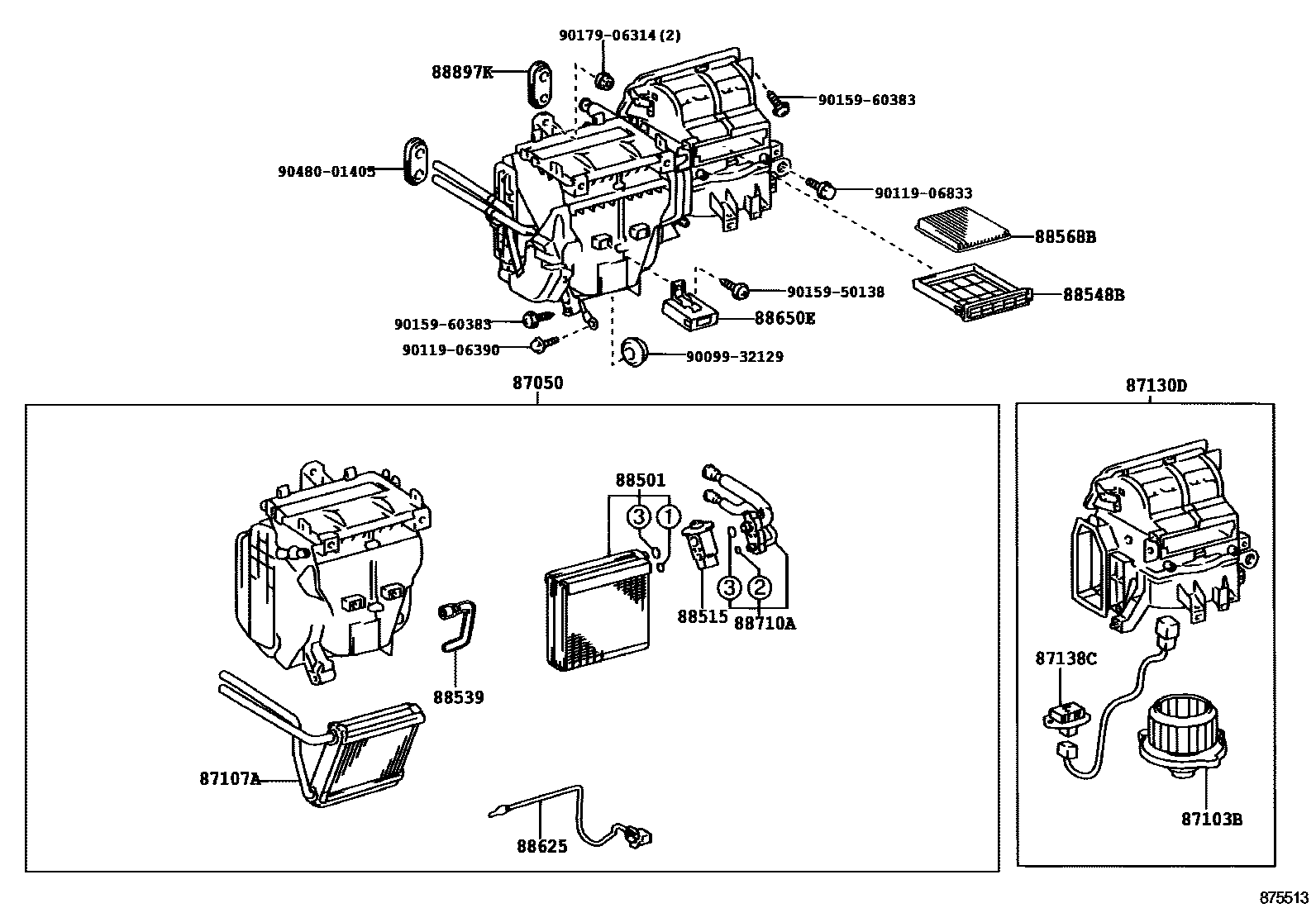

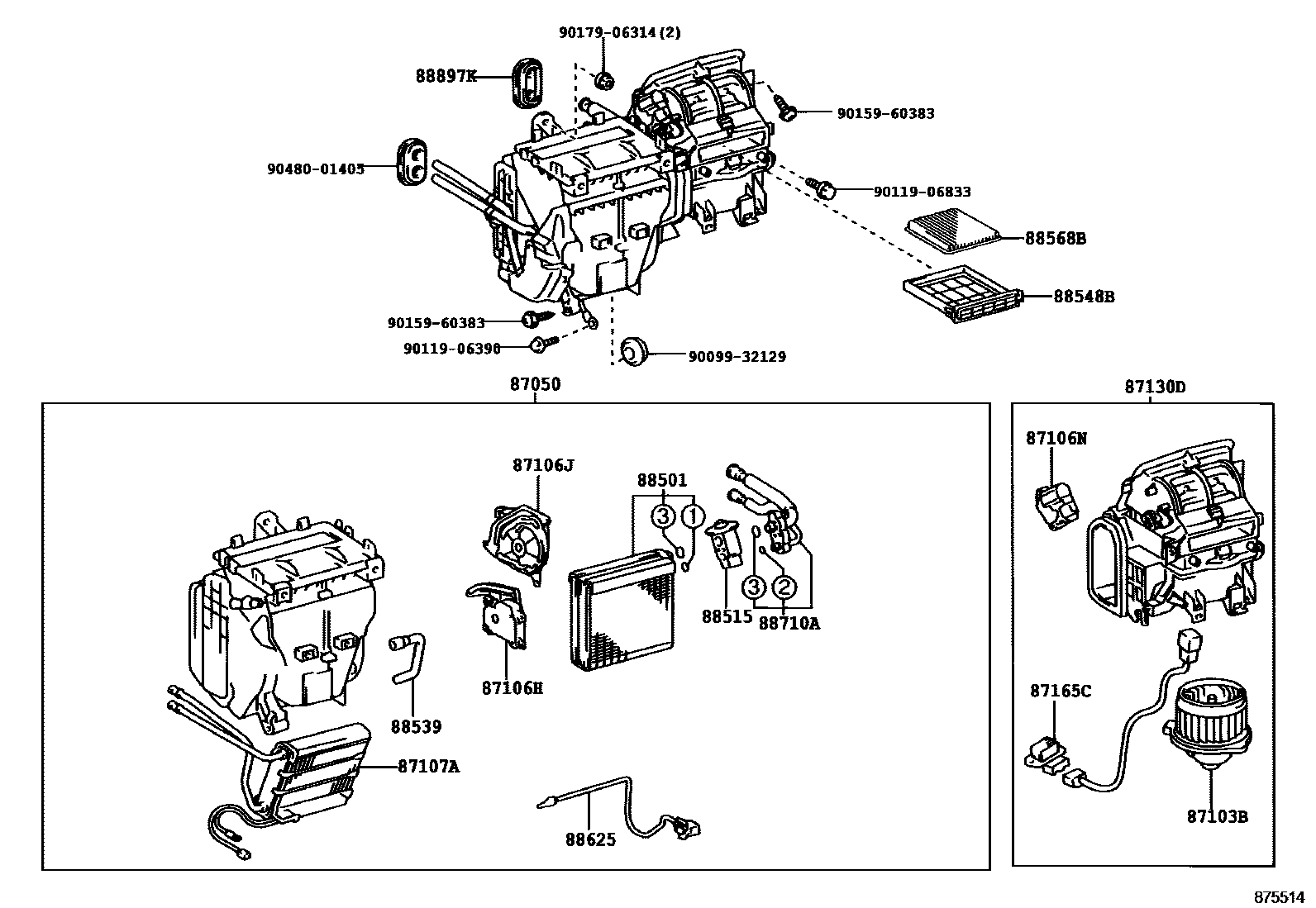

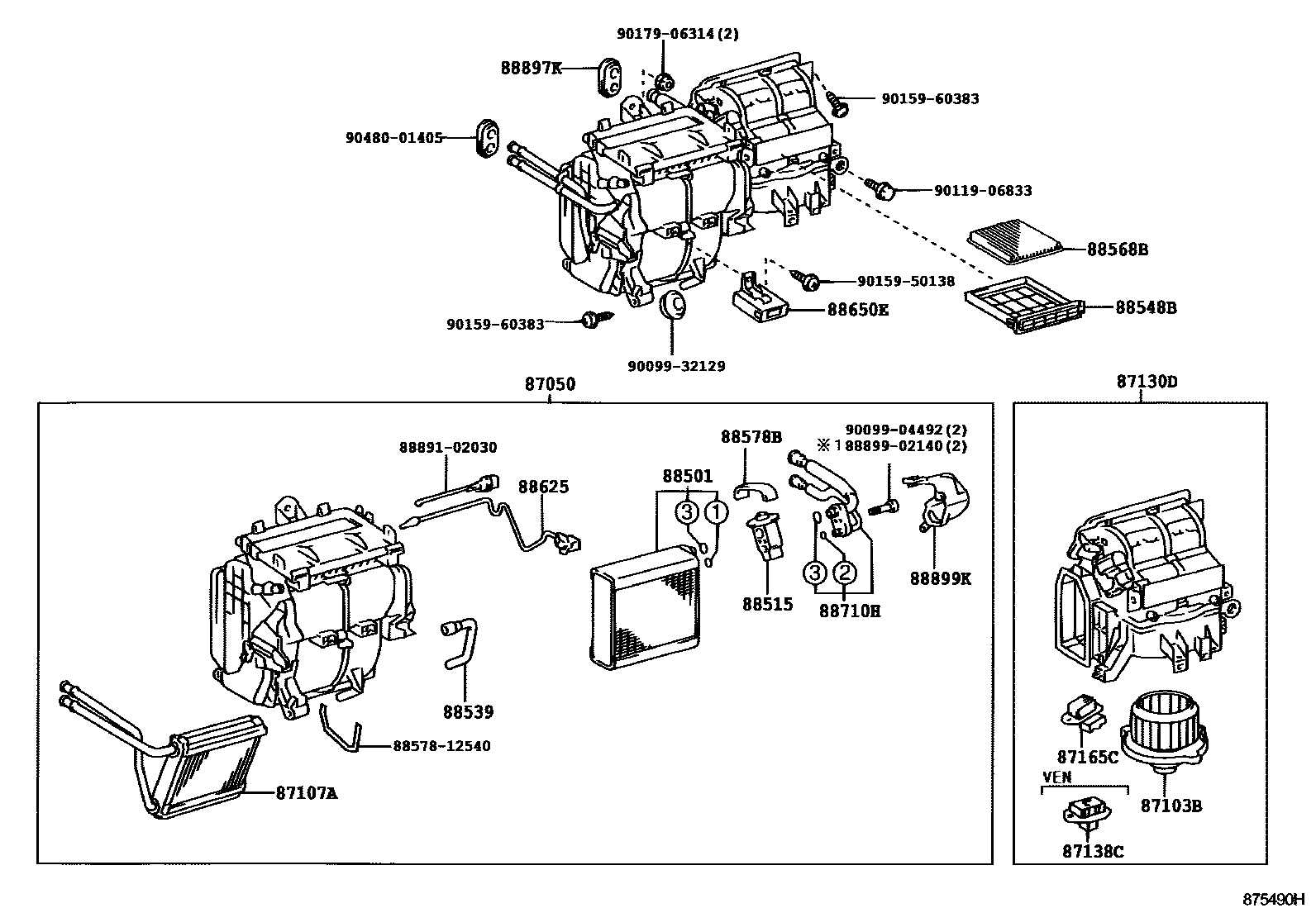

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-02160 · 87050-02170 · 87050-02180 · 87050-02190 · 87050-02200 · 87050-13060 · 87050-13090 |
| 87103B | Blower motor sub-assembly with fan | 87103-02100 · 87103-02110 · 87103-12070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12130 · 87106-12131 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-12140 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-13010 |
| 87107A | Heater radiator device sub-assembly | 87107-02170 · 87107-13020 |
| 87130D | Blower assembly | 87130-02120 · 87130-02121 · 87130-02130 · 87130-02131 · 87130-02140 · 87130-02150 · 87130-12460 · 87130-13020 |
| 87138C | Blower resistor | 87138-02060 · 87138-20360 |
| 87165C | Blower motor control device | 87165-13010 · 87165-41010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02150 · 88501-12450 |
| 88515 | Cooler expansion valve | 88515-02100 · 88515-07020 · 88515-07040 · 88515-27020 · 88515-28160 · 88515-48040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12180 |
| 88548B | air filter housing | 88548-52010 |
| 88568B | Air Cleaner | 88568-52010 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-1E410 |
| 88710A | Air conditioning pipe assembly | 88710-12550 |
| 88710H | Air conditioning pipe and accessories assembly | 88710-02450 |

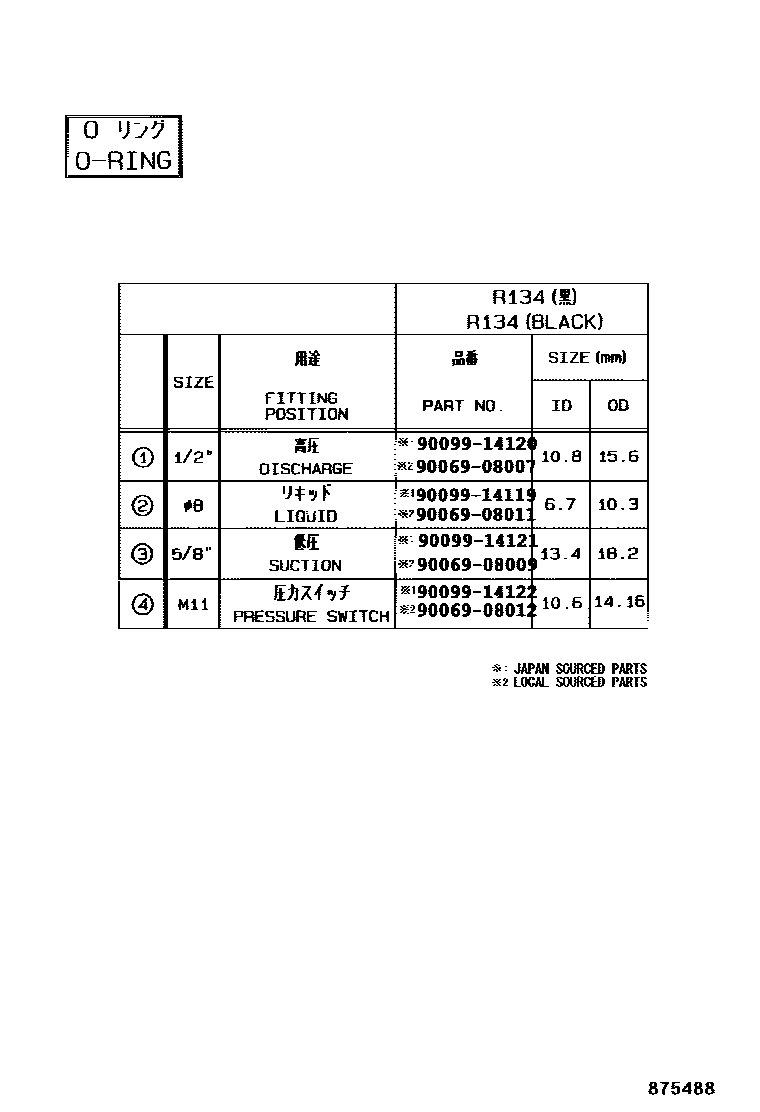

| 88897K | Seals (for cooler tubes) | 90480-01434 · 90950-01559 |
| 88899K | Cover plate | 88899-02150 |
