Toyota COROLLA 后视镜 — Figure 8701

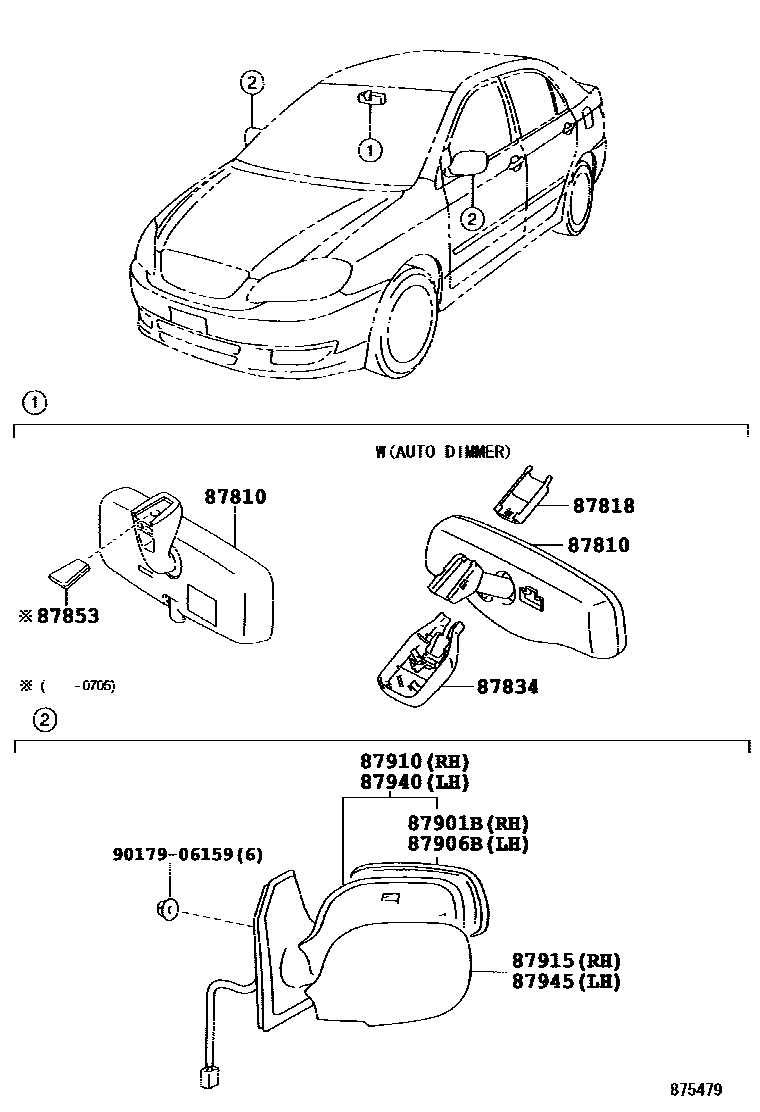

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02030 · 87810-05040 · 87810-05042 |
| 87818 | Interior rearview mirror cover | 87818-12010 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-12040 |
| 87853 | Interior rearview mirror base | 87853-02010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-02420 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-02420 |
| 87910 | Right exterior rearview mirror assembly | 87910-02420 |
| 87915 | Right exterior rearview mirror cover | 87915-02090 |
| 87940 | Left exterior rearview mirror assembly | 87940-02420 |
| 87945 | Left exterior rearview mirror cap | 87945-02090 |
