Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 4 PNC and OE references.

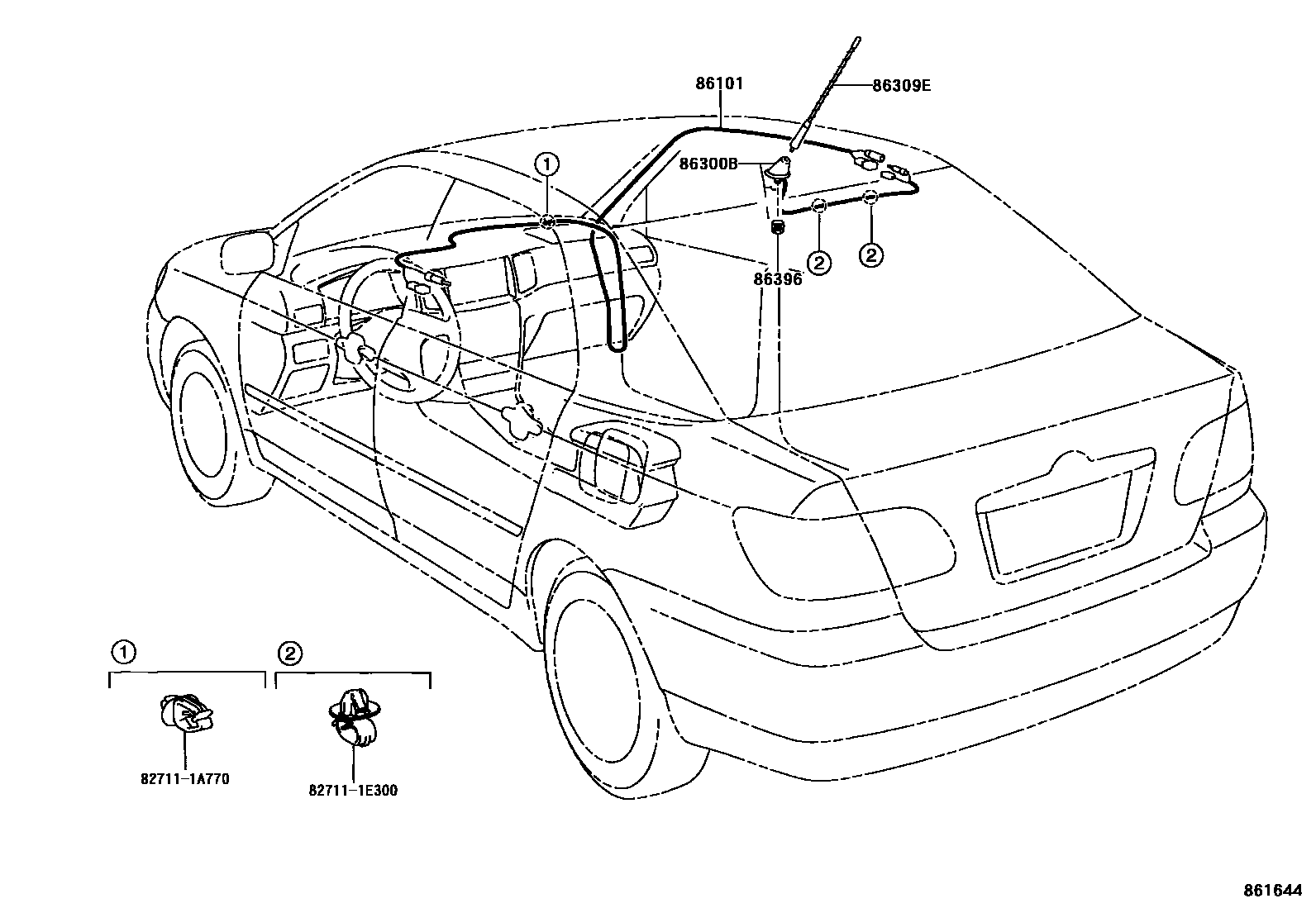

Toyota COROLLA antenna EPC diagram — 861644
antenna — 861644 (200205 – 999999)

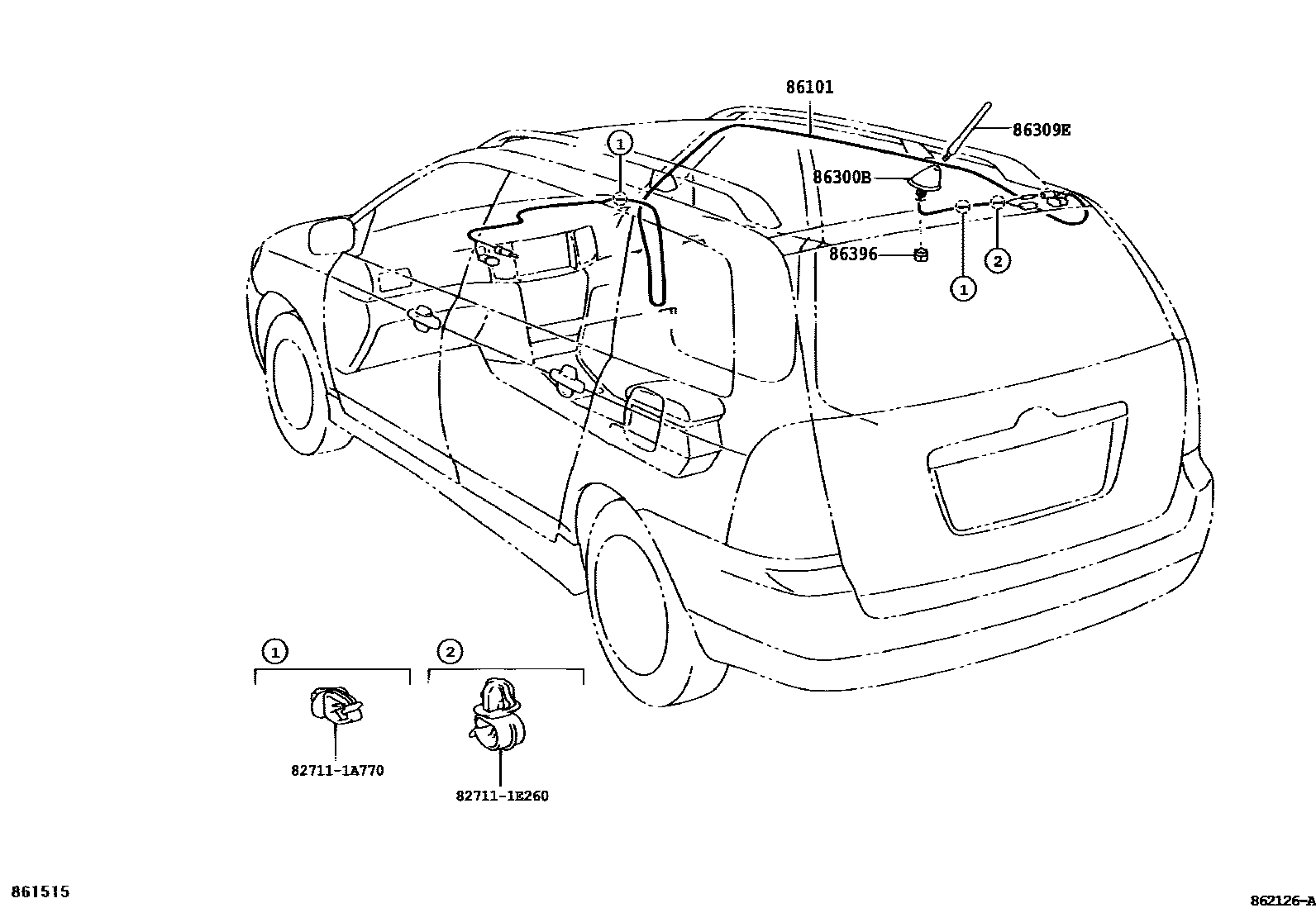

Toyota COROLLA antenna EPC diagram — 862126A
antenna — 862126A (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-02110 · 86101-02150
86300BNo. 1 amplifier antenna assembly86300-02160 · 86300-12790
86309ERoof antenna sub-assembly86309-02070 · 86309-13010
86396Antenna nut86396-02050 · 86396-12030
