Toyota COROLLA 扬声器 — Figure 8602

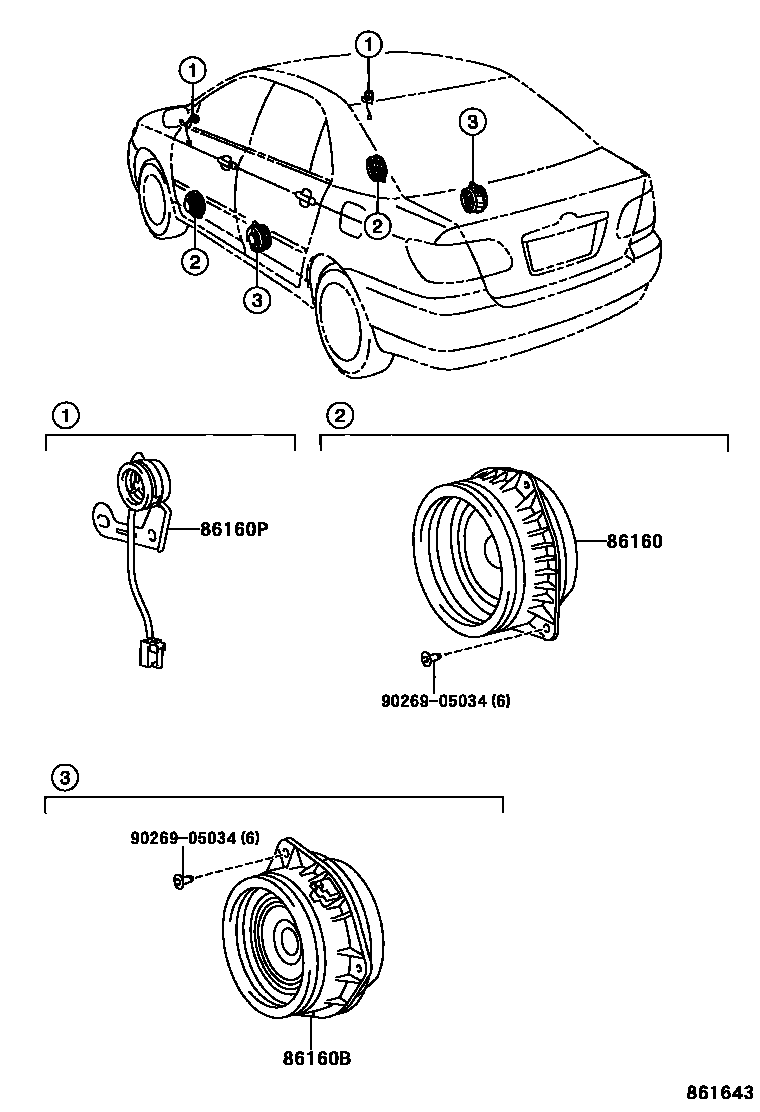

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-02530 · 86160-0K110 · 86160-44120 · 86160-68090 |
| 86160B | Rear speaker assembly | 86160-02560 · 86160-13080 · 86160-44130 |
| 86160P | No. 2 front speaker assembly | 86160-02540 · 86160-02550 |
