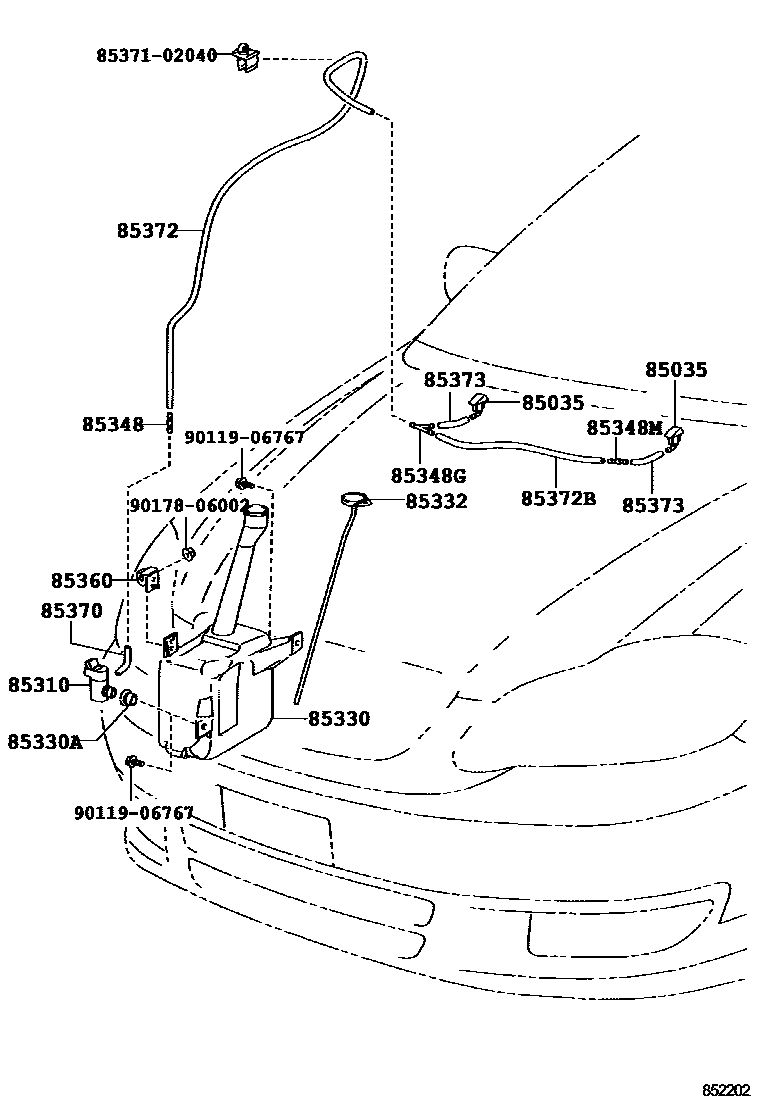

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-44010 |
| 85310 | Windshield washer motor and pump assembly | 85330-02010 · 85330-10290 |
| 85330 | Windshield washer fluid tank assembly | 85315-02190 |
| 85330A | Windshield washer fluid tank bushing | 85336-02130 |
| 85332 | Windshield washer fluid tank cap | 85316-02130 |
| 85348 | Windshield washer hose connector No. 1 | 85384-02020 |
| 85348G | Windshield washer hose connector No. 2 | 85384-02030 |
| 85348M | No. 3 windshield washer hose connector | 85384-02020 |
| 85360 | Windshield washer bracket assembly | 85360-02010 |
| 85370 | Windshield washer hose assembly | 85370-02150 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-02170 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 85374-02180 |
