Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

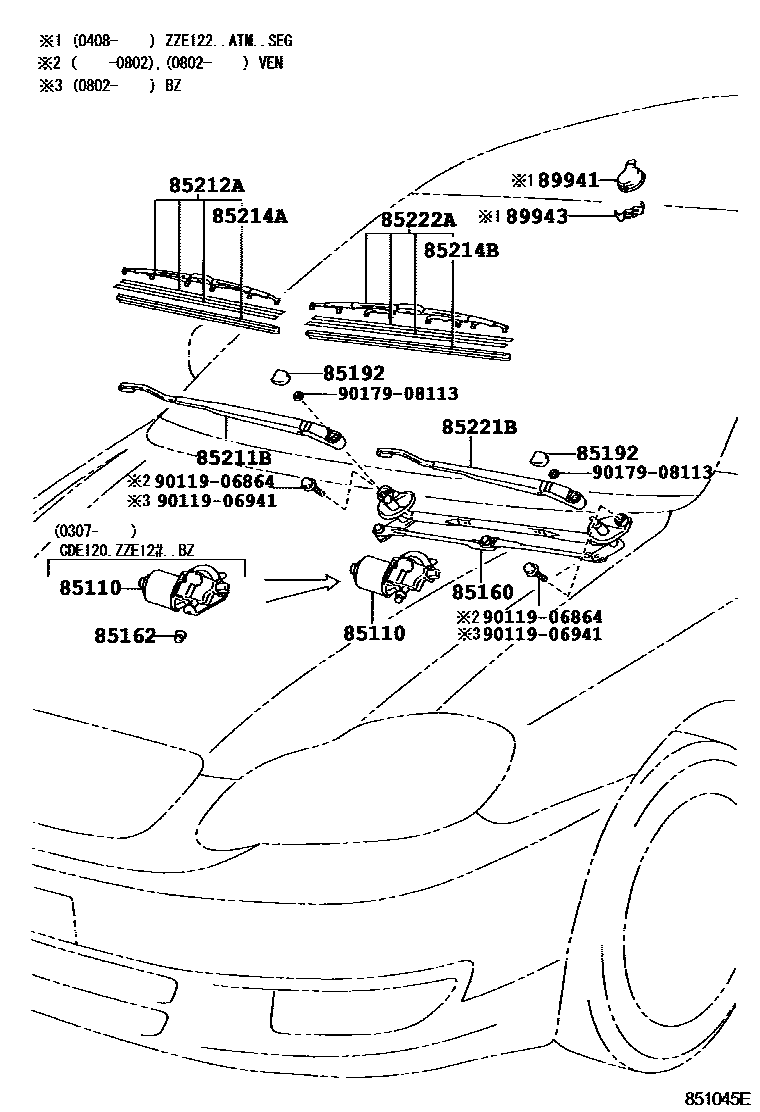

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02130 · 85110-1A040 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02110 · 85150-1A030 · 85150-1A070 |
| 85162 | No. 2 windshield wiper linkage pivot | 85162-02020 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85211B | Right front wiper arm | 85211-12380 · 85211-12440 |
| 85212A | Right front wiper blade | 85212-12340 · 85212-12370 · 85212-12371 · 85212-20420 · 85212-47020 · 85212-47021 |
| 85214A | Right wiper rubber strip | 85214-22420 · 85214-46010 · 85214-46011 · 85214-50060 · 85214-50061 · 85214-50130 |
| 85214B | Left wiper rubber strip | 85214-50100 · 85214-50120 |
| 85221B | Left front wiper arm | 85221-12350 |
| 85222A | Left front wiper blade | 85222-12750 |
| 89941 | rain sensor | 89941-05010 |
| 89943 | Rain sensor cover | 89943-05010 |
