Toyota COROLLA 防盗装置 — Figure 8424

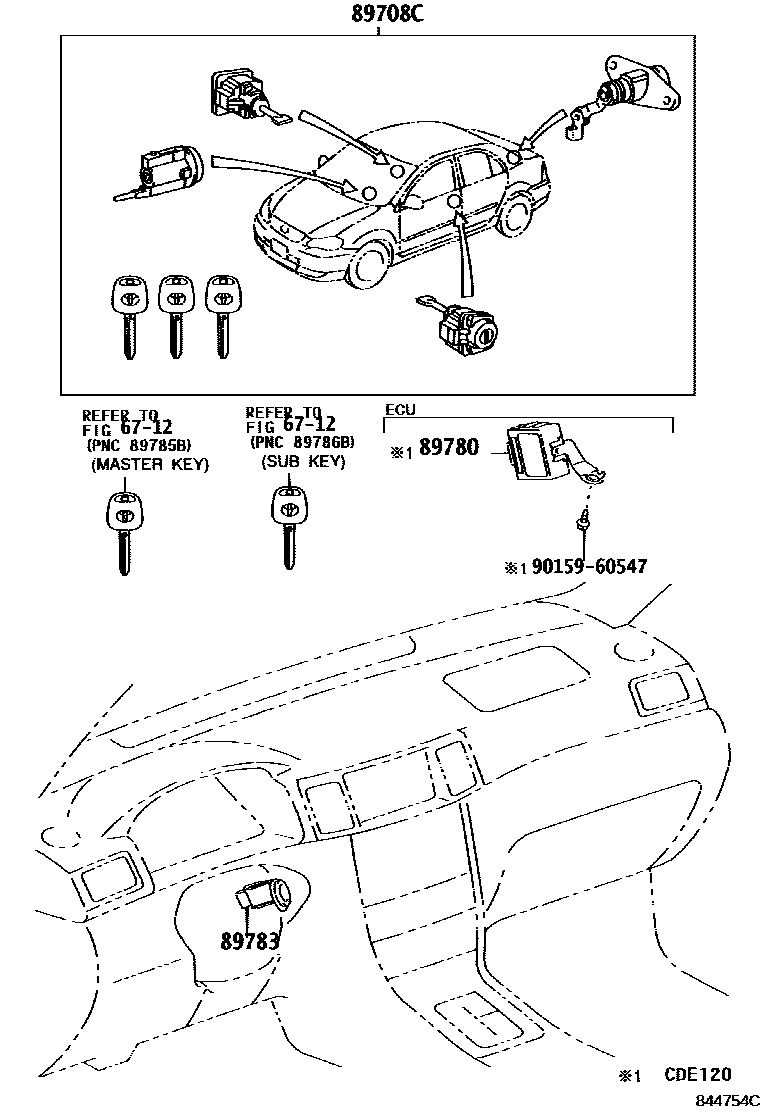

Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89708C | Key lock cylinder assembly with transceiver transmitter | 89708-02130 · 89708-02210 |
| 89780 | Transceiver key ECU assembly | 89780-12140 |
| 89783 | transceiver key amplifier | 89783-02020 |
