Toyota COROLLA 开关和继电器和ECU — Figure 8401

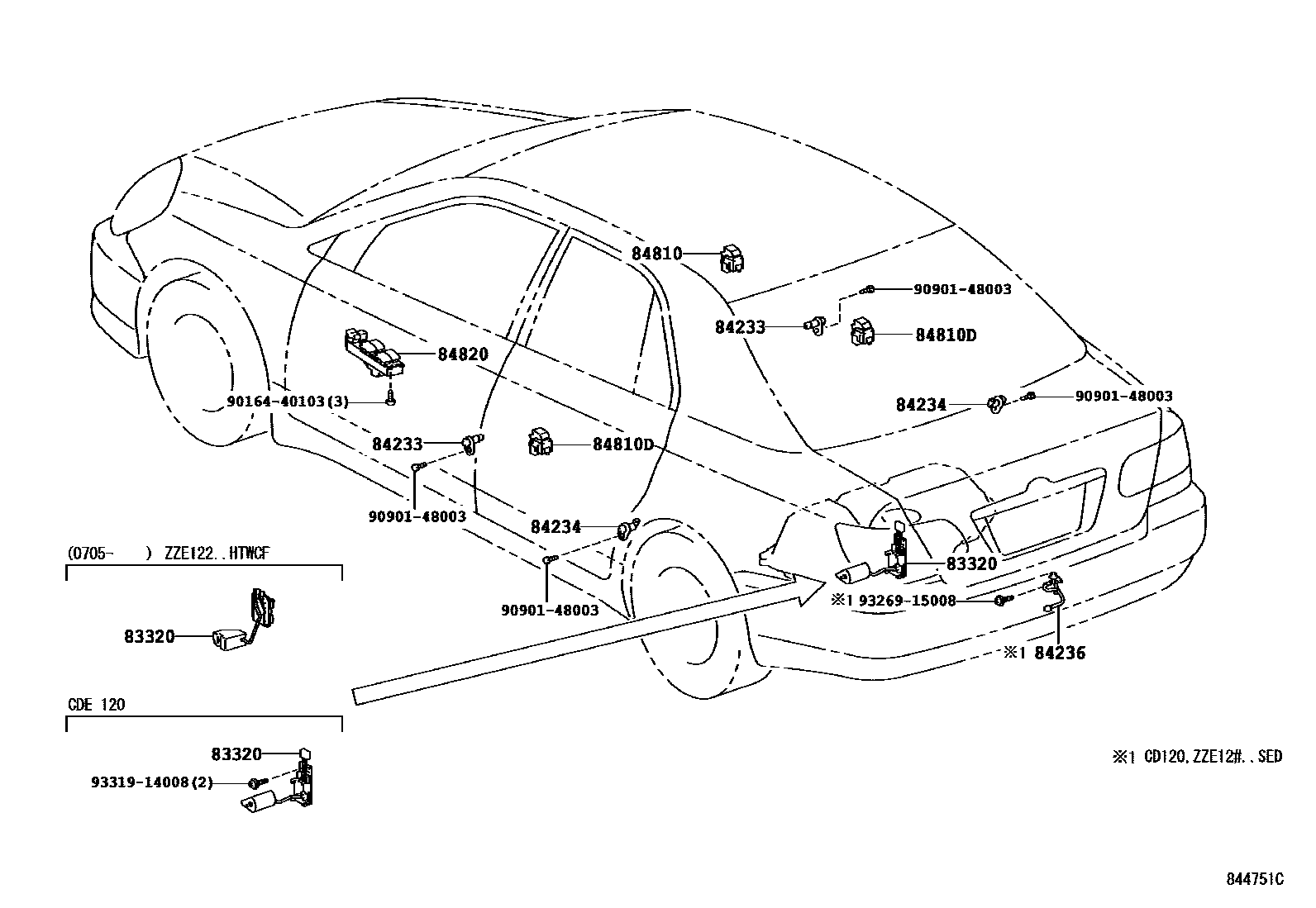

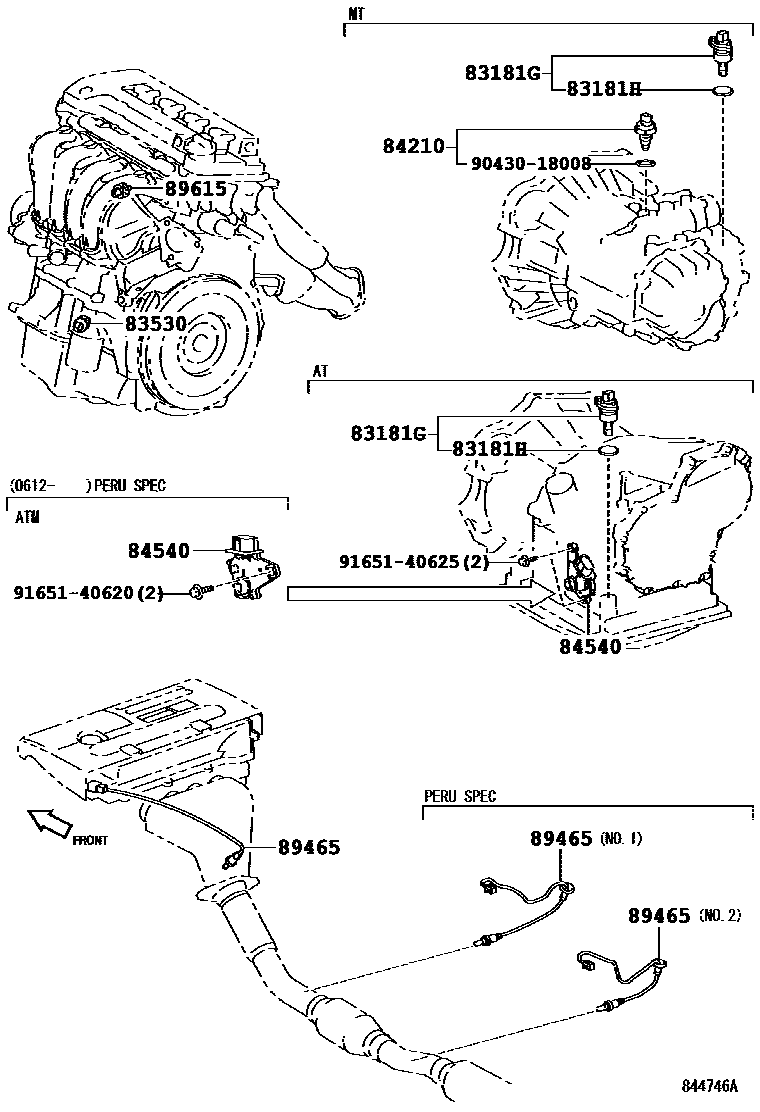

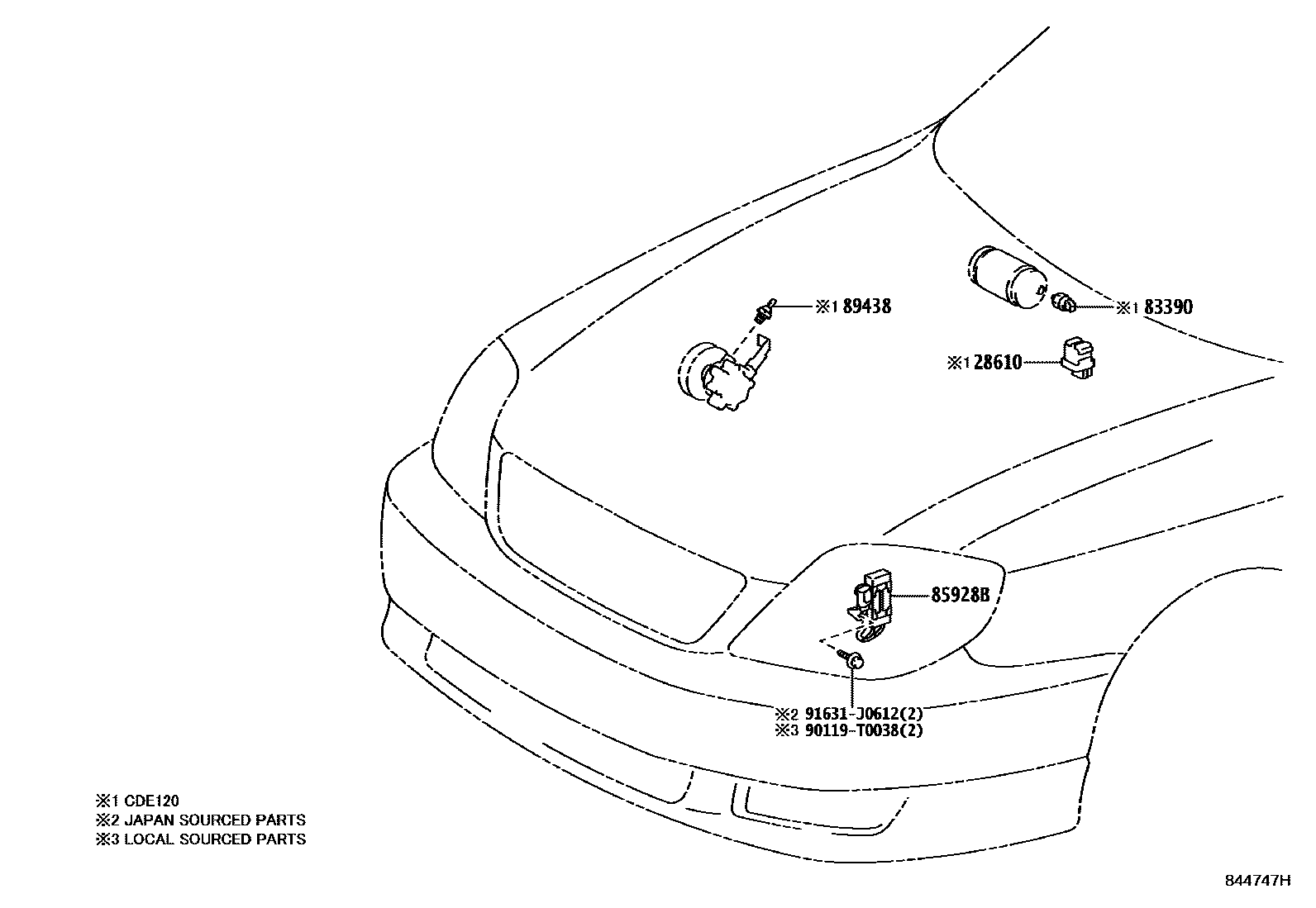

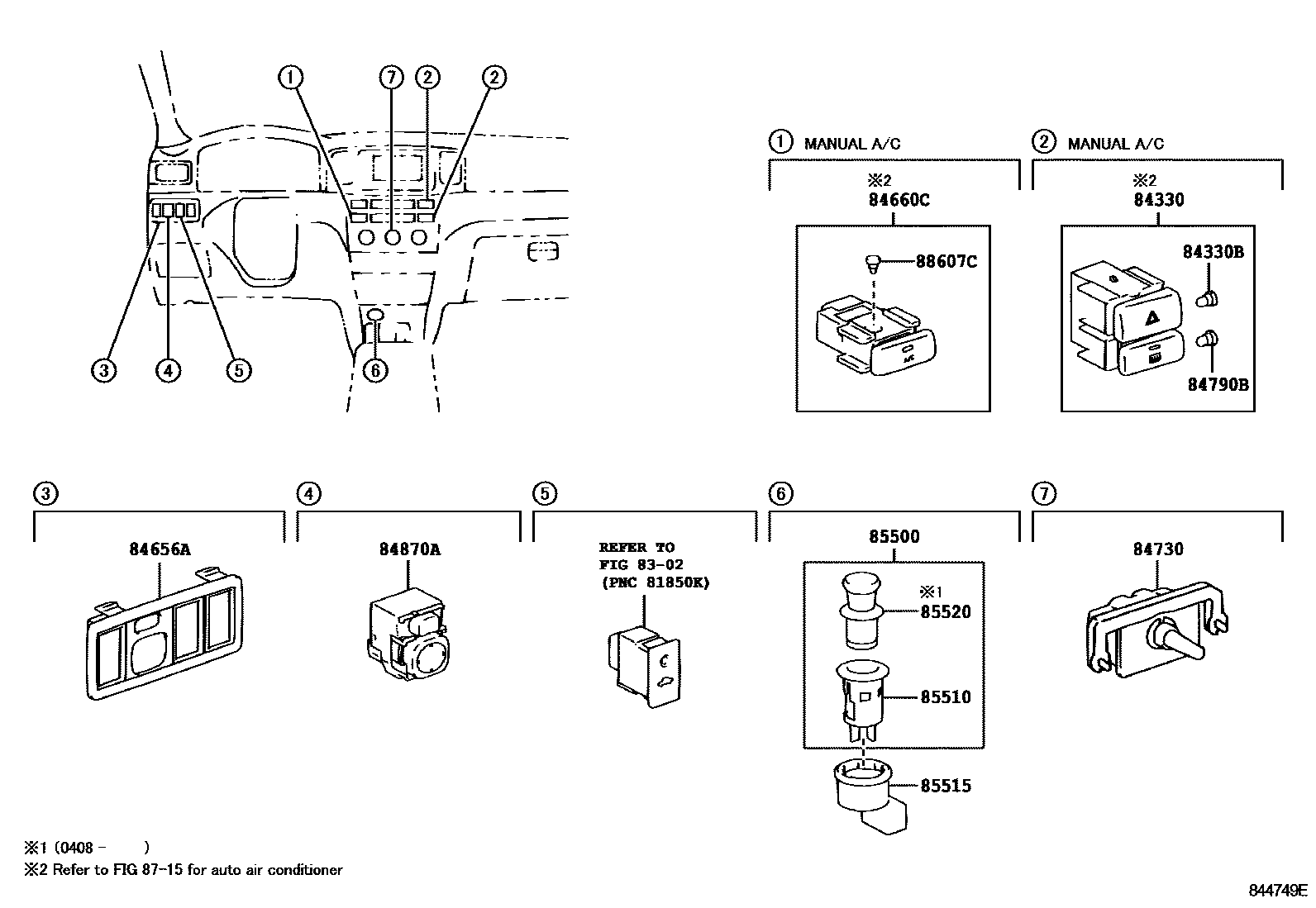

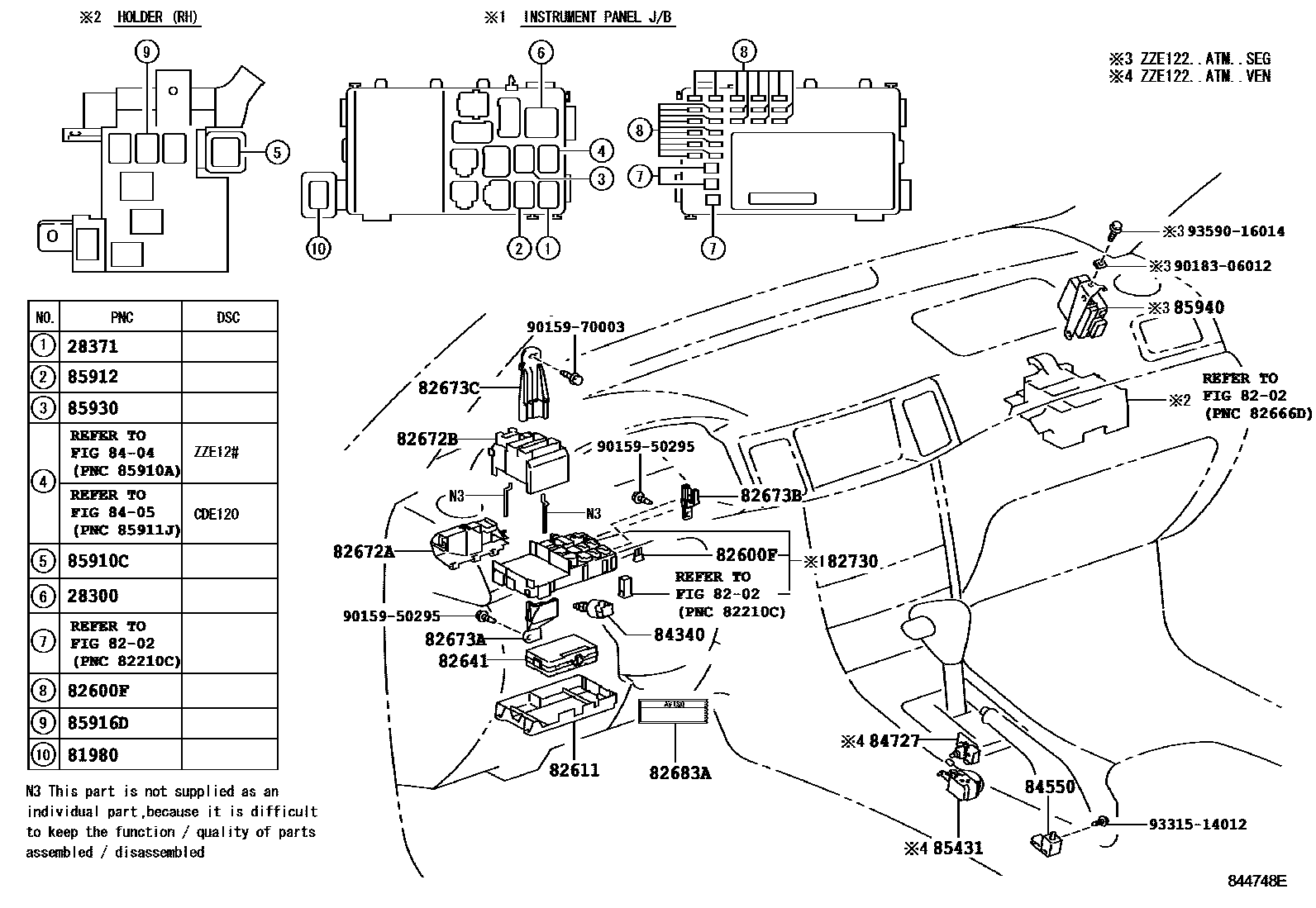

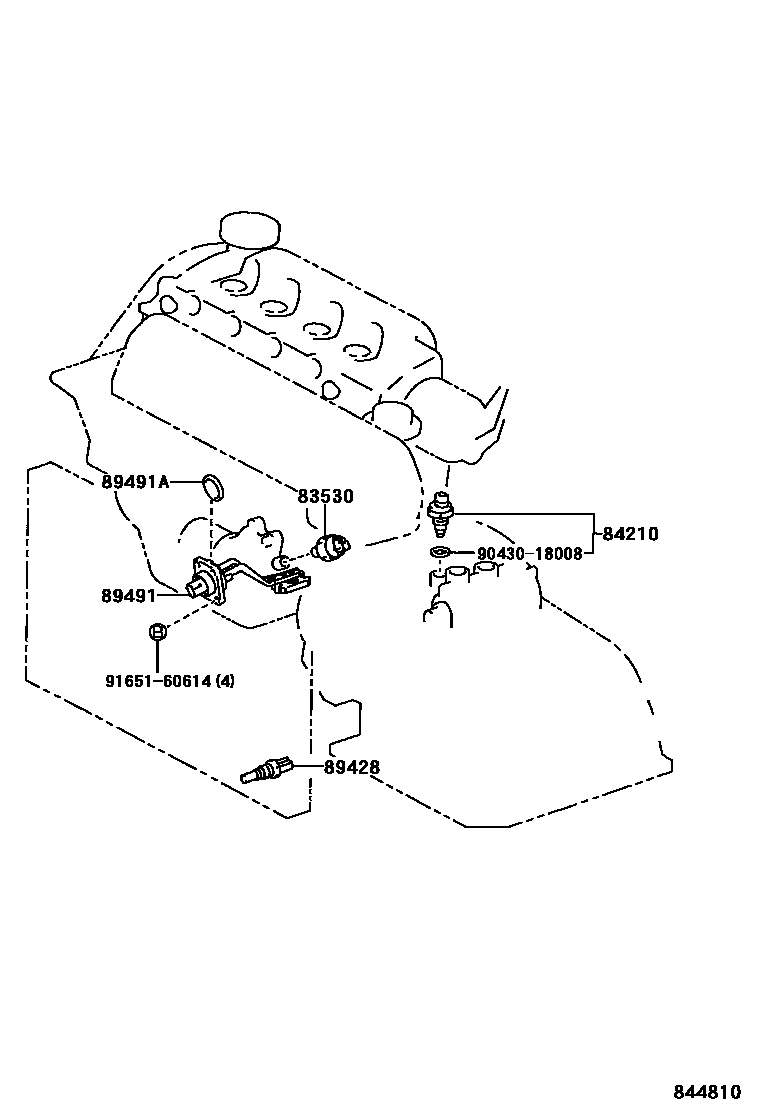

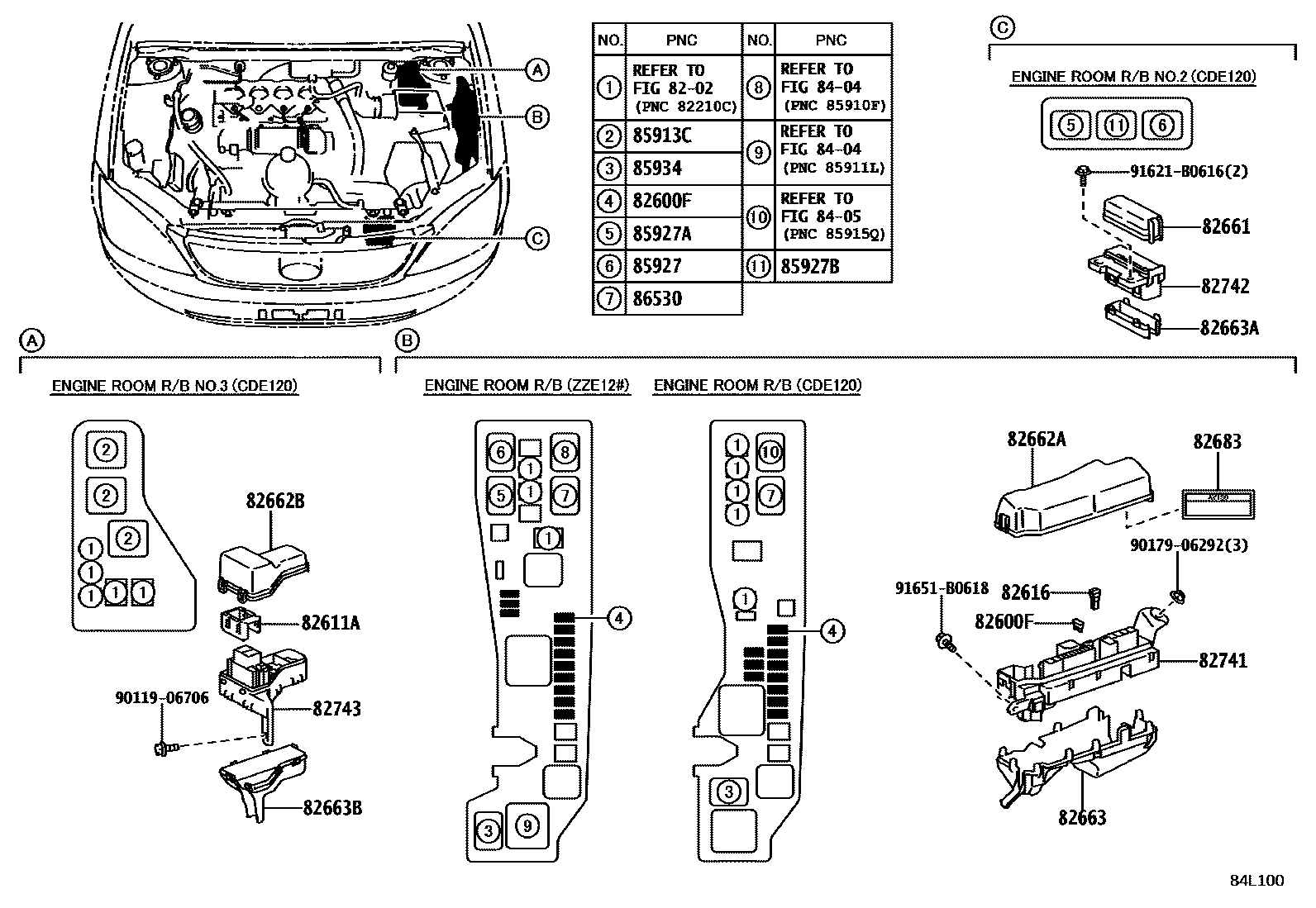

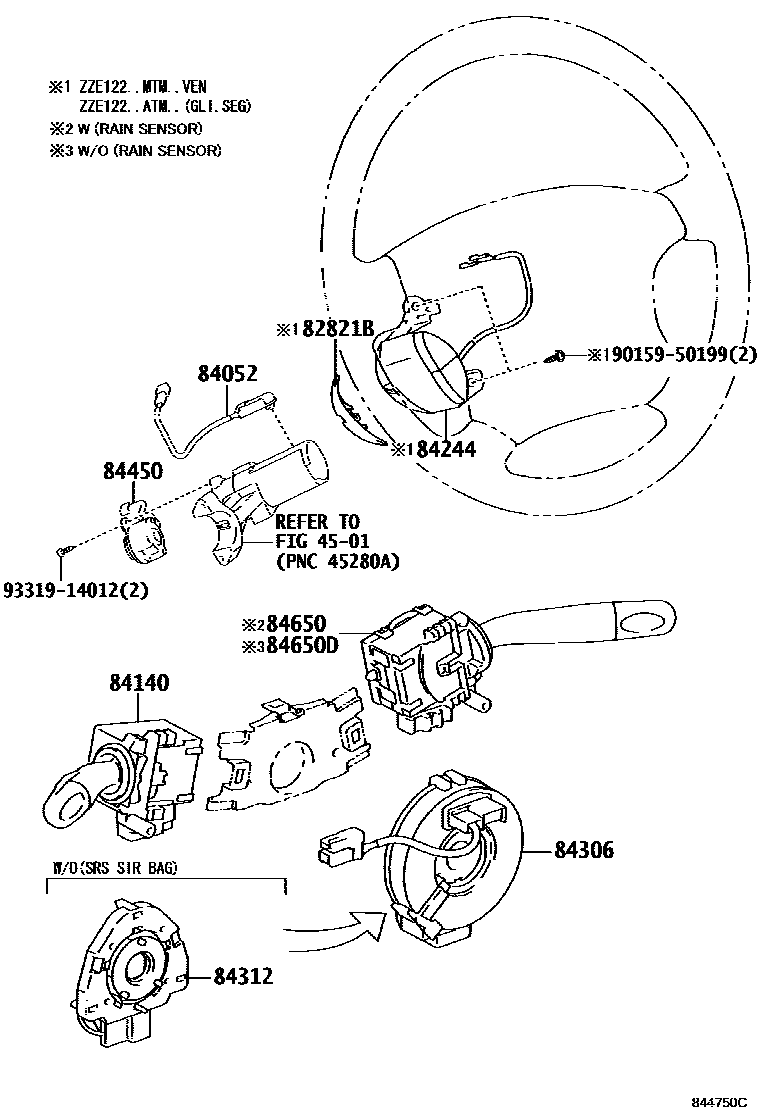

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 8 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 · 90080-87021 |
| 28371 | No. 1 ignition relay | 90080-87010 · 90080-87021 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-67010 |
| 81980 | Turn signal flasher relay assembly | 81980-02020 · 81980-50030 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 |
| 82611 | fuse box cover | 82611-12120 |
| 82611A | No. 2 fuse box cover | 82611-13010 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-02100 · 82641-12200 |
| 82661 | No. 1 relay box cover | 82662-12040 |
| 82662A | No. 1 relay box upper cover | 82662-12130 · 82662-12140 · 82662-12360 |
| 82662B | No. 2 relay box upper cover | 82662-12100 |
| 82663 | Relay box lower cover | 82663-12010 · 82663-12020 |
| 82663A | No. 2 relay box lower cover | 82663-12030 |
| 82663B | No. 3 relay box lower cover | 82663-13020 |
| 82672A | Junction box cover | 82672-12400 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-12050 |
| 82673B | Junction box bracket | 82673-12060 |
| 82673C | Junction box bracket | 82673-12080 |
| 82683 | Fuse box warning nameplate | 82683-02100 |
| 82683A | Fuse box warning nameplate | 82683-02100 |
| 82730 | Instrument panel junction box assembly | 82730-12150 |
| 82741 | Engine room relay box | 82741-12020 · 82741-12030 |
| 82742 | Engine room No. 2 relay box | 82741-12040 |
| 82743 | Engine room No. 3 relay box | 82741-13020 |
| 82821B | Connector cover | 82821-33200 |
| 83181G | speedometer sensor | 83181-12020 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-02110 · 83320-13170 · 83320-13180 |
| 83390 | Vacuum warning switch assembly | 83390-20180 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-02010 |
| 84140 | Headlight dimmer switch assembly | 84140-02230 · 84140-02240 · 84140-02250 · 84140-02260 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-02110 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02110 · 84231-60070 |
| 84236 | Door control light switch assembly (for trunk) | 84231-02100 · 84231-12130 |
| 84244 | Steering wheel trim cover switch | 84244-12020 |
| 84306 | Spiral cable sub-assembly | 84306-02100 · 84306-02160 · 84306-02170 · 84306-52020 · 84306-52041 · 84306-52050 |
| 84312 | Speaker contact piece | 84312-52010 |
| 84330 | Hazard warning signal switch assembly | 84332-02080 · 84332-02081 · 84332-02110 |
| 84330B | Hazard warning signal switch light bulb | 90010-01081 · 90011-11023 · 90011-11044 |
| 84340 | brake light switch assembly | 84340-02010 · 84340-02020 · 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-02020 |
| 84540 | Neutral start switch assembly | 84540-32110 · 84540-46010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-02010 |
| 84650 | Windshield wiper switch assembly | 84652-02370 · 84652-02380 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02320 · 84652-02330 · 84652-02360 · 84652-1A820 · 84652-52050 |
| 84656A | switch box | 84656-02140 |
| 84660C | Cooler switch | 84660-12210 |
| 84727 | Shift lock control switch | 84727-12090 |
| 84730 | Heater blower switch assembly | 84732-02050 |
| 84790B | Bulb (for rear window defogger switch) | 90010-01079 · 90011-11024 · 90011-11045 |
| 84810 | Electric window lift switch assembly | 84810-02060 |
| 84810D | Rear electric window lift switch assembly | 84810-02060 |
| 84820 | Electric window lift main switch assembly | 84820-02120 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02070 · 84872-52030 |
| 85431 | Shift lock solenoid valve | 85431-12060 |
| 85500 | Cigarette lighter assembly | 85500-02020 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-02010 |
| 85515 | Cigarette lighter frame bracket | 85515-02031 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-02010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85912 | defogger relay | 90080-87021 · 90987-02012 |
| 85913C | Heater relay No. 1 | 90987-02025 |
| 85916D | fog light relay | 90080-87021 · 90080-87027 · 90987-02012 · 90987-02027 |
| 85927 | cooling fan relay | 90080-87008 · 90080-87010 · 90080-87020 · 90080-87021 · 90080-87027 · 90987-02012 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 · 90080-87020 · 90080-87028 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 |
| 85928B | Cooling fan resistor | 85928-12010 |
| 85930 | Electric window relay assembly | 90080-87010 · 90080-87021 |
| 85934 | Electromagnetic clutch relay | 90080-87021 · 90987-02012 |
| 85940 | Windshield wiper relay assembly | 85940-02030 |
| 86530 | Speaker relay assembly | 90080-87021 · 90987-02012 |
| 88607C | Indicator light sub-assembly | 90010-03059 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-02130 · 89465-02360 · 89465-12620 · 89465-12640 · 89465-12700 |
| 89491 | Engine oil level sensor | 89491-44020 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89615 | knock control sensor | 89615-12120 |
