Toyota COROLLA 仪表 — Figure 8301

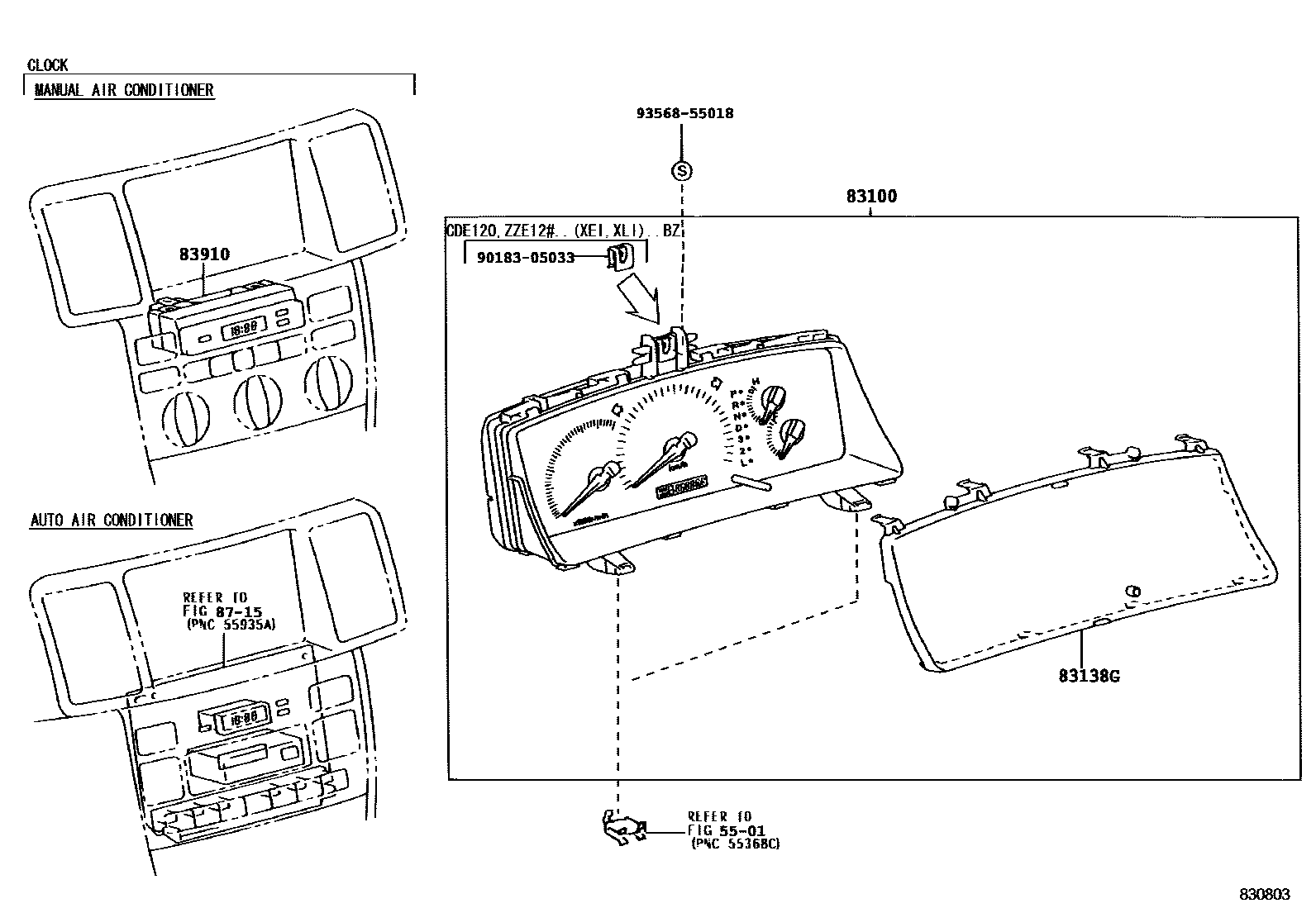

Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-02870 · 83800-02880 · 83800-02890 · 83800-02A70 · 83800-02A80 · 83800-02A90 · 83800-02B00 · 83800-02B10 · 83800-02E80 · 83800-02E90 · 83800-02F50 · 83800-02F60 · 83800-02G00 · 83800-02U70 · 83800-0Z010 · 83800-0Z020 · 83800-0Z030 · 83800-0Z040 · 83800-0Z050 |
| 83138G | Instrument cluster glass | 83852-02550 · 83852-02590 · 83852-02A70 |
| 83910 | clock assembly | 83910-02090 |
