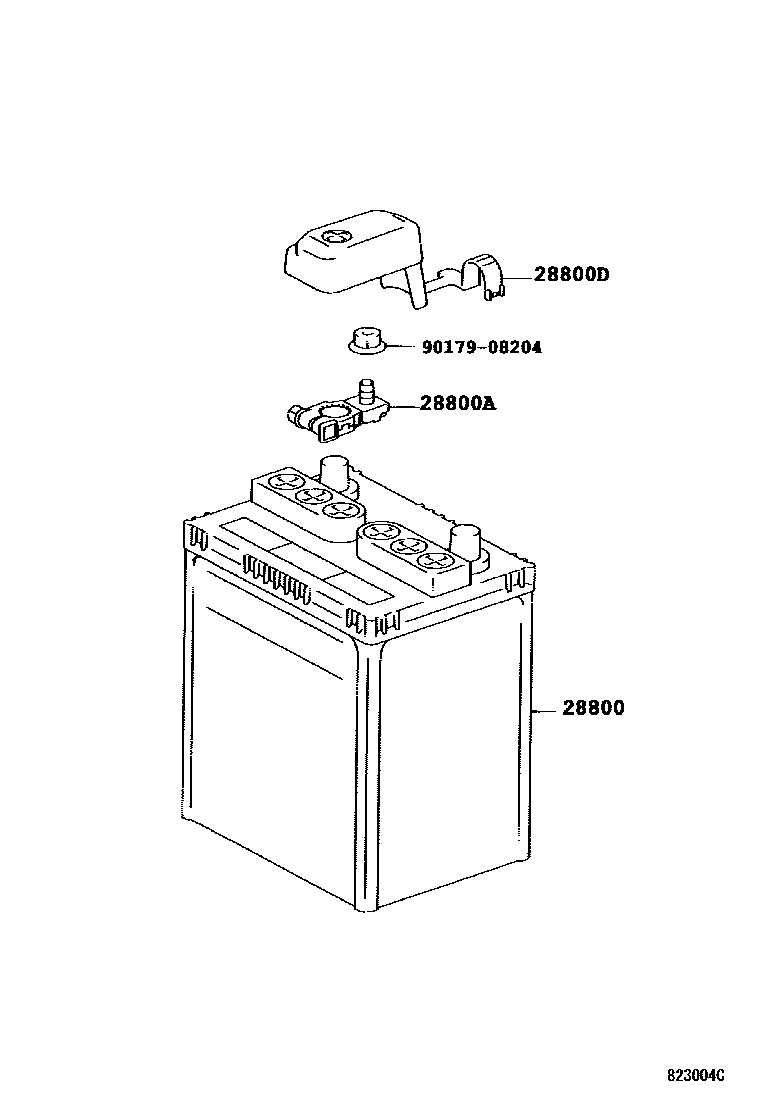

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0D100 · 28800-0D110 · 28800-0D270 · 28800-31122 · 28800-72020 |
| 28800A | battery positive terminal | 90982-05056 · 90982-05060 |
| 28800D | Connector cover (for battery terminals) | 82821-12500 · 82821-52060 |
